MLA System
USER GUIDE
MLA System
User Guide V2
.1
155
…………

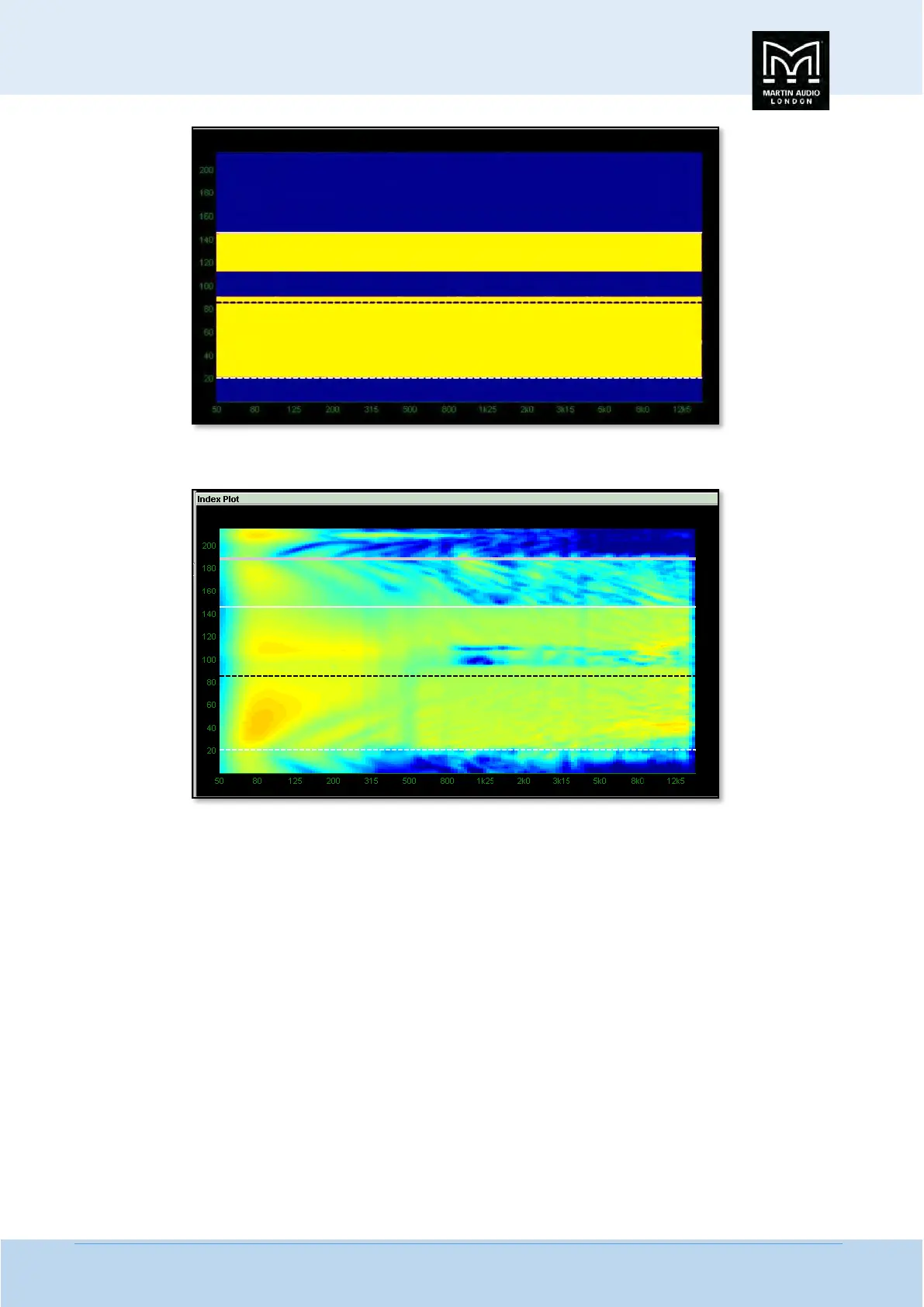

Here we have a real world optimisation with a 10 box syste
m;
-
And to demonstrate how close the system can get to the
perfect cov
erage, here is the same venue with an array co
nsisting of 16
MLA plus 1 MLD optimised to obtain a front to back differen
tial of 0dB
-
exactly the same spl everyw
here. The audience target
has been given
maximum prio
rity ignorin
g non
-
audience and hard avoid areas;
-
154
156
