is flown close to it such as lighting or scenery. The lower trim point is also displayed so the array can be accurately flown to the
correct height. It can be measured either by the time-honoured method of attaching a tape measure or using a laser measure
such as the Leica Disto D8. The green cross with dotted lines shows the centre of gravity of the array.

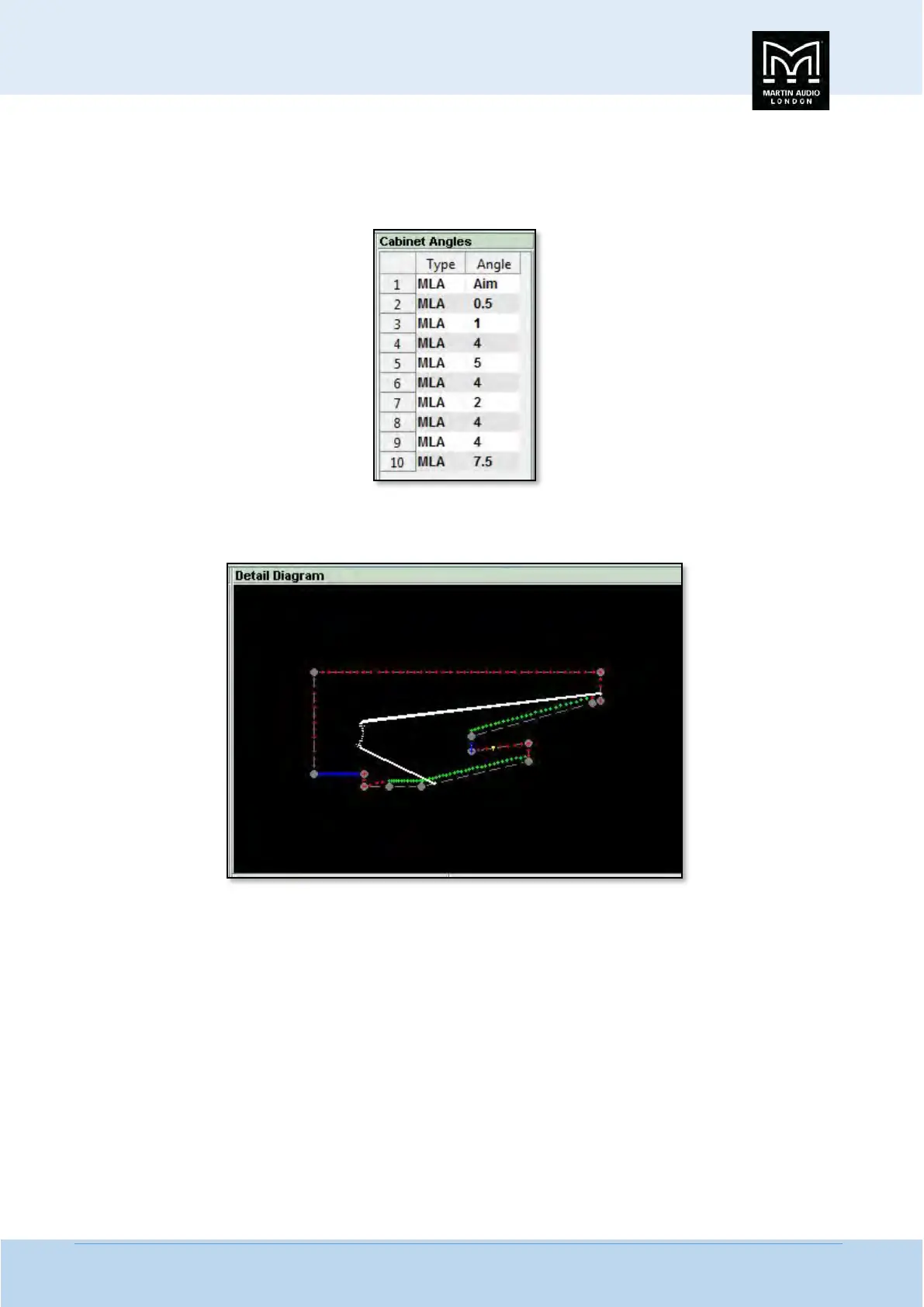

Next is a list of the splay angles;-
This gives you all the information you need to set the intercabinet angles when you are flying the system.
There is a thumbnail diagram of the entire venue which will update as you make changes to the rigging;-
Note that the examples shown are for an array which is possible to fly. If the optimisation creates an array that is impossible to
realise within the capabilities of the flying frame the array diagram will show a warning flag as shown here;-
