MLA System USER GUIDE
MLA System User Guide V2.1 200
Note that the array height displayed is the height from the ground NOT above the MSX. You can see that the MSX is at 1.8m,
perhaps on a stage so the top trim of the array is at 4.13 – 1.8 = 2.33m above the surface on which the MSX is placed.

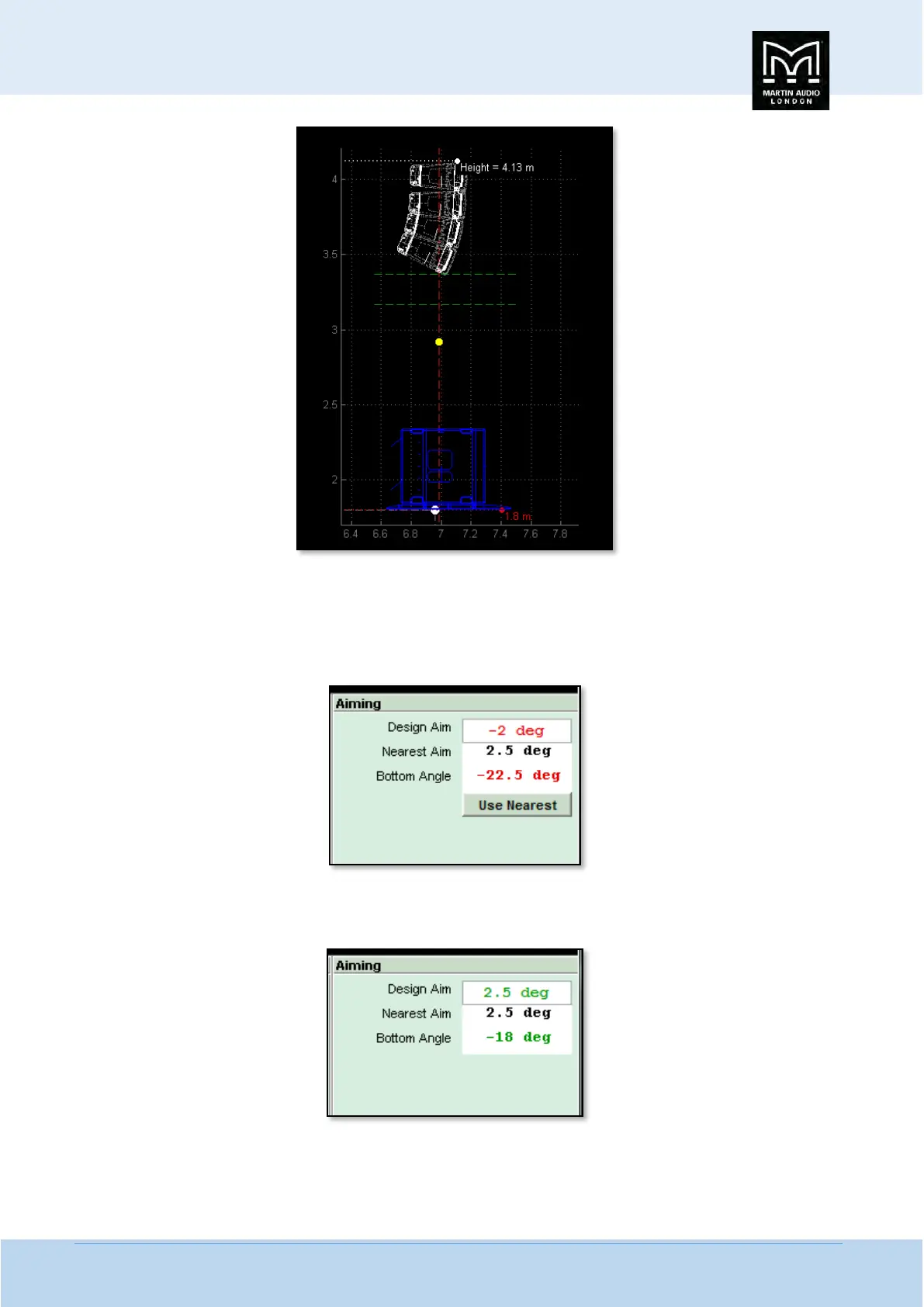

The next issue is the array angle. The Universal bracket allows for a tilt from 0 to -18° (18° down) if the optimisation has created
an angle greater than -18° the angle will be displayed in red with the option to 'Use Nearest';-
By clicking 'Use Nearest' the angle will revert to -18° the array diagram will update and the design aim will update and turn
green;-
The same applies in the unlikely event of the optimisation arriving at an array angle that requires the bottom cabinet to have an
angle greater than 0°, an up-tilt in other words;-
