MLA System USER GUIDE
MLA System User Guide V2.1 206

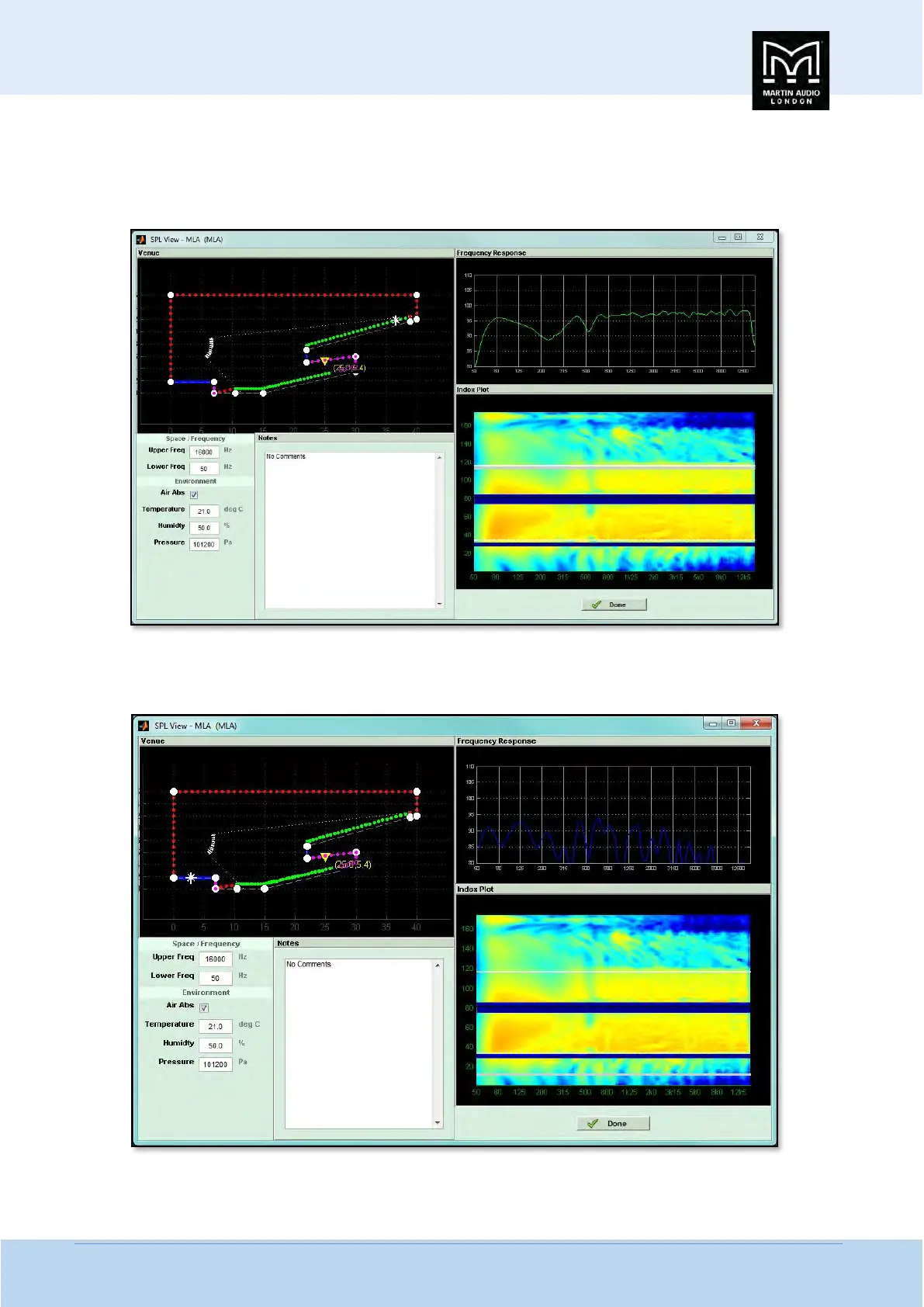

moves on the Venue diagram and the frequency response plot updates instantaneously. If you are using a mouse with a scroll
wheel you can change the vertical axis on the frequency response plot to reposition the plot.
The performance looks very good, a slight low frequency lift which we would expect as the lower the frequency the more difficult
it is to optimise, the response form around 600Hz and above is extremely flat. Let’s take a look at the results in other positions;-
Here we see the response right at the back of the balcony which is still quite astonishingly flat. We can be very satisfied that we
have achieved an extremely good even coverage for all audience members in this venue. It is also worth taking a look at how
well we have avoided the stage;-
