MLA System USER GUIDE
MLA System User Guide V2.1 239

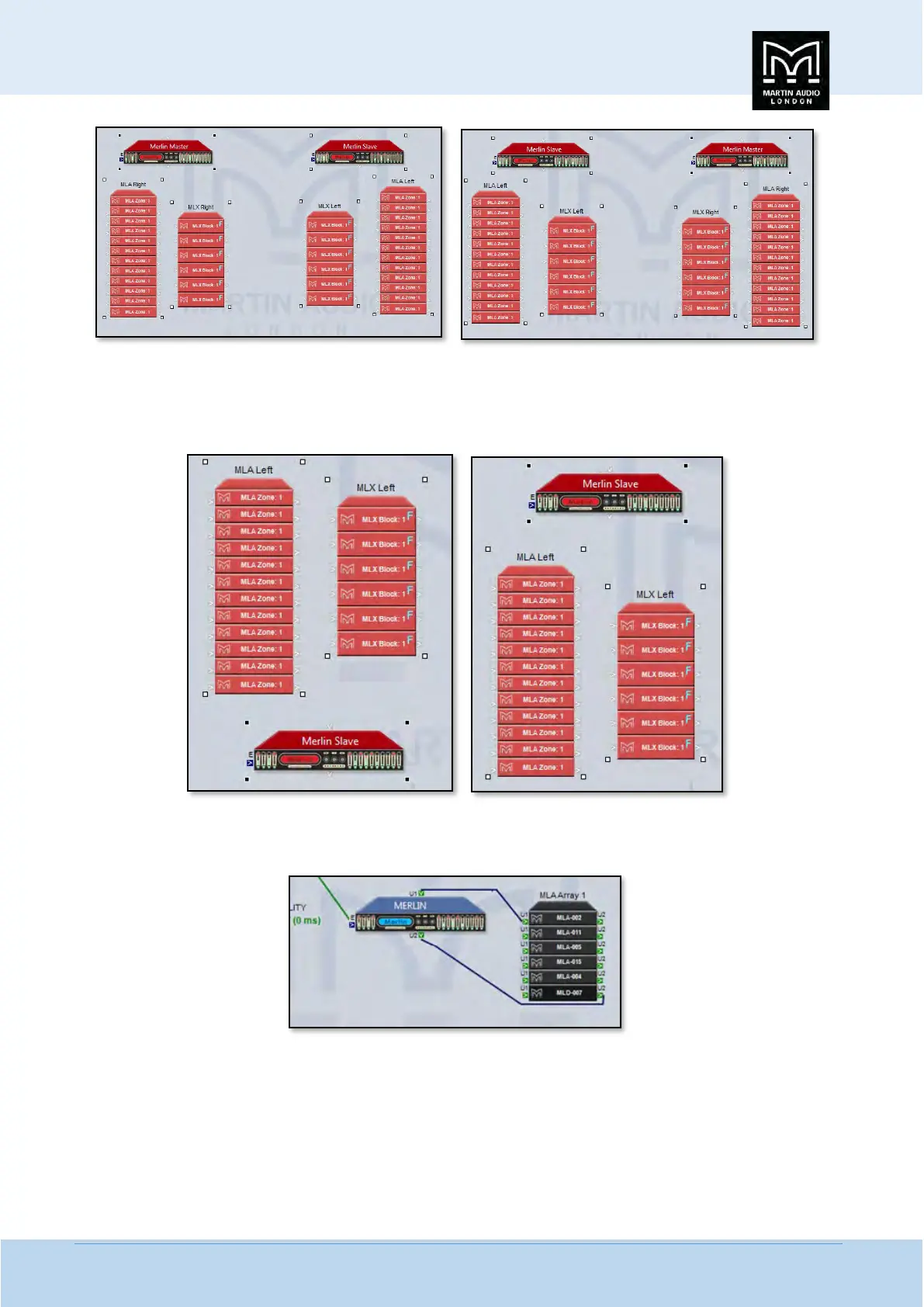

The left hand shot shows a system drawn with the left and right arrays placed on the wrong sides, the right shot has been
corrected with the reverse order horizontally button.
The fifth button swaps the order of all selected items in the vertical plane;-
The third button applies only to the Merlin. When a system is discovered on line all U-Net connections are shown from the Merlin
to all arrays;-
The U-Net ports on the Merlin are on the top and bottom of the Merlin icon, in most cases this allows Vu-Net to draw the system
connections neatly as in the above example but they may be instances where the position of the arrays and complexity of the
system means that the network connections cross and the system diagram looks untidy;-
