MLA System USER GUIDE
MLA System User Guide V2.1 254

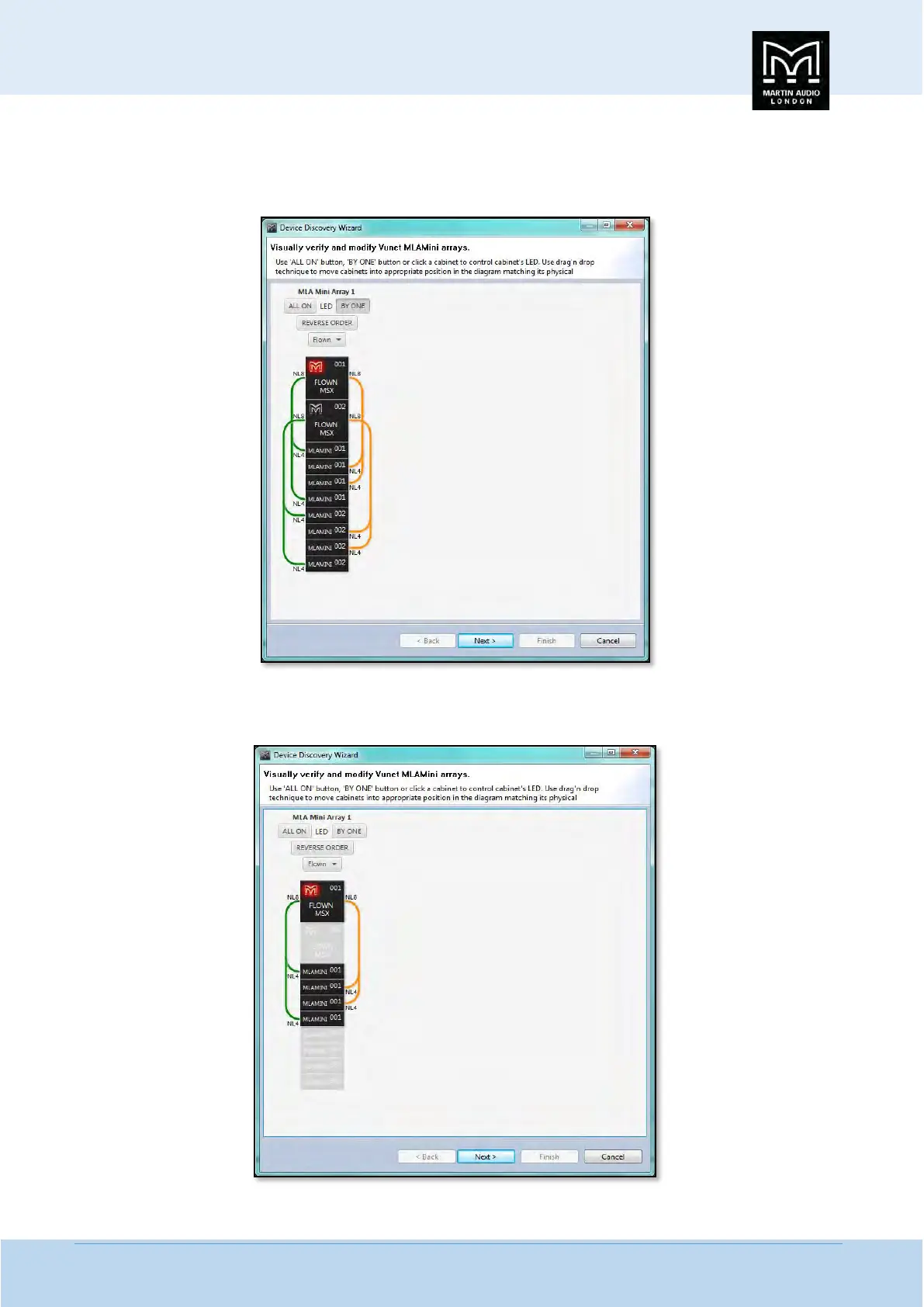

Once you have selected the appropriate deployment you can check the arrays by flashing the LED's on the front of the MSX as
with MLA and MLA Compact cabinets. You can select 'ALL ON' to illuminate every cabinet in an array useful for identifying which
array is which where two or more are in use, and 'BY ONE' which will flash all MSX in an array sequentially so you can check that
they are in the correct order;-
If they are not they can be drag and dropped into the correct positions until the Vu-Net flashing sequence matches the real-
world cabinets. Clicking on one MSX will grey out all others until it has been dragged and dropped to the desired position;-
