MLA System USER GUIDE
MLA System User Guide V2.1 282

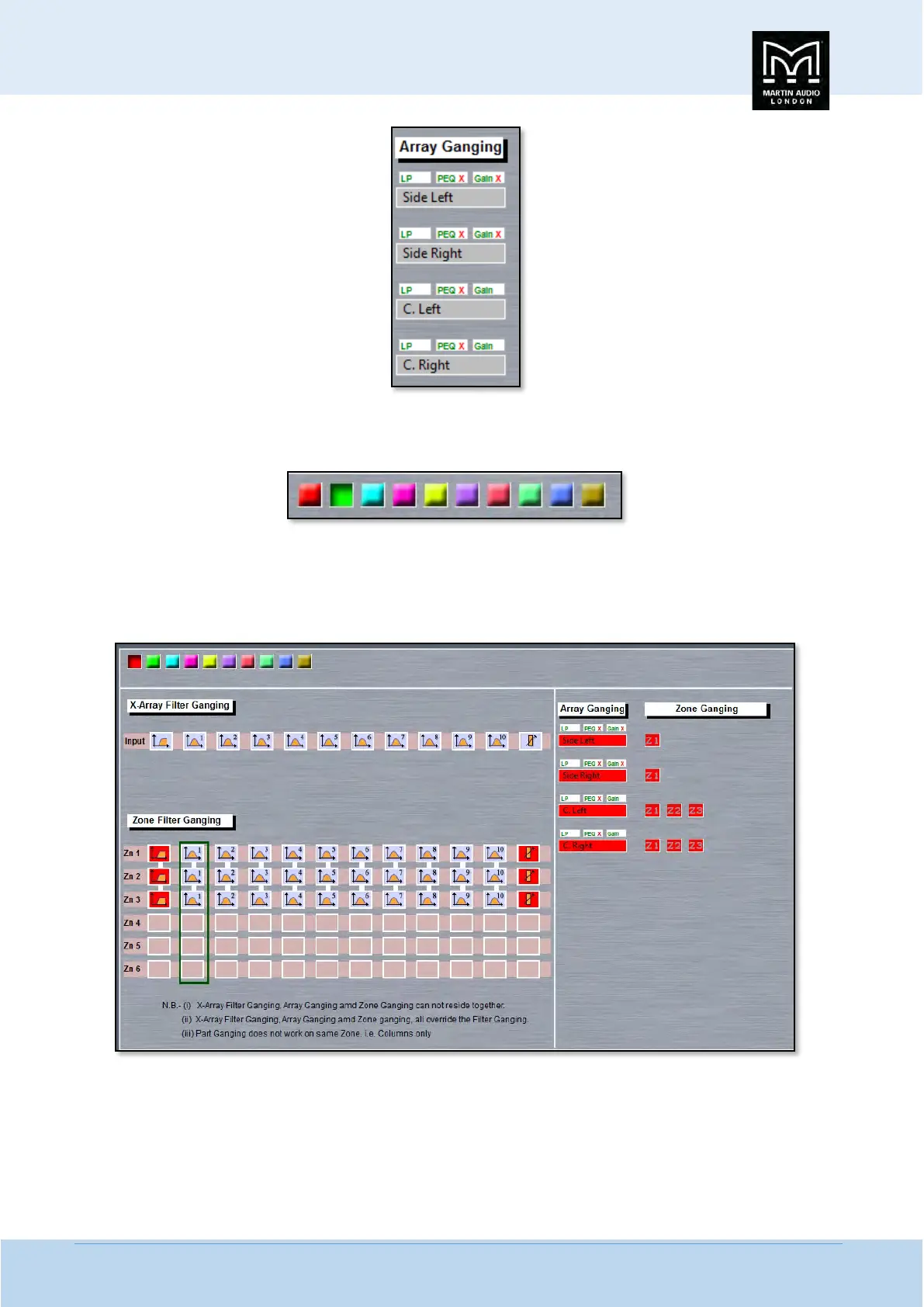

There are up to ten independent gangs available for each ganging variation. These are selected using the coloured squares at the
top left of the ganging window;-
If for example we want to gang the Low pass filters on all four of the above arrays, with gains ganged on the main left and right
arrays we simply click on one of the squares to select a gang group, let’s say group one which is red. Then click on the Array name
boxes they are now all ganged. Note that as the entire array is ganged, all zones are also ganged. We have however excluded the
PEQ therefore in the Zone Filter section the PEQ’s are not red;-
If we click on the tab for one of the side hangs, the ganging tab looks similar but as we also excluded the gain, that is also not
coloured red to show that it is not part of the ganging;-
