MLA System USER GUIDE
MLA System User Guide V2.1 294

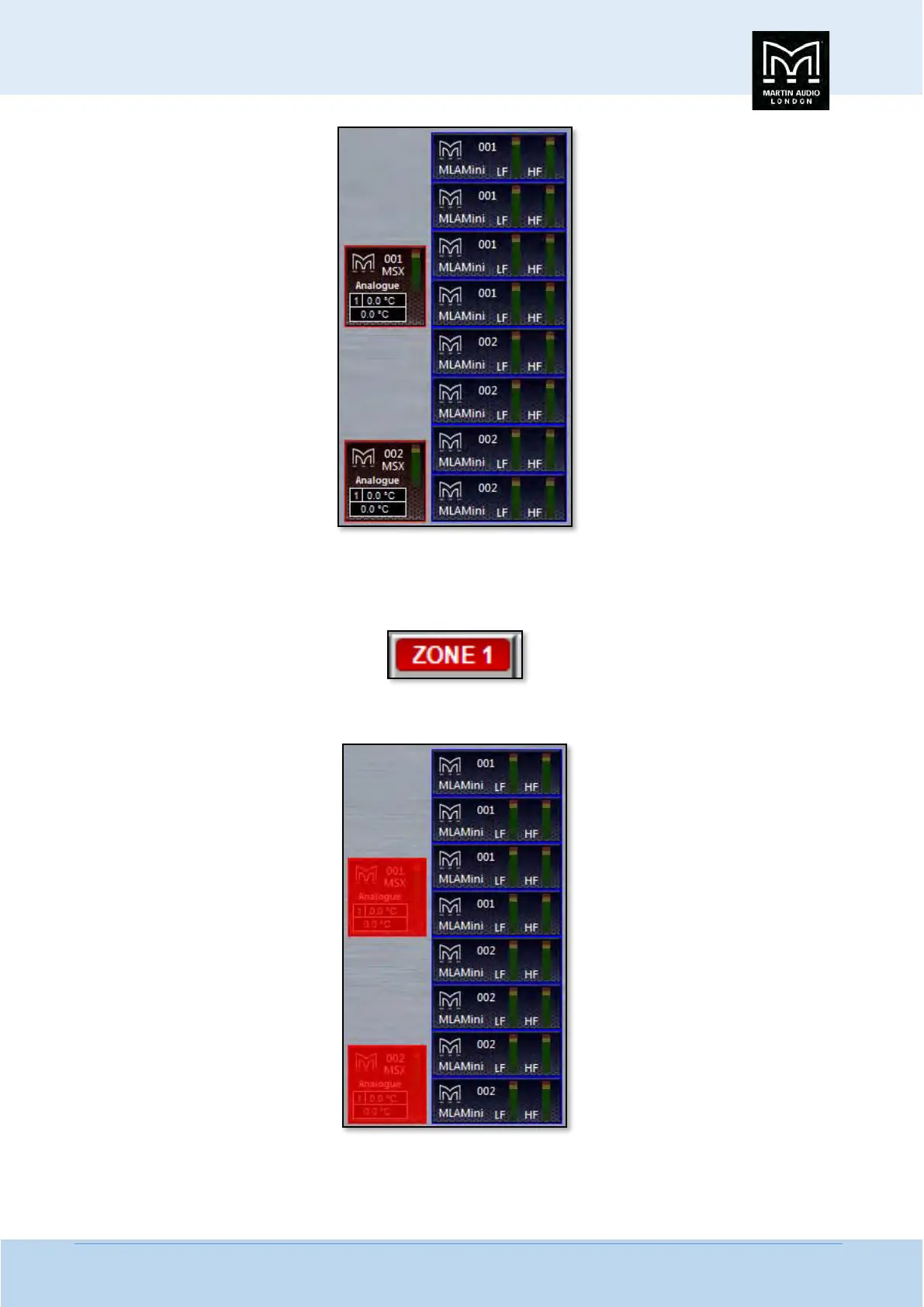

By default, MSX are assigned to zone 1 and all MLA Mini to zone 2. Reassigning zones is extremely simple. In our example we will
keep the MSX assigned to zone 1, the top four MLA Mini to zone 2, the next two to zone 3 and the final two to zone 4. First click
on the Zone 1 label;-
You will notice All components that are already part of the zone will turn red;-
Click the Zone 1 button a second time and the two MSX will return to the normal view. Click on Zone 2 and you will see all of the
MLA Mini turn blue;-
