MLA System USER GUIDE
MLA System User Guide V2.1 297

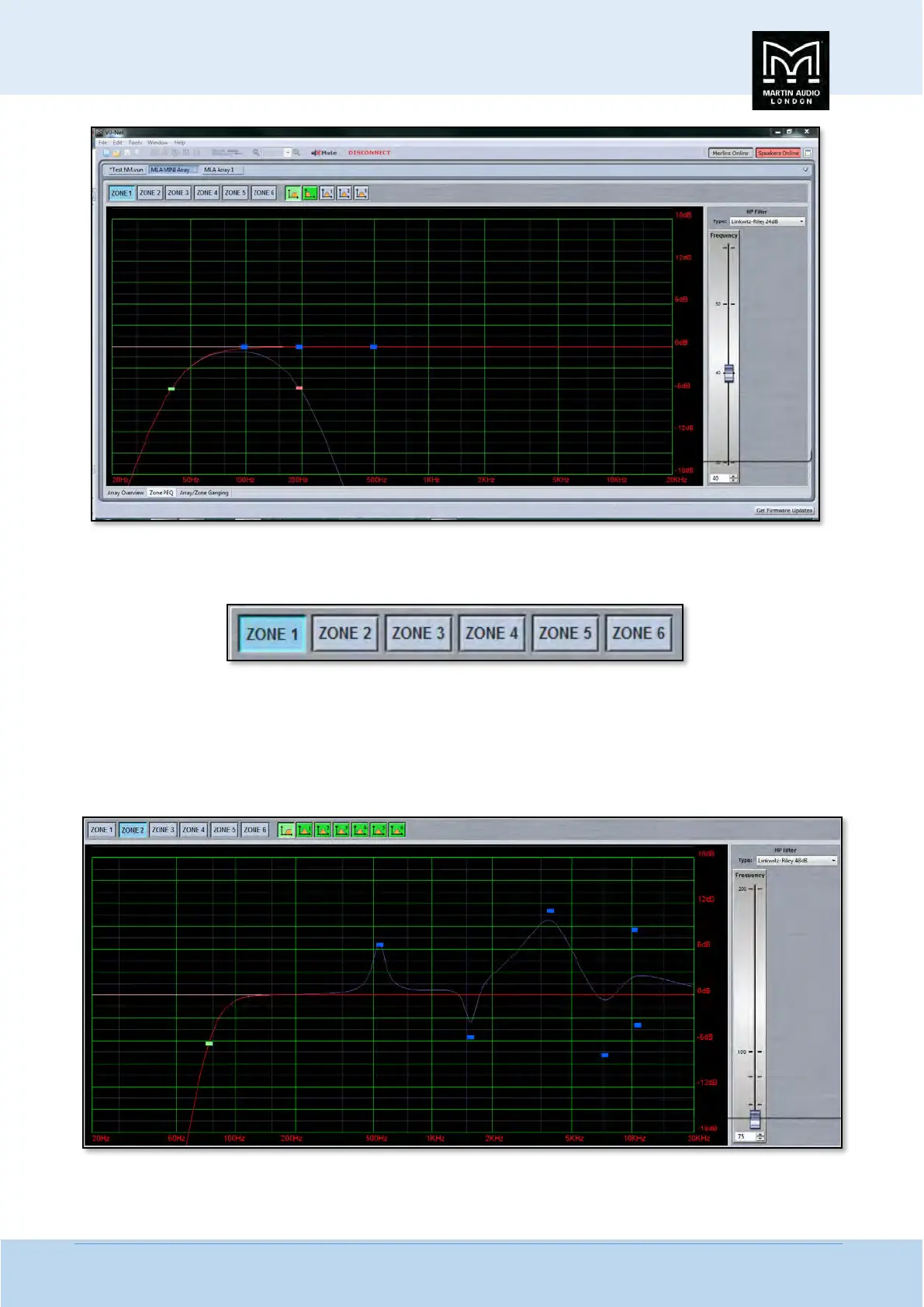

It is a slightly simplified version of the PEQ Tab that is available in all other array components. The six available zones can be
selected by using the Zone buttons at the top of the window;-
Zone 1 is always the MSX sub so the EQ bands available are slightly different. There is a high pass filter, low pass filter and three
bands of PEQ all of which may be adjusted in the same way as the PEQ in all other array types; grabbing the points on the graph,
adjusting the controls in the EQ panel on the right or directly entering the required values in the windows at the bottom of the
EQ panel.
Zones 2 to 6 all have a high pass filter and six bands of PEQ;-
