As with MLA, MLD and MLA Compact you will have the option to select a device and route from any of the available inputs or
outputs on the network. This should be left un-selected until the feature is available in a future firmware upgrade.
To return to inputs from the rear panel XLR’s which are bought out on the Merlin patch panel on the MLA Master and slave racks,
you should ensure that the Back Panel option is selected. From there you can also select either Analogue or AES3 inputs;-
Note that selecting AES for either inputs or outputs changes how physical connections are made to the Merlin see the chapter
on the Merlin for more details.

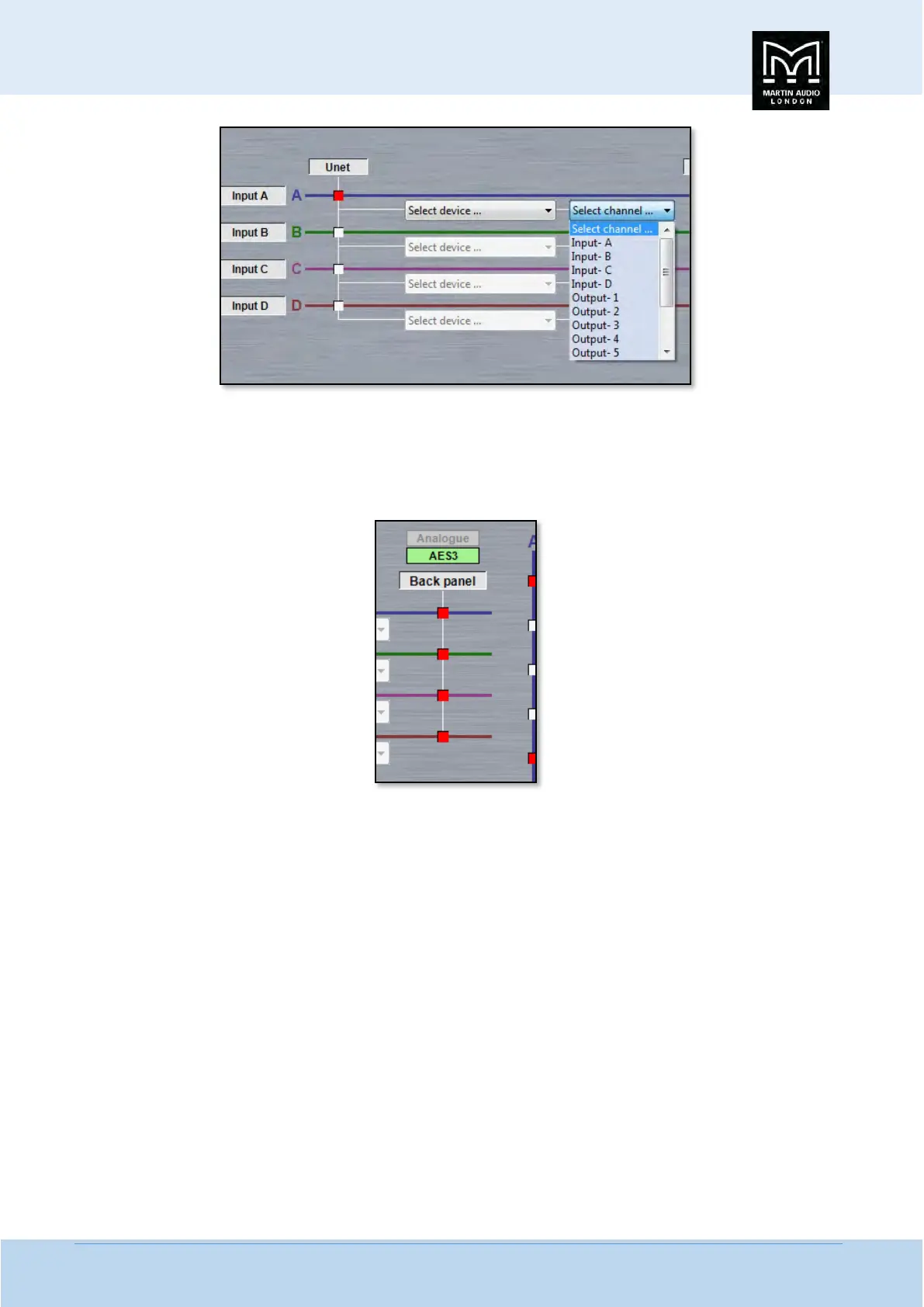

The routing matrix is shown with the inputs forming vertical columns and the outputs as horizontal lines. Each node can be
selected to route any input to any or all output. This is entirely freely configurable, there are no restrictions on where or how
many outputs and of the inputs are routed to. Note that any changes to the routing will remove any delay settings that have
been configured for any of the output channels;-
