MLA System USER GUIDE
MLA System User Guide V2.1 350

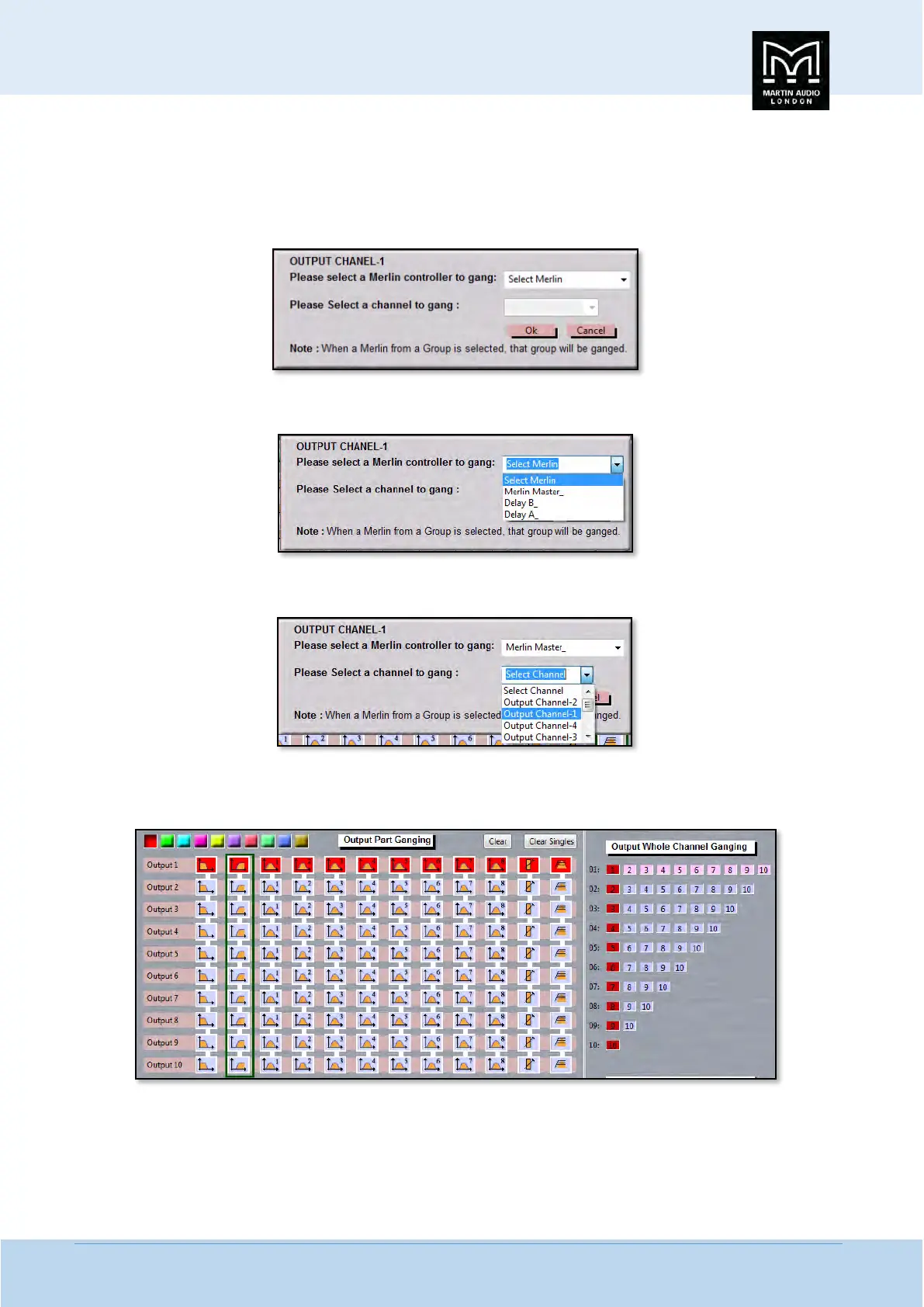

A very powerful feature of Vu-Net is the ability to gang channels between other Merlins on the same U-Net network. Cross device
ganging over-rides all other ganging. In our example we have a project with 4 Merlins named “Merlin Master”, “Merlin Slave”,
“Delay A" and “Delay B”. We will gang output channel 1 of all Merlins together with the Master as the base.
First if we open the Merlin Slave and click on the Ganging Tab, we right click on the Output Whole Channel Ganging channel 1.
This window appears;-
Click on the ‘Select Merlin’ drop-down and select “Merlin Master”;-
Now click on ‘Select Channel’ and click on “Output Channel-1”, note that the channel order in the list is not sequential;-
Click ‘OK’ and Channel 1 is now ganged between both the Slave and Master Merlins. The Ganging Window on the Slave Merlin
shows that it is ganged;-
Now repeat the same operation for the other two Merlins, “Delay A" and “Delay B”. If you return to the Master Merlin and hover
the cursor over output 1 we see this;-
