MLA System USER GUIDE
MLA System User Guide V2.1 353

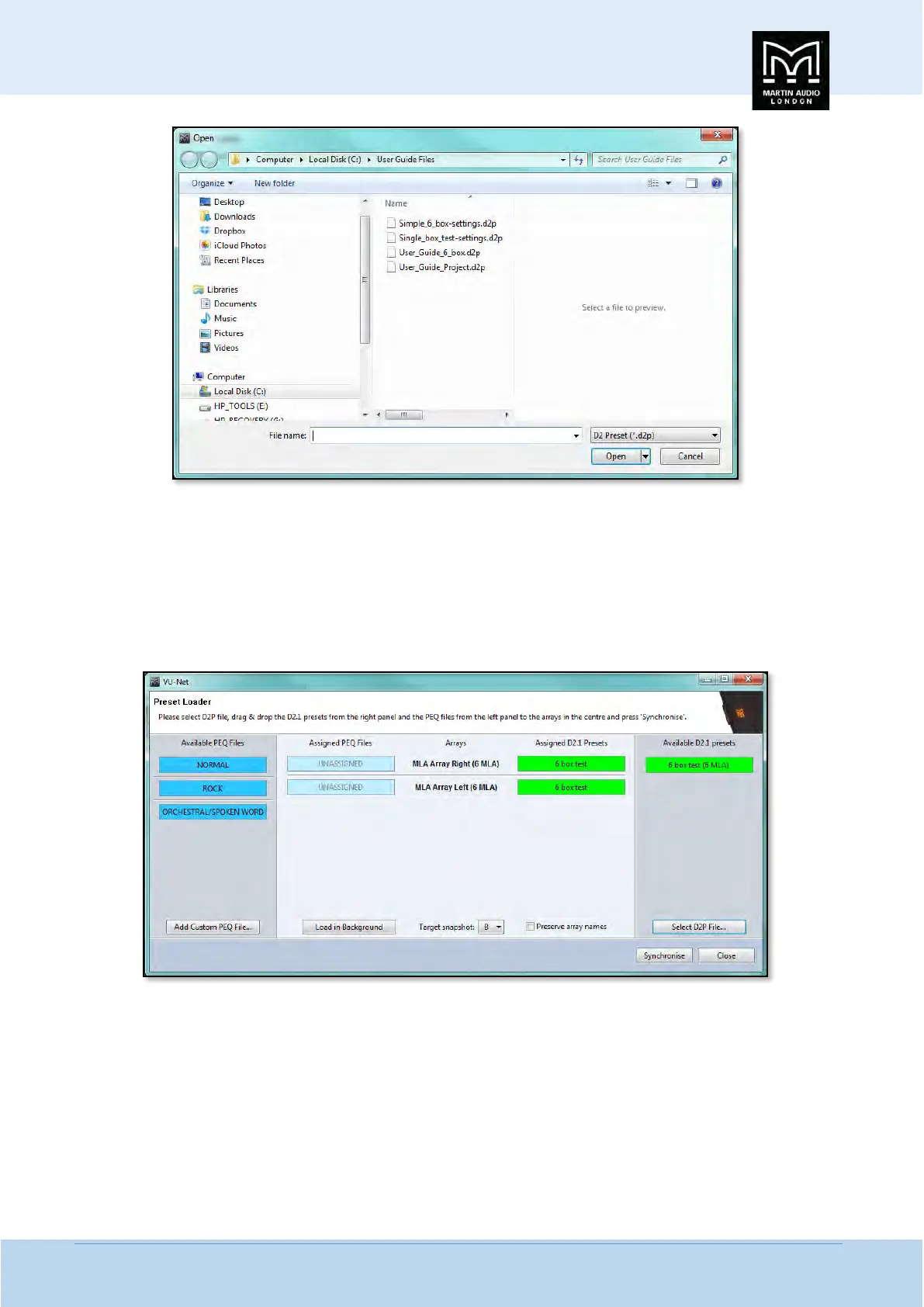

It is essential that you select a d2p file which matchers the array configuration size and type that matches the array to which
you wish to upload optimisations. You cannot load a non-matching d2p file!
There are a couple of possible outcomes when you have selected a d2p file. If you have only created one optimisation for your
project it will be automatically placed in the array thumbnails ready for synchronisation. In the above list of d2p files, “Simple 6
box setting" is an example of this. Note that the optimisation will always specify the type of cabinet, in this case MLA. You will
be able to select any d2p file but will not be able to synchronise a file created for the wrong type of cabinet. The Window will
appear like this;-
You can see that the optimisation contained within the file called “6 box test" appears in the Available D2.1 presets list on the
right. It is also already showing in the Assigned D2.1 Presets for both of the left and right arrays in our system.
If we created several optimisation for the array, trying a few different goals for example which was done in the file “User Guide
6 Box" in our examples, this is how the window will appear;-
