MLA System USER GUIDE
MLA System User Guide V2.1 383

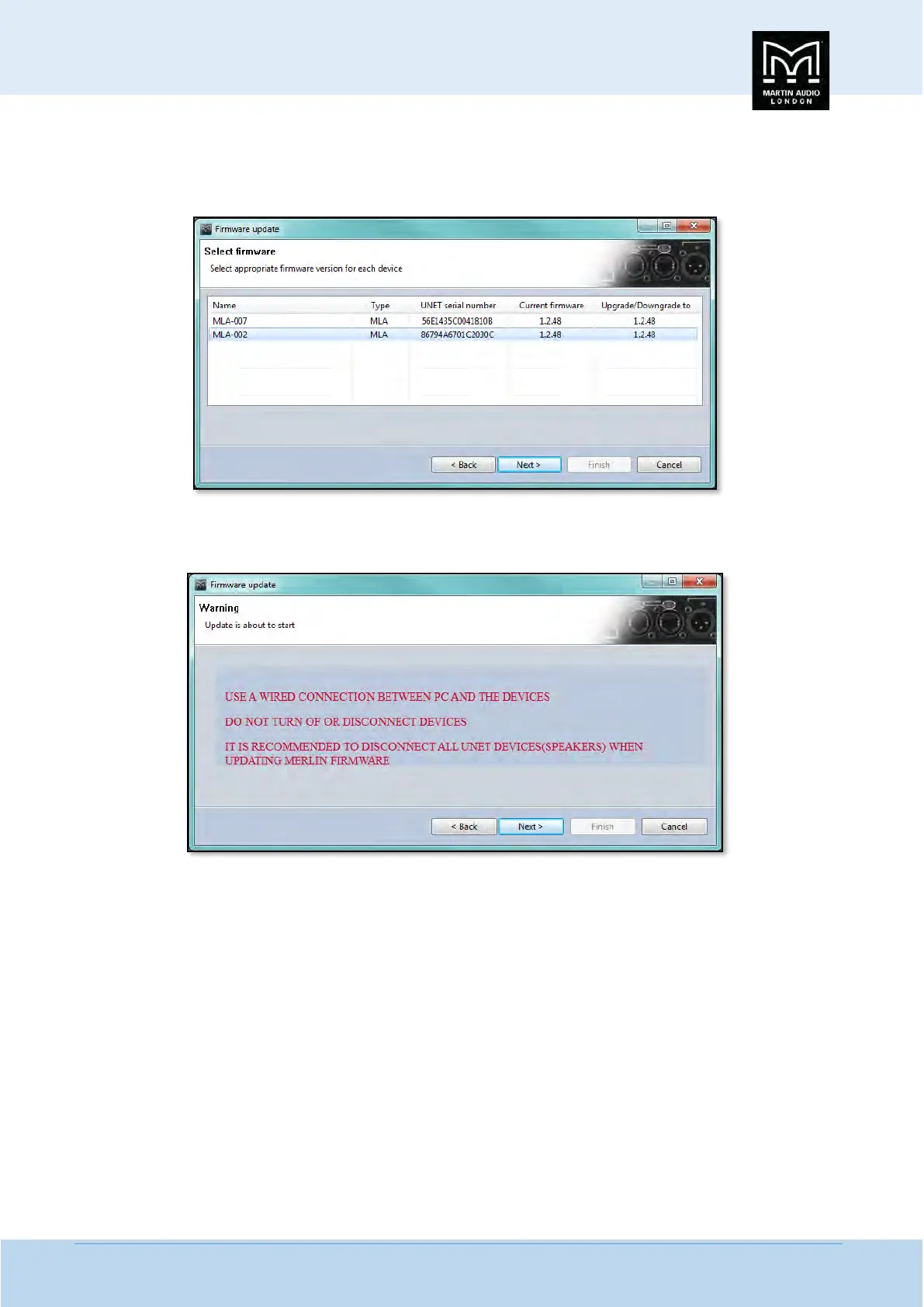

The current firmware is shown and the final column has an option to select the required firmware which in most cases would
be a new version but could be an old firmware if say a bug has been found in a current version and it is necessary to downgrade
to an earlier version. If there are several versions available, clicking on the Upgrade/Downgrade cell will bring up a drop-down
showing the version numbers. Select the version you wish to use and it will appear in the final column;-
Click on ‘Next’ to start the update. You will first see the following warning to ensure that every measure has been taken to
ensure that the update will complete successfully;-
Click Next and the upgrade will start. A progress window will appear showing the processes in the upgrade taking place. The
system tackles one device at a time, placing it into Boot Mode, uploading the firmware and rebooting the device back into an
operating mode;-
