MLA System USER GUIDE
MLA System User Guide V2.1 392

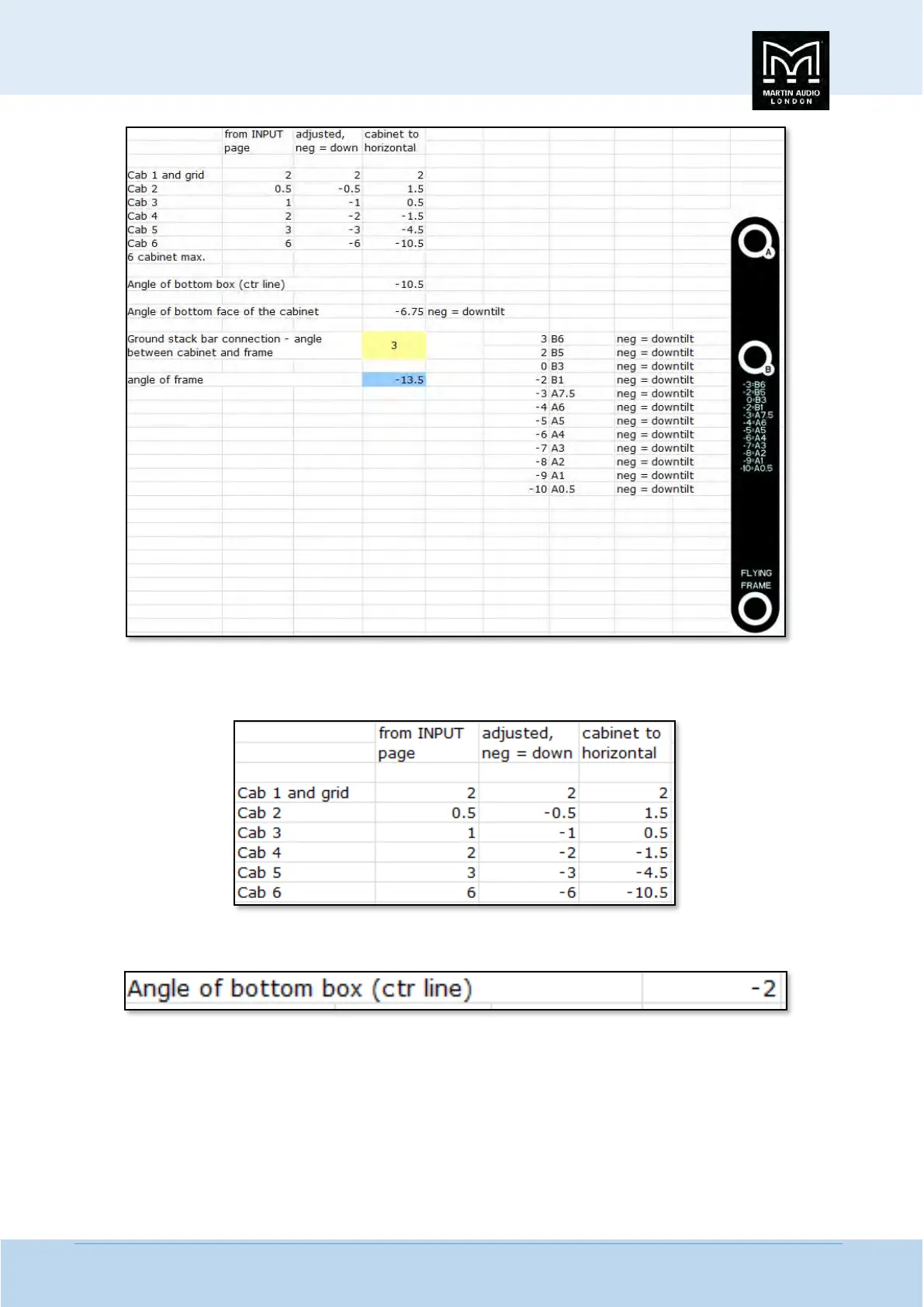

The table at the top of the page shows the angles as they have been entered on the Input page with the actual angles with
respect to the actual angle to the horizontal;-
The crucial information is the angle of the bottom cabinet;-
This can be used to select the appropriate holes in the ground stack bar and bottom cabinet. A thumnail of the bar is shown
together with a table showing the holes required to achieve the desired angle;-
