MLA System USER GUIDE
MLA System User Guide V2.1 425

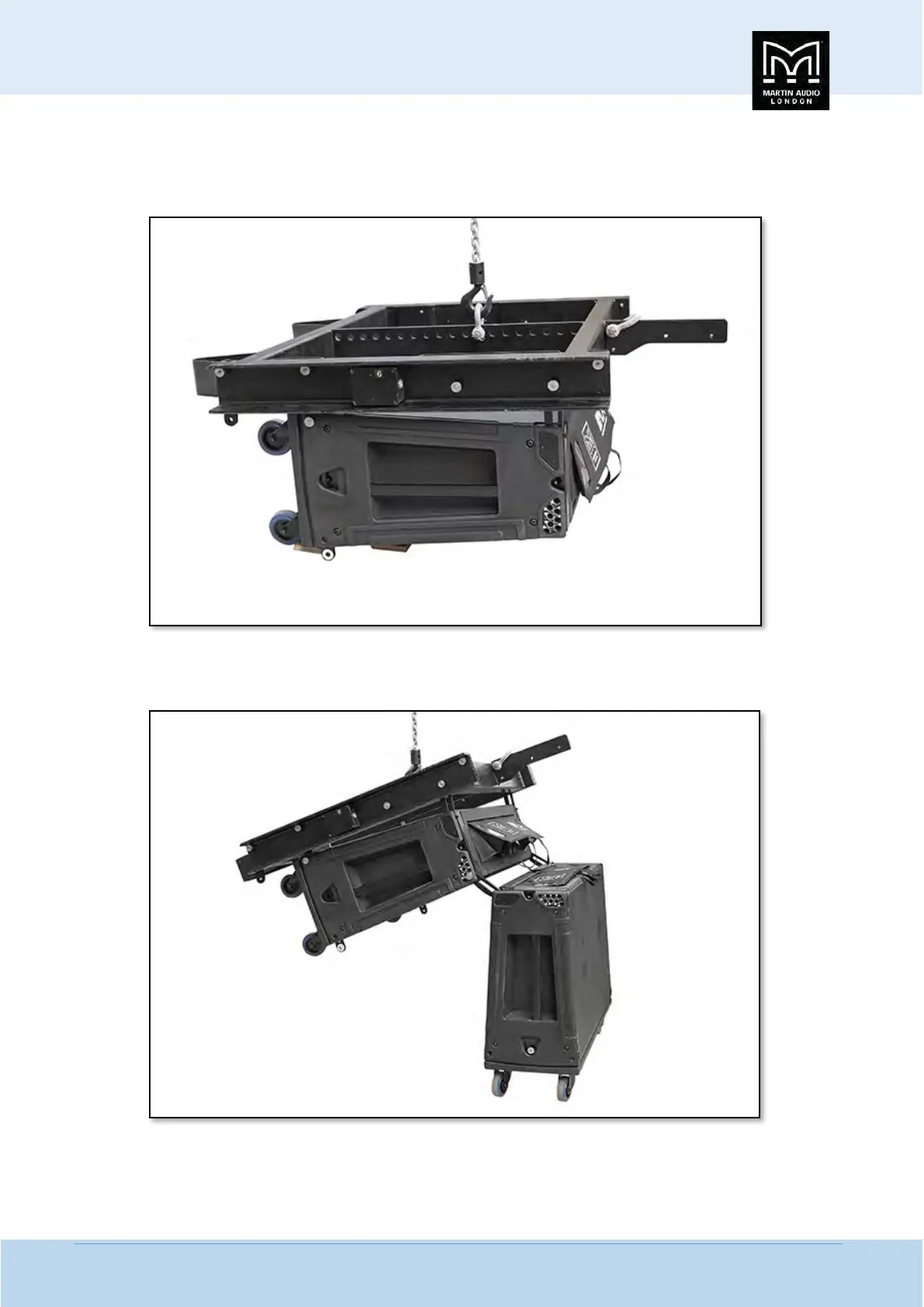

the grid and cabinet out so the cabinet is just off the floor, swing the cabinet forward and then land the whole array so the
cabinet is on the ground with the grid on top as shown, if you have something solid enough it is helpful to land the cabinet onto
an object so there is clearance wither side for the rigging brackets to drop down when the pins are removed from the stowing
position;-
In this position it is relatively easy to connect the front rigging pins to the grid. The array can then be flown and the rest of the
array rigged in exactly the same way as before;-
