MLA System USER GUIDE
MLA System User Guide V2.1 434
You can now continue to build the array in exactly the same way as a normal MLA array.
Ground Stacked MLA arrays

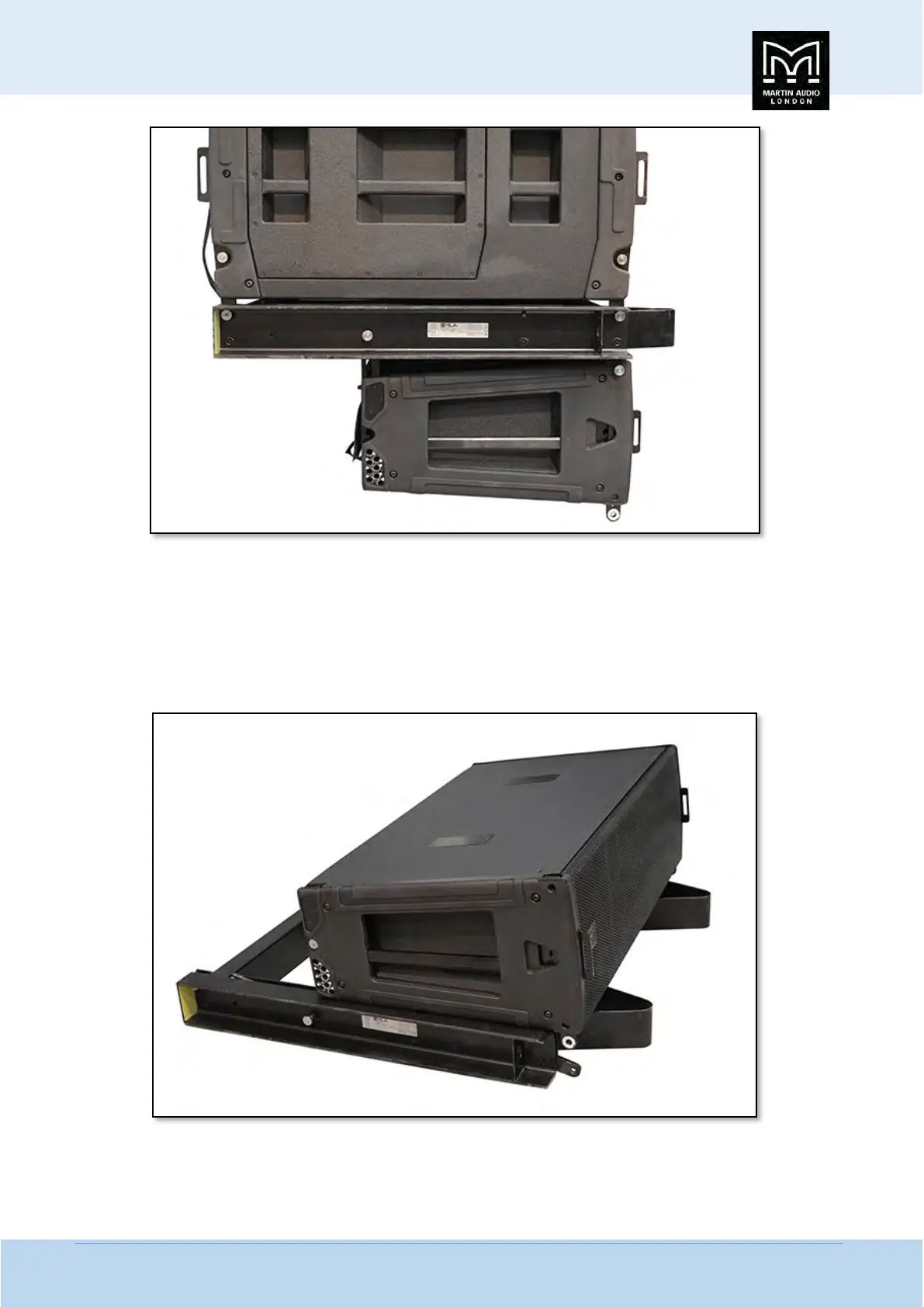

MLA may be ground stacked with arrays of up to six cabinets. A ground stacked system uses the standard flying frame on the
ground or on top of MLX. Start with the flying grid flat on the floor or on top of an MLX. It should be pinned to the MLX if used
on top. Wheel the first MLA in front of the grid and lower it down flat on top of the grid so it comes to rest in the horizontal.
Remove its wheelboard;-
Remove the pin from the front position on the flying grid, note that if you are ground stacking on top of MLX this pin will already
have been removed to release the bracket that attaches to the front of the MLX. Remove the pins from the front stowage
