MLA System USER GUIDE
MLA System User Guide V2.1 55

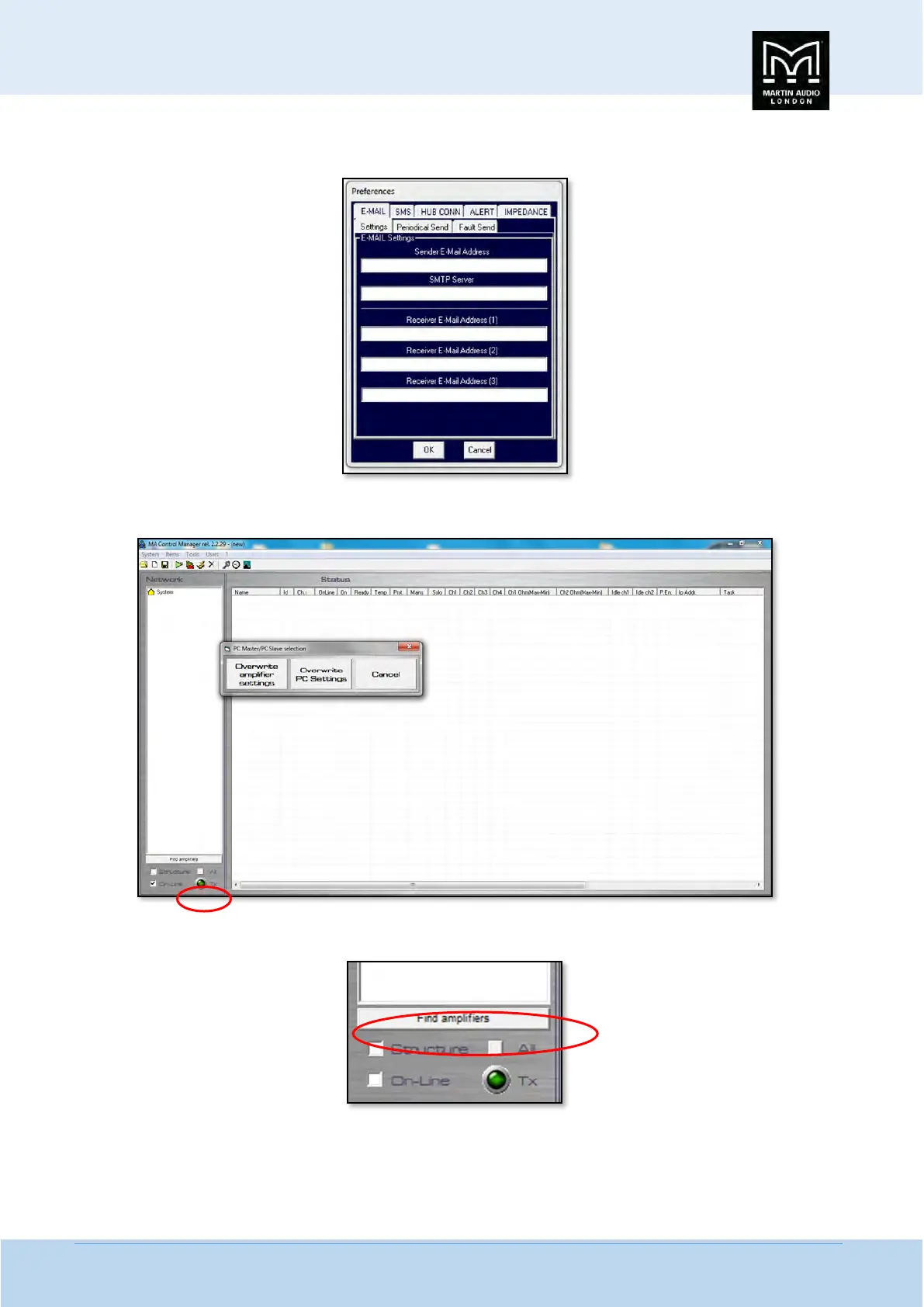

Go to ‘System’ → ‘Preferences’ and choose the ‘HubConn’ tab. Select the COM port that your USB to RS485 is using previously
found to run the Firmware update application;-
To find the connected MLX click the ‘On-line’ box at the bottom of the window and select ‘Overwrite PC settings’;-
Click ‘Find amplifiers’;-
The MLX will be loaded into the application and will be visible in the Network panel on the left of the window. Double click on
the amplifier symbol to open the MLX DSP;-
