• 10000 us
• 20000 us
• 50000 us (5x)

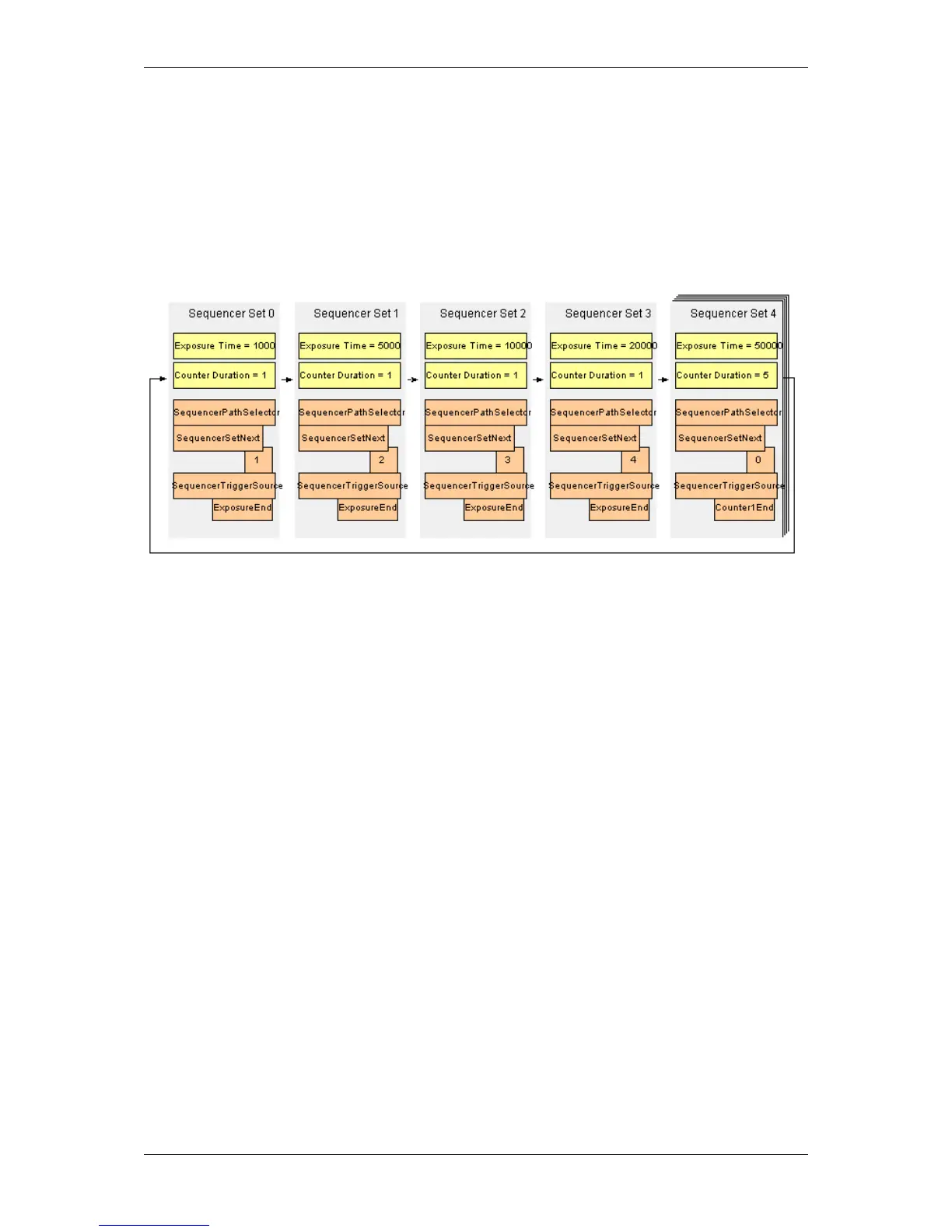

This will result in the following flow diagram:
Figure 1: Working diagram of the sample
As a consequence the following exposure times will be used to expose images inside an endless loop once the
sequencer has been started:
• Frame 1: 1000 us
• Frame 2: 5000 us
• Frame 3: 10000 us
• Frame 4: 20000 us
• Frame 5: 50000 us
• Frame 6: 50000 us
• Frame 7: 50000 us
• Frame 8: 50000 us
• Frame 9: 50000 us
• Frame 10: 1000 us
• Frame 11: 5000 us
• Frame 12: 10000 us
• ...
So the actual sequence that will be executed on the device later on will be like this
