20.3 Improving the acquisition / image quality 203

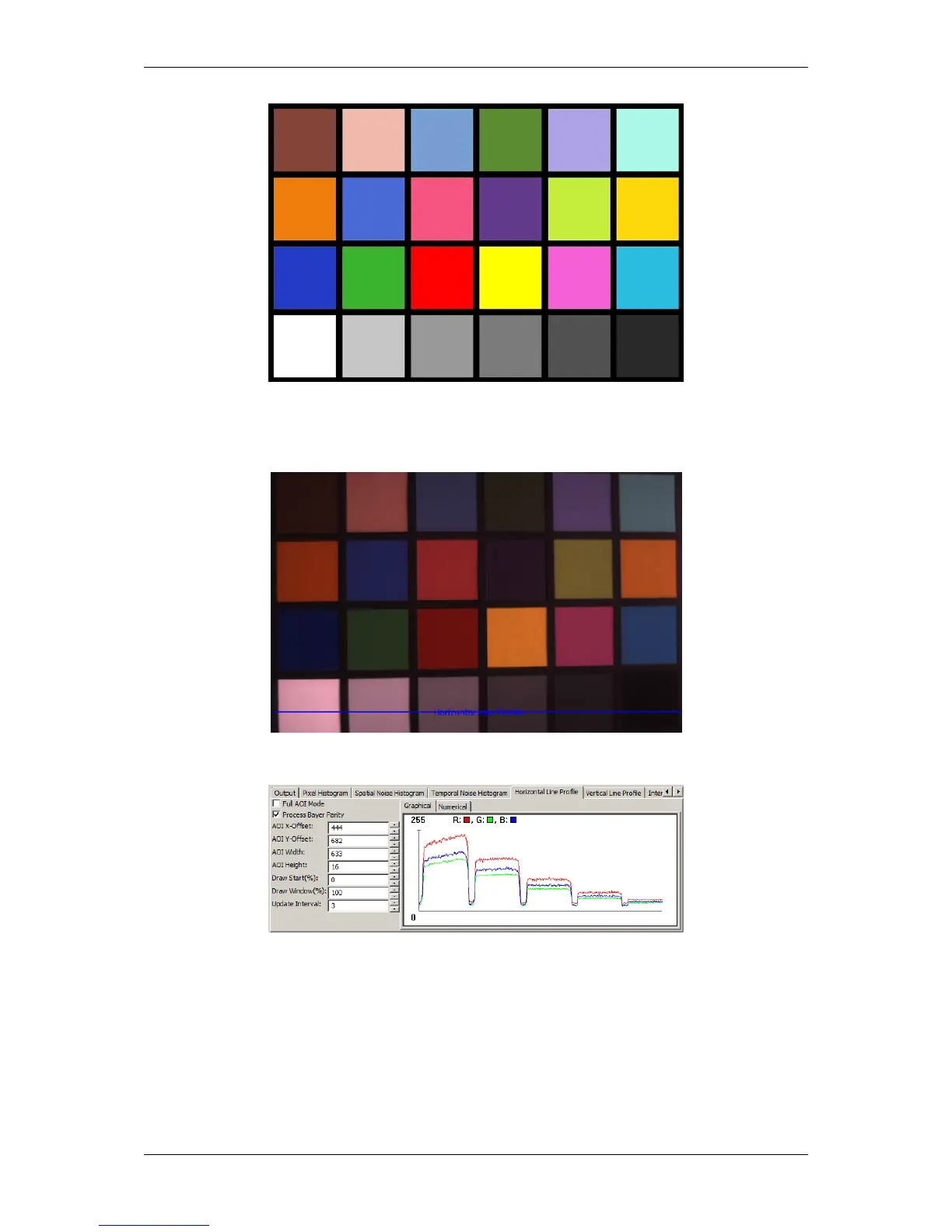

Figure 1: Color chart as a starting point
If we take a SingleFrame image without any color optimizations, an image can be like this:
Figure 2: SingleFrame snap without color optimization
Figure 3: Corresponding histogram of the horizontal white to black profile
As you can see,
• saturation is missing,
• white is more light gray,
• black is more dark gray,
• etc.
