– "Timer Trigger Source" = "Timer1End"
– "Timer Duration" = "40000"
1
FPS_max = ----- = 25
40000 us
• "Setting -> Base -> Camera -> GenICam -> Acquisition Control -> Trigger Selector -> FrameStart":
– "Trigger Mode" = "On"
– "Trigger Source" = "Timer1End"

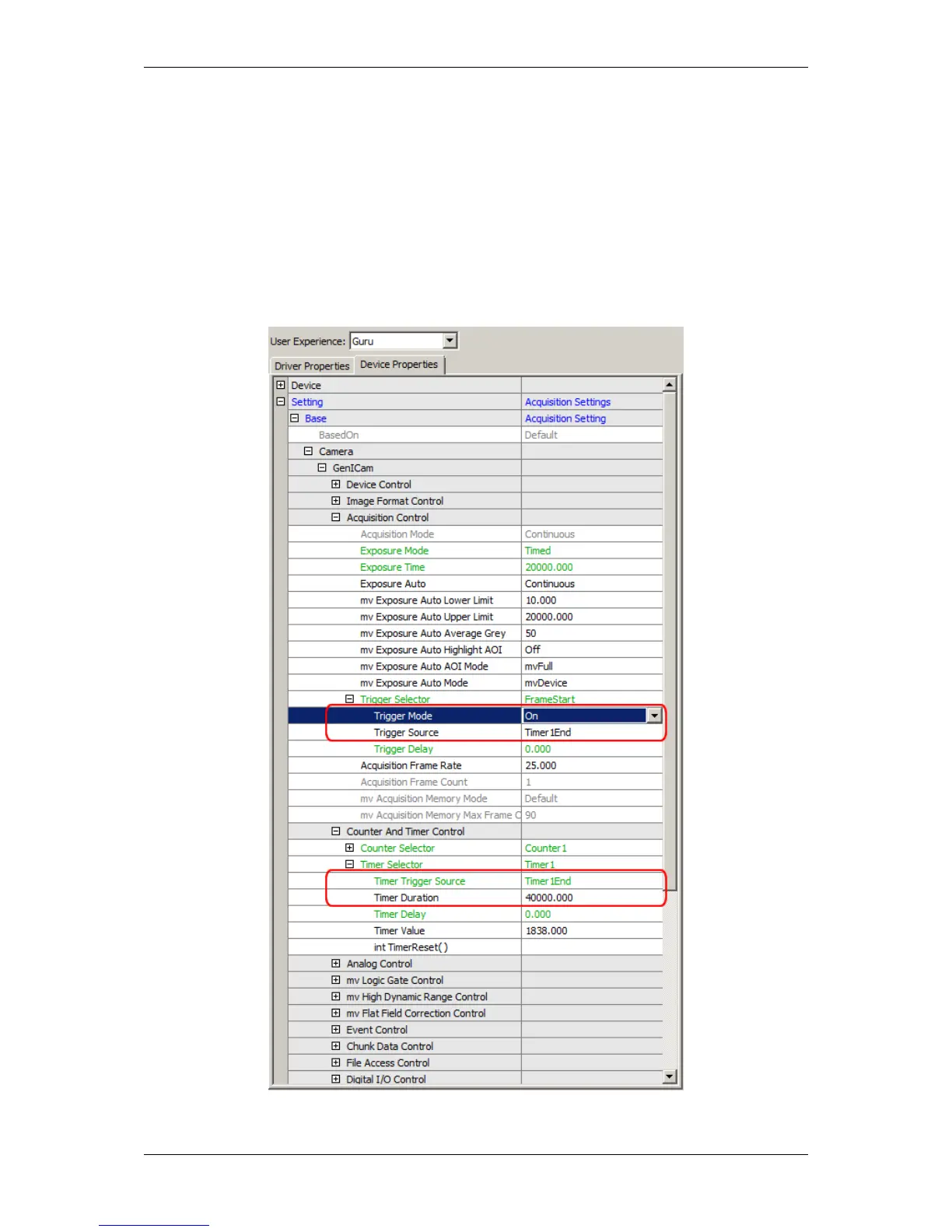

Figure 2: wxPropView - 25 Hz timer for external trigger
