12.1 wxPropView 85

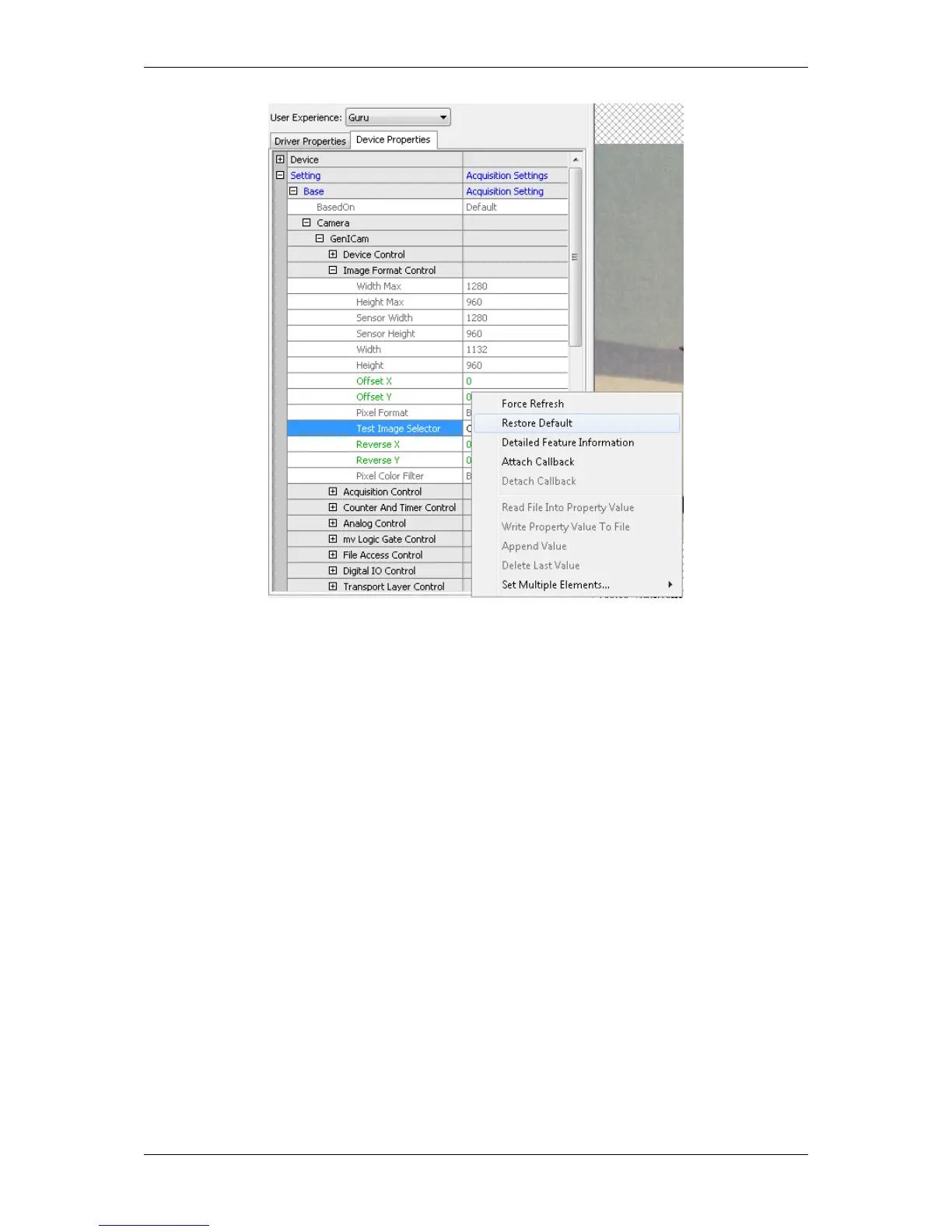

Figure 8:wxPropView - Restore the default value of a property

Also the user might want to set all (or a certain range of) values for properties that store multiple values with a single

operation. If supported by the property, this can also be achieved by right clicking on the PARENT grid element. If

the property allows this modiﬁcation the pop up menu will again contain additional entries:
