∙ You can use the ’Up-Arrow’ and ’Down-Arrow’ keys to move
up and down within the list
Bottom part of the list "All Devices"
To be able to navigate effectively within such a complex
network, individual "devices" and the corresponding menu
structures are combined to form applications. Thus an
application consists of several menu structures in a distributed
arrangement (see
Figure 7.2
).
These menu structures with distributed arrangement are
logically combined and given designations in menu
1y.7.5.1
Application ID
(n = 1 ... 255).
1
3
1 – Application identification 1:
#1/D1-->Subfunction 2
#1/D2-->Subfunction 1
#1/CM-->Subfunction 0
#2/D1-->Subfunction 3
#8/GW-->Subfunction 4
3 – Application identification 3:
#2/D2-->Subfunction 1
#1/CM-->Subfunction 0
#3/D1-->Subfunction 2
#3/D2-->Subfunction 3

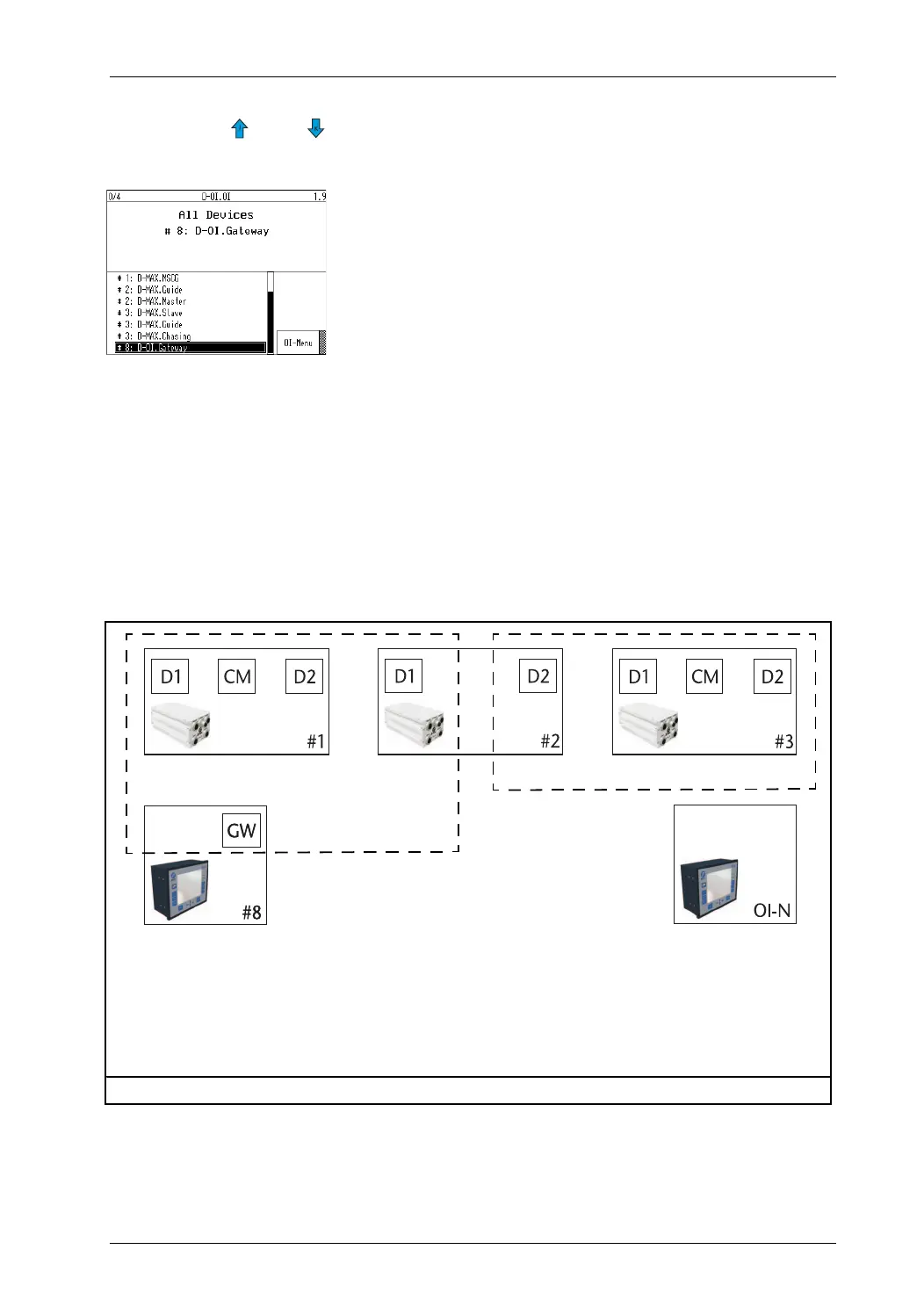

Figure 7.2:Example of combining "devices" within a distributed system
