MEDIATEK Ralink MT7620 - Page 43

PGMT7620_V.1.0_040503
Page 43 of 523
MT7620 PROGRAMMING GUIDE
Integrated 802.11n MAC/BBP and 2.4 GHz RF/FEM Router-on-a-Chip
Bits
Type
Name
Description
Initial Value
9:8
RW
SSC_UP_BOUND

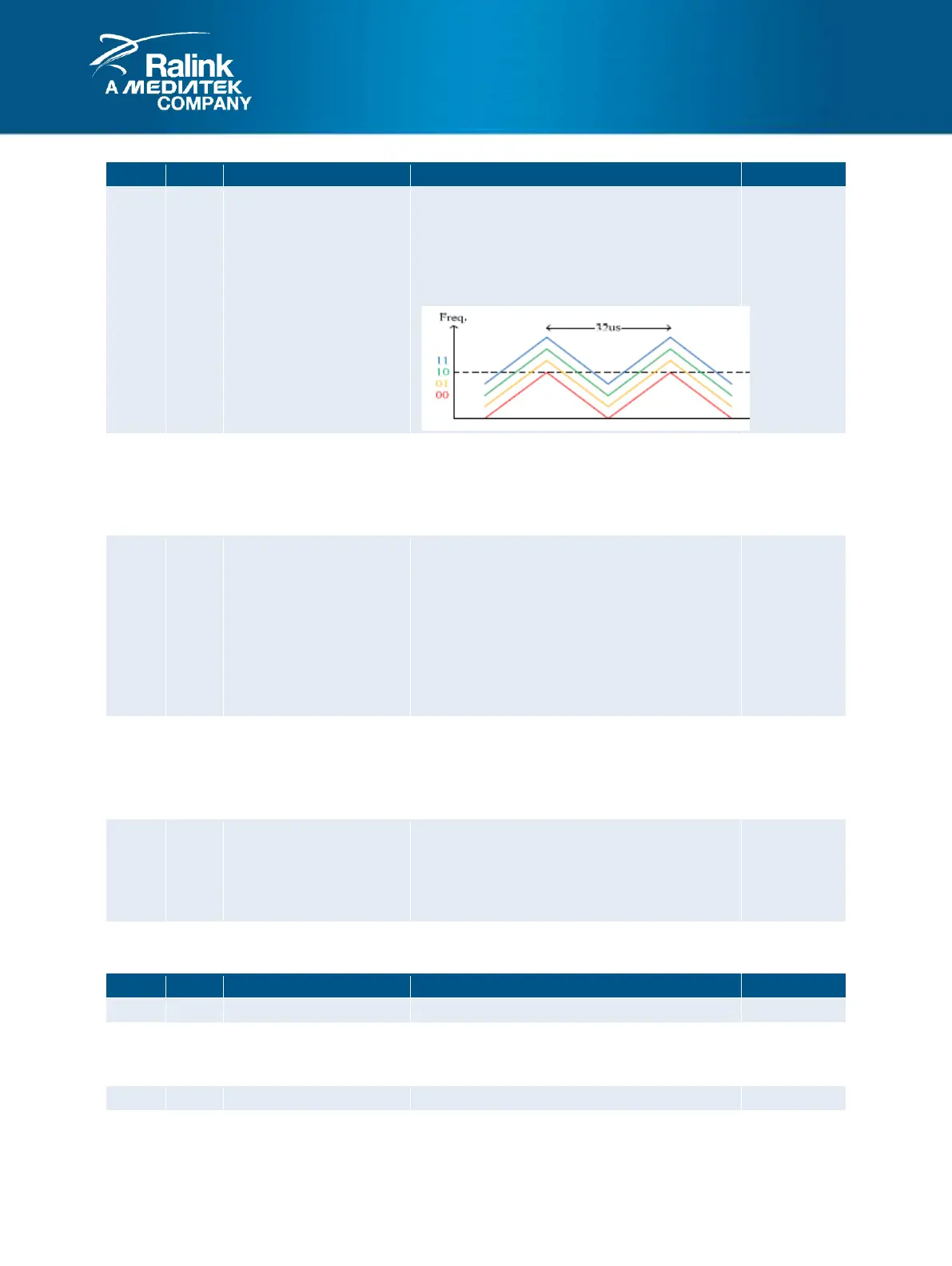

Spread Spectrum Clock (SSC) Frequency Upper
Boundary
00: 0 (default)
01: 1/4 SSC swing
10: 2/4 SSC swing
11: 3/4 SSC swing
0x0
7
RW
SSC_EN
SSC Enable
Enables the spread spectrum clock (SSC) to
reduce EMI and improve SNR.
0: Disable (default)
1: Enable
0x0
6:4
RW
SSC_SWING
SSC Swing
000: 1250 ppm
001: 2500 ppm
010: 3750 ppm
011: 5000 ppm
100: 6250 ppm
101: 7500 ppm
110: 8750 ppm
111: 10000 ppm (default)
0x3
3:2
RW
INT_PATH_OPT
Integration Path Option
00: 1.25 μA (default)
01: 2.5 μA
10: 3.75 μA
11: 5 μA
0x0
1:0
RW
PRO_PATH_OPT
Proportional Path Option
00: 25 μA
01: 50 μA (default)
10: 75 μA
11: 100 μA
0x1
28. PPLL_CFG1: PCIe PLL Configuration 1 (offset: 0x009C)
Bits
Type
Name
Description
Initial Value
31:27
-
-
Reserved
0x0
26
RW
PPLL_PD
PPLL Power Down
0: Power On
1: Power down
0x0
25:24
-
-
Reserved
0x0
