Appendix| Pin Assignment PC1700-x/x/USB/OE/IND
optoNCDT 1700

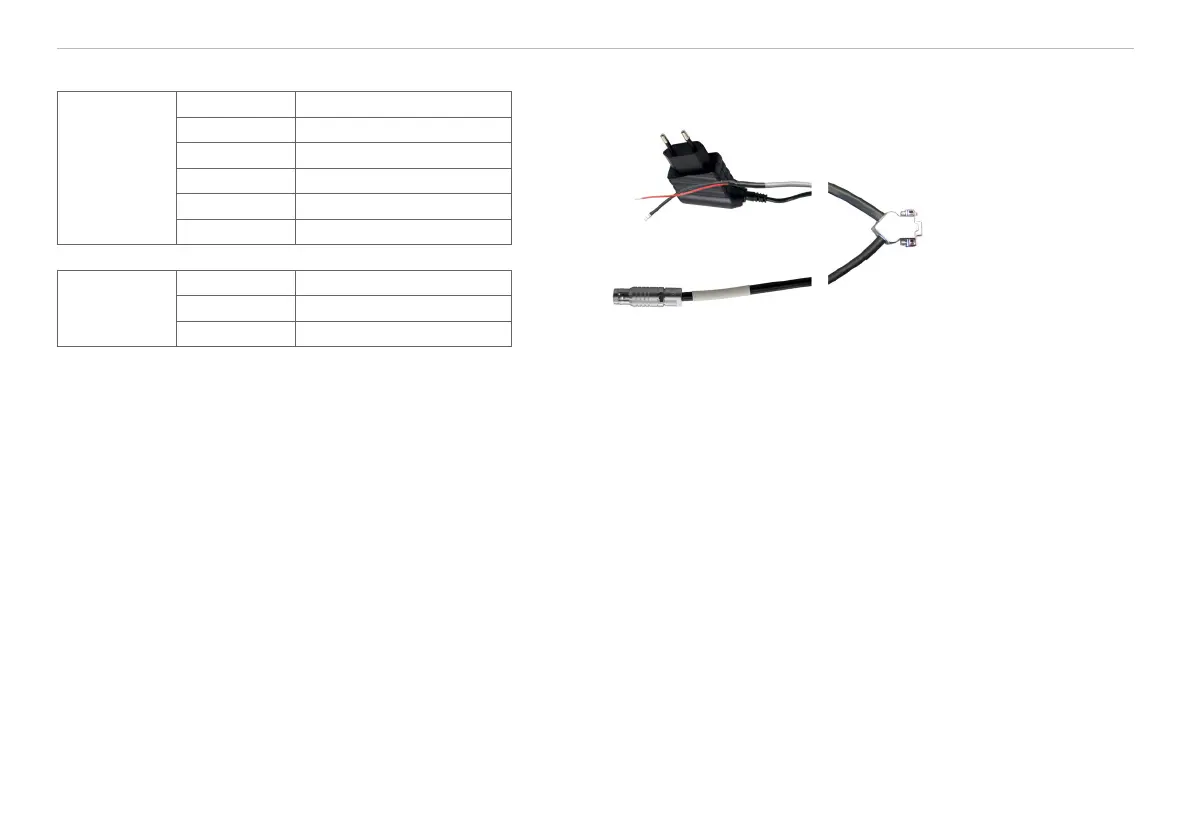

A 6 Pin Assignment PC1700-x/x/USB/OE/IND
9-pin Sub-D
Pin Assignment
Power
supply unit
PC
The PC1700-x/x/
USB/OE/IND
includes open
leads for analog
output signal
and power
supply unit for
90 ... 235 VAC.
Length x = 3 or
10 m.
1 Tx -
2 Tx +
Analog
output
3 Rx +
4 Rx -
5 GND
2-pin cable
Color Assignment
Sensor
white (red) 4 ... 20 mA or 0 ... 10 V
brown (black) AGND
1) No longer available!
