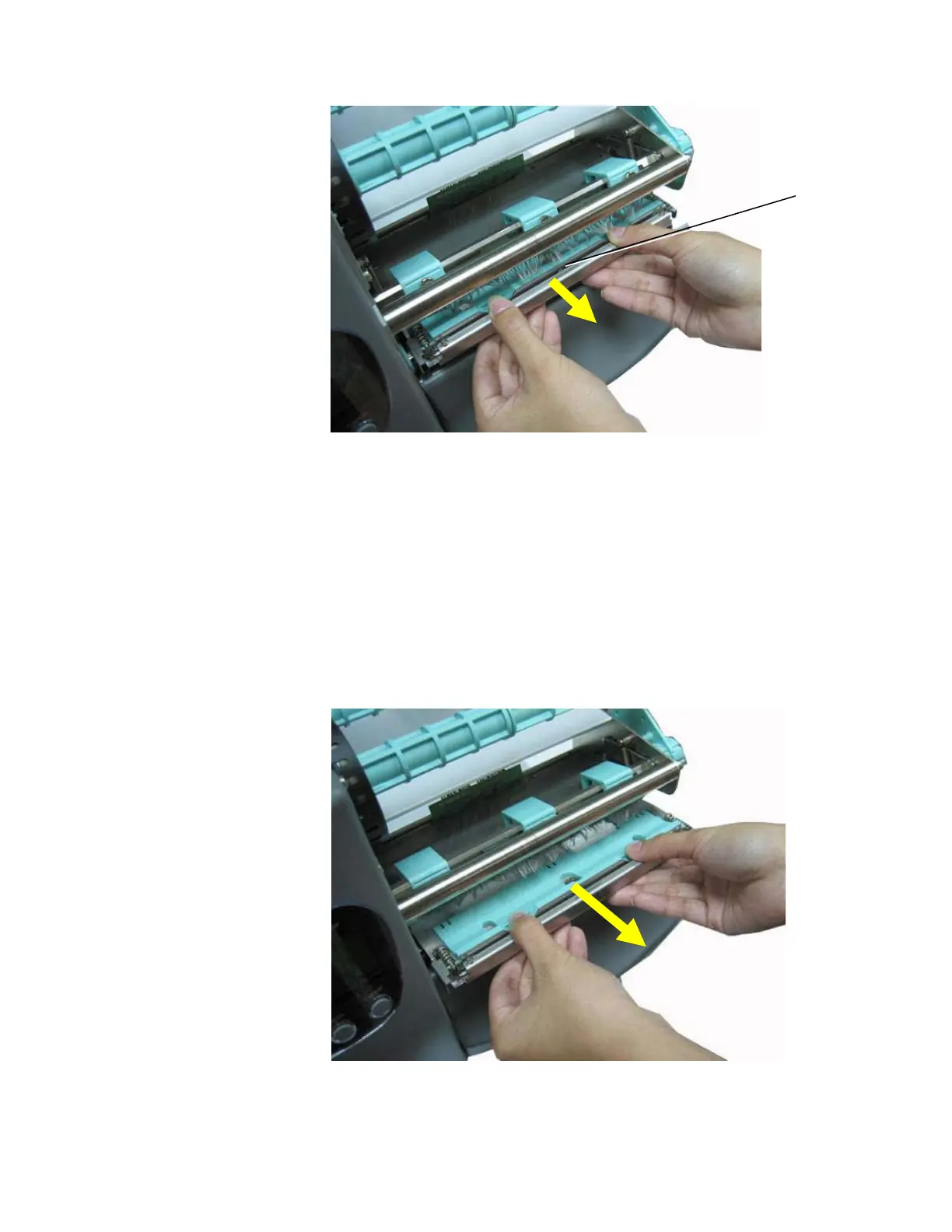

Fig. 9.2.1.b Gently pull the printheada little bit towards you
!
Tip: Have a look at the printhead’s position in the side guides of
the printer. Later on the new printhead has to be assembled
just in the same way.
7. Now gently pull the old printhead assembly completely out of
the device.
Fig. 9.2.1.c Removing the printhead
Printhead
assembly
