5.1. Winding Diagram

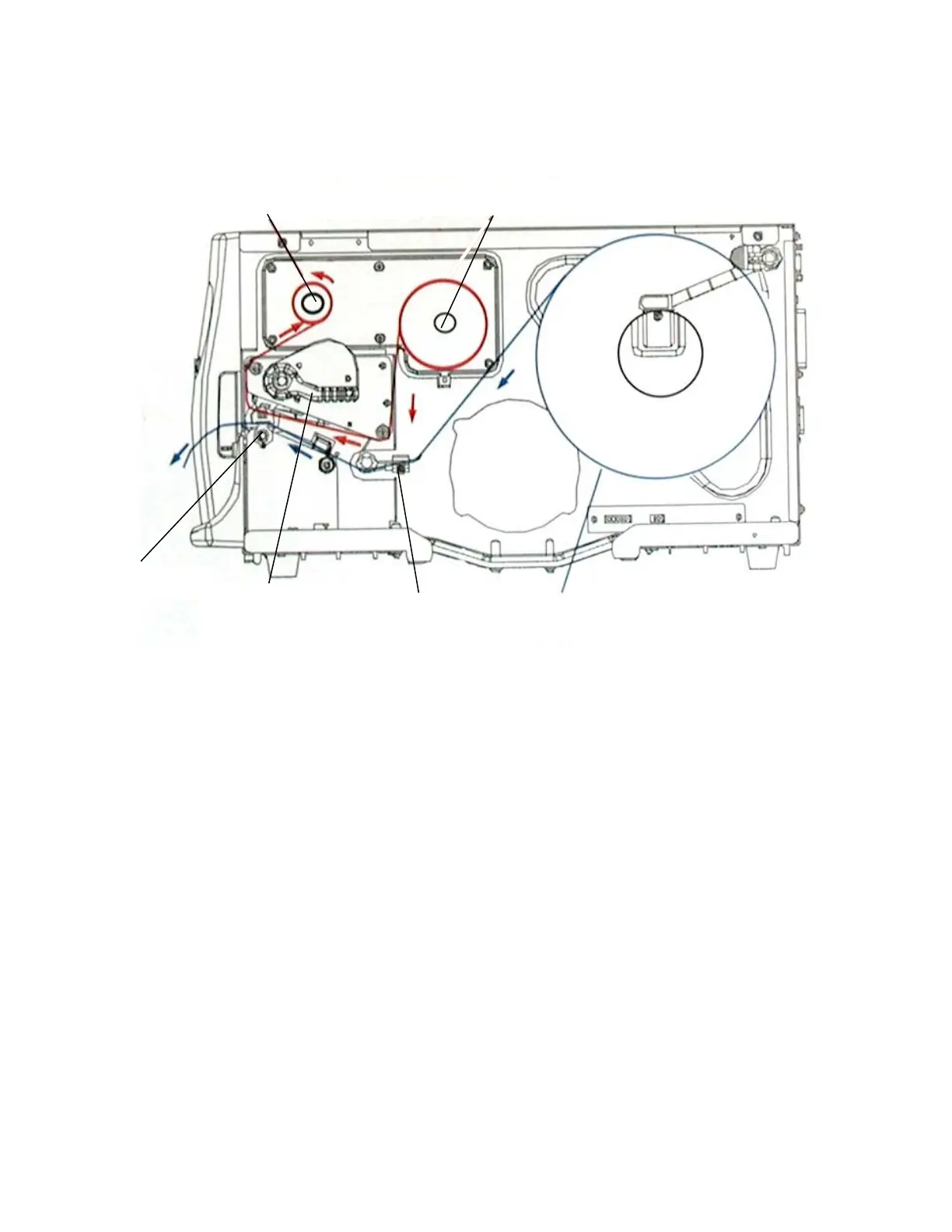

Fig. 5.1.a Winding directions of material and ribbon (here: ink inside the roll)
The diagram above shows the usual winding directions of material and
ribbon.
Pay attention to the different ribbon roll winding directions described in
section 5.3.1 Ribbon Loading. The figure above shows the winding
directions for “Ink inside the roll” ribbons. Also pay attention to the
instructions located on the inside of the printer hood.
Ribbon rewind shaf
t
Ribbon su
pp
l
y
shaf
t
Material roll (Label)
Print roller
Material guide
Printhead
pressure lever
