5.3.3. Ribbon Removal
The following steps are necessary if you want to switch from
printing in the thermal transfer mode to printing in the thermal
direct mode.
In case only a used-up ribbon has to be removed the steps 5 and
6 have to be omitted.
1. Switch the printer to OFF LINE mode.
2. Open the the printer hood.
3. Release the printhead pressure lever.
4. The core of a used-up ribbon can be removed by pulling it
from the ribbon supply shaft.
Ribbon rewind
shaft
Empty ribbon
sleeve
(ribbon core)
Used-up
ribbon

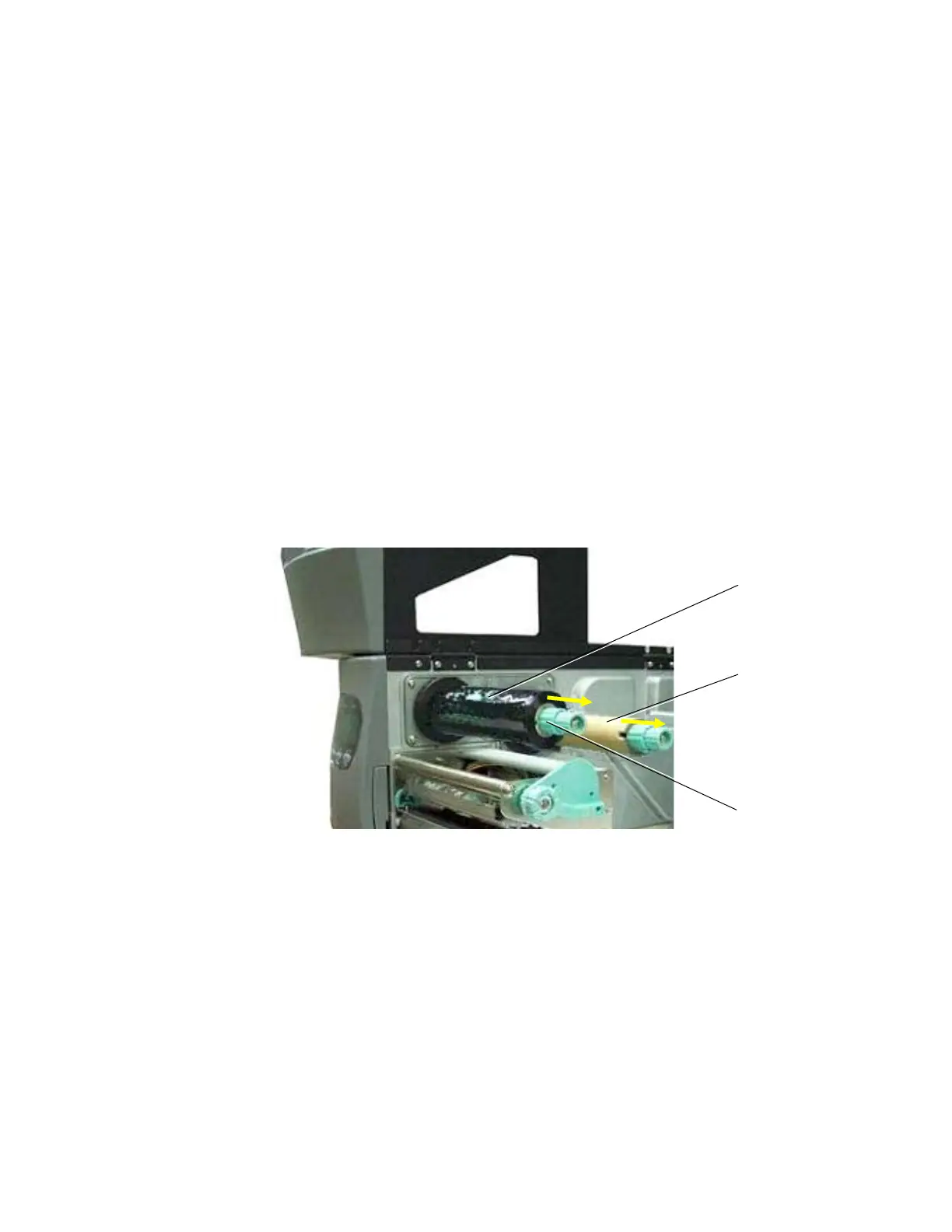

Fig. 5.3.3a Removing used-up ribbon
5. If the inserted ribbon is not used-up, cut it close to the
ribbon rewind shaft.
6. Rotate the ribbon supply shaft until the free end of the
ribbon is winded up.
