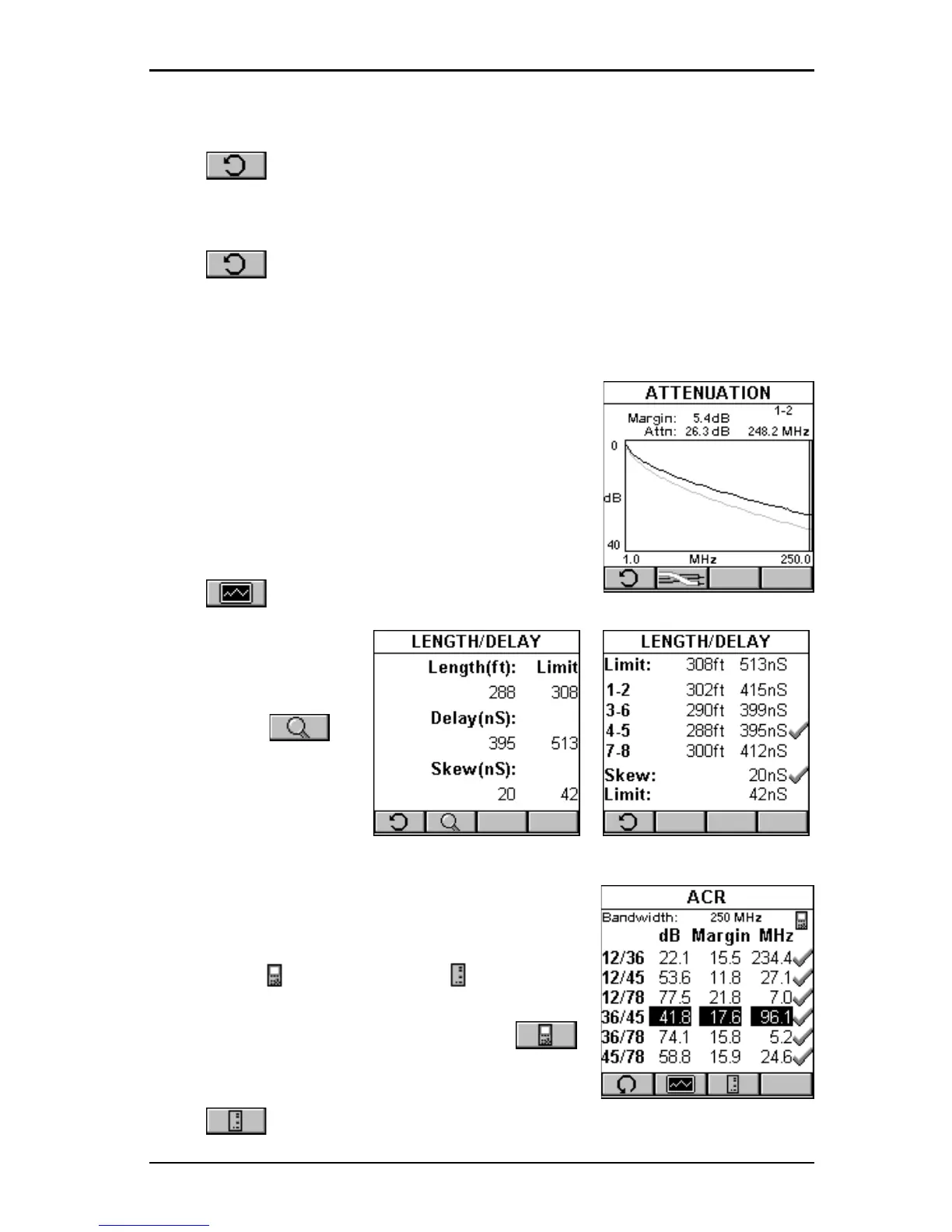

2 - 9
OMNIScanner User Guide
Most Autotest result screens have a retest feature for diagnostic purposes.
Press (Retest) to run continuous tests for the same cable. The
arrow located on the Retest button will be turning for the duration of the
test.
Press (Retest) once more to stop the continuous measurement.
OMNI
Scanner
will display the last measured data.
Note: Retest invalidates an Autotest. After using the retest feature, the
Autotest must be repeated before results can be saved.
The NEXT, Attenuation, Return Loss, Power Sum
NEXT, ELFEXT, ACR, Power Sum ELFEXT, and
Power Sum ACR test result screens have a graph
feature to display the graph associated with the
test. To avoid misinterpretation, the limit line is
shown in a gray color, while the actual measure-
ment is represented in black.
Press (Graph) to display a graph for a pair
or a pair combination.
The Length results
screen has a
(Detail) function key
that allows you to view
detailed test results for
each pair.
Tests that require the use of OMNI
Remote
will
have small icons in the upper right corner of the
titlebar to indicate whether the information is
pertinent for OMNI
Scanner
or OMNI
Re-
mote
.
To toggle between the two screens press
to open the screen that contains the information
for OMNI
Scanner.
Press to display the information for OMNI
Remote
.
