4 - 9
OMNIScanner User Guide
Press ENTER to terminate the edit mode.
Use the ê to highlight the Last Circuit ID: field and press ENTER.
Enter MT-F12 (MICROTEST - Floor 12)
-PP02 (- Patch Panel 02) -P48 (-
Position 48) in the Last Circuit ID: field. Press ENTER to terminate the
edit mode.
The Circuit IDs will increment from right to left. The positions will change
first from 01 to 48. Next the Patch Panels will increase from 01 to 02. Last
the floors will increase from 01 to 12.

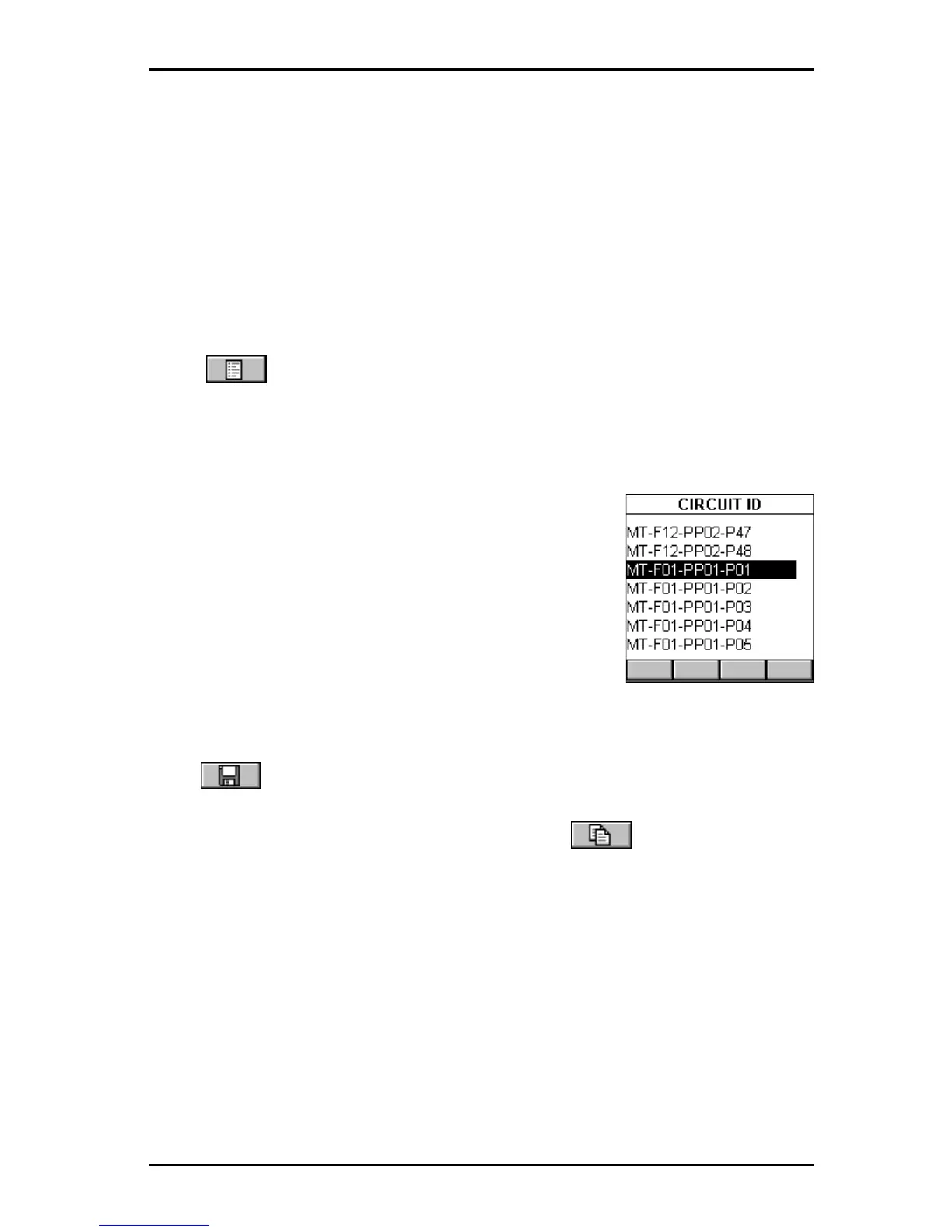

Press (List) to review the continuous list of Circuit IDs that was just
created.
MT-F01-PP01-P01 (1st Circuit ID to be used)
MT-F01-PP01-P02 (2nd Circuit ID to be used)
MT-F01-PP01-P03 (3rd Circuit ID to be used)
.
.
.
MT-F01-PP01-P48 (48th Circuit ID to be used)
MT-F01-PP02-P01 (49th Circuit ID to be used)
..
..
..
MT-F01-PP02-P48 (96th Circuit ID to be used)
MT-F02-PP01-P01 (97th Circuit ID to be used)
MT-F02-PP01-P02 (98th Circuit ID to be used)
...
...
...
MT-F12-PP02-P48 (last Circuit ID to be used)
Press
(Save) to save the Circuit ID and return to the PROJECTS screen.
Note: To quickly edit the Last Circuit ID, press (Copy) once you
have completed the First Circuit ID. This function will copy the First Circuit
ID into the Last Circuit ID field. Now edit the Last Circuit ID field.
Press ESC to return to the SETUP screen.
