SECTION 4 − SPECIFICATIONS
Welding-related hazards are present when using the welding training system. Read the welding power source and wire feeder Owner’s
Manuals and labels carefully for more information on arc welding hazards. Also read American National Standard Z49.1, Safety in
Welding, Cutting, and Allied Processes, from American Welding Society (www.aws.org). Operators must be trained on the proper use
of this equipment before using the equipment to train others.
4-1. Introduction
The LiveArc welding training system provides the new student or the experienced welder the opportunity to develop, enhance or verify their welding abilities
through an interactive, simulated or live-arc process on a variety of weld joint configurations. The microprocessor-based training system connects to nearly
any Miller power source/wire feeder combination and uses a series of cameras, LEDs, and markers on the SmartGun, SmartStinger, and table to monitor
the welds being performed. The user puts on personal protective equipment, turns on the welding equipment and training system, selects the desired weld
assignment on the touchscreen monitor, and begins either a simulated/practice (GMAW/FCAW only) or live arc weld. The cameras, markers, and LEDs
convey the weld data (gun angles, gun speed, CTWD, aim) to the system microprocessor, which compares it to the specified weld parameters of the
assignment selected. The system evaluates the weld data and grades the student’s performance through a numerical score.
 Unit is shown with optional
SMAW upgrade module.

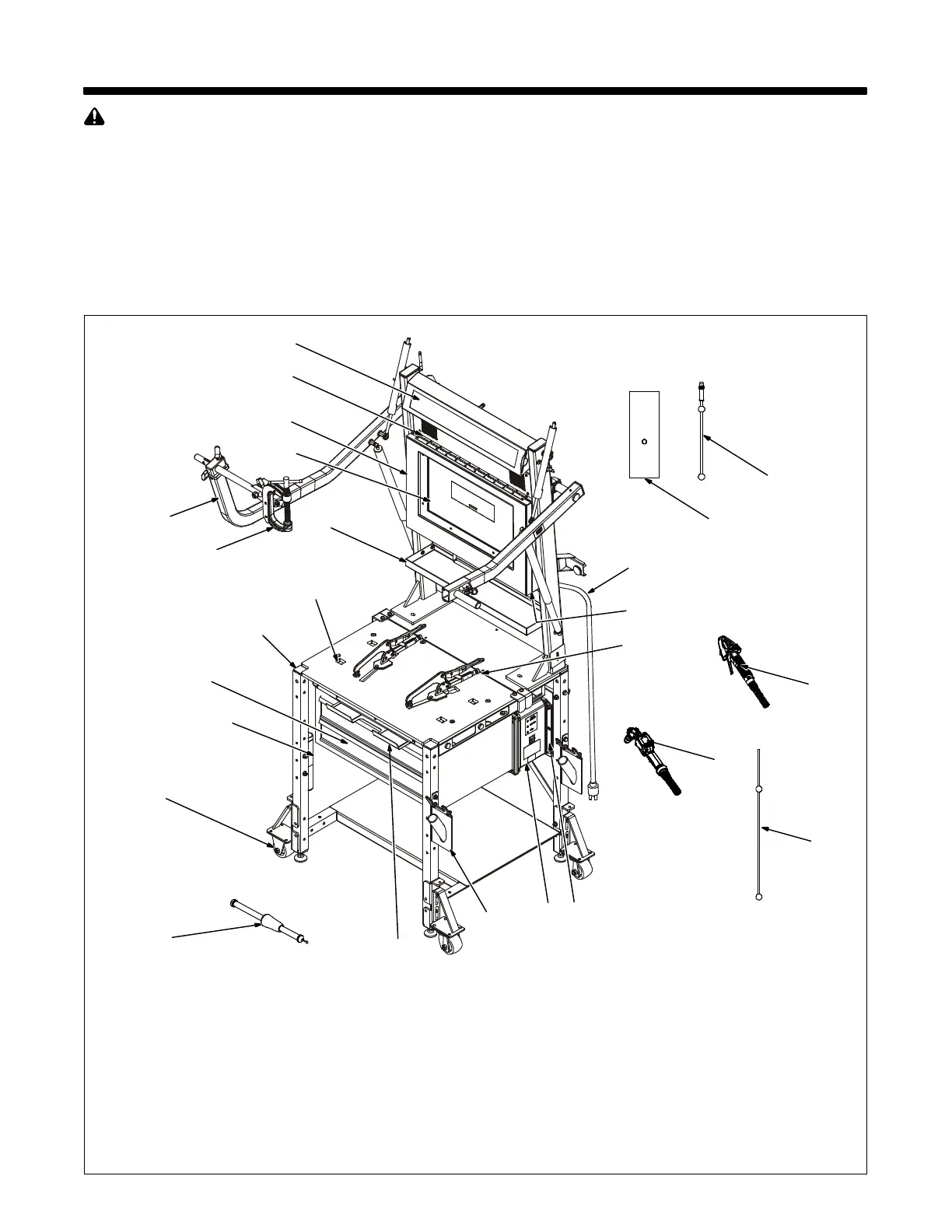

1 Caster
2 Tool Drawers
3 Weld Table
4 Table Marker (Sensor) (4)
5 Storage Tray
6 Positioning Arm (For Out-Of-Position
Welding)
7 Touchscreen Monitor
8 Monitor Cover
9 Speaker (2)
10 Camera (3)
11 Power Cable
12 USB Port
13 Table Clamp (2)
14 GMAW SmartGun (Cables Not
Shown)
15 Weld Tool Holder
16 Joint Calibration Tool
17 Storage Tray −
Joint Calibration Tool
18 Clamp Holster
19 Clamp
20 Clamp Calibration Block
21 SmartGun Calibration Tool
Optional SMAW Module Components
22 Router Box
23 Router Box Mounting Bracket
24 SmartStinger (Cables Not Shown)
25 SmartStinger Calibration Tool
26 Router Box Power Cable (Not
Shown)
