Miller LiveArc - Section 16 − Parts List

OM-267357 Page 63
SECTION 16 − PARTS LIST
 Hardware is common and
not available unless listed.
5
Ref. 270 776-D
1
2
8
7
4
9
15
10
12
14
13
11
3
6
16
17
18
19
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
20

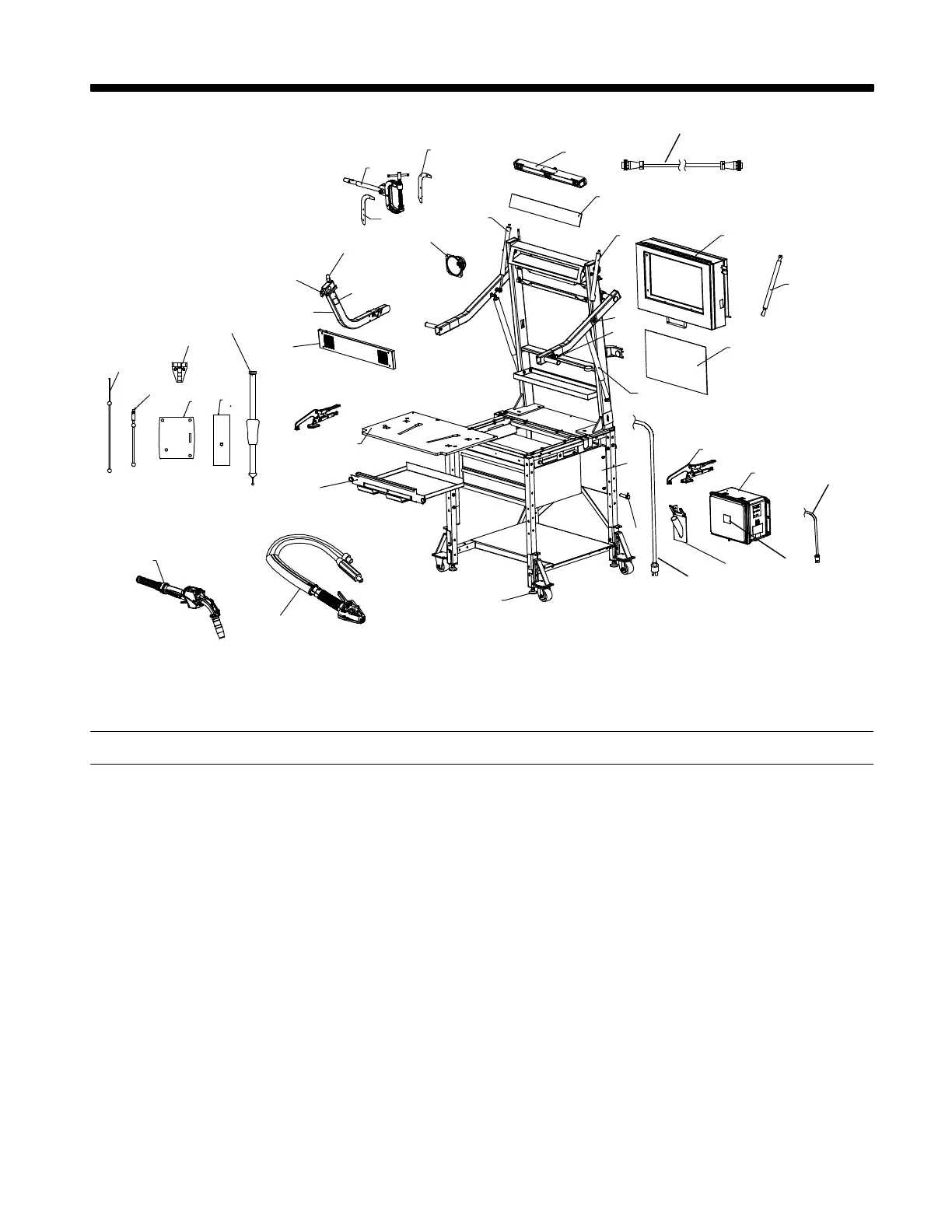

Figure 16-1. Weld Table And Monitor Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 16-1. Weld Table And Monitor Assembly
Quantity
1 266968 Camera, LiveArc Motion Tracking 1... .......... .. .....................................
2 *266672 Cover, LiveArc Camera Window 1... .......... .. ......................................
3 266689 Mechlock Assy, Right 1... .......... .. ......................................................
4 266690 Mechlock Assy, Left 1... .......... .. .................................................
5 272914 Cable Assy, LiveArc SmartGun Communication 1... .......... .. .........................
6 Display enclosure assembly 1... ..................... ..........................................
267995 Switch, Input Power 1................ .. .................................................
267993 Switch, Monitor, On-Off 1................ .. ..............................................
*268098 Fuse, Input Power Receptacle, 5 x 20 mm, 10 A, 250 VAC Slo-Blo 2................ .. ........
7 267144 Strut, Display Door 2... .......... .. ..................................................
8 *266684 Cover, LiveArc Monitor Display Window 1... .......... .. ................................
9 267504 Power Cord, LiveArc No 16/3 15 ft 1... .......... .. ....................................
021469 Label, Electric Shock 1................ .. ...............................................
10 257285 Clamp, LiveArc Table 2... .......... .. ................................................
11 274786 Assembly, Holster Stinger W/Overmold 2... .......... .. ................................
12 266771 Marker, Table 4... .......... .. .......................................................
13 +♦274064 Bracket, Router Box 1... ........ .. .................................................
♦275900 Label, Router Box Connectors 1............... .. ........................................
14 266694 Strut, Gas (w/Covers) 2... .......... .. ...............................................
15 272812 Label, Caution, Pinch Point 2... .......... .. ...........................................
16 266676 Speaker 2... .......... .. ...........................................................
17 266786 Clamp Assy, LiveArc Welding Positioning Arm (Includes) 1... .......... .. .................
18 270106 Protective Cover, Clamp Left 1... .......... .... .......................................
19 270105 Protective Cover, Clamp Right 1... .......... .... ......................................
