Backups made with an earlier software version cannot be restored directly on a LiveArc system running a later software version. However, such
backups can be restored on a computer running the later version of LiveArc software. After doing so, a new backup can be created on the computer and
then restored onto the LiveArc system.
8-5. Weld Tool Calibration
Use screen to calibrate a new SmartGun or SmartStinger, or to recalibrate or restore communication with an existing gun or stinger. Follow procedures
explained on screen.
8-6. Joint Calibration Tool
Use screen to enter measurements for a new or existing joint calibration tool. See Section 6-4 for joint calibration tool information. Use a precise calipers
to measure tool dimensions; tool must be in a relaxed position (uncompressed spring). Select tip type (rounded or pointed) and enter three
measurements as shown. Save dimensions (measurements) when finished.
8-7. Table Calibration
Use screen to recalibrate the table surface. Table must be properly calibrated for system to function properly. Place calibration plate on table top,
making sure it is flush with the table top. (Table top must be free of debris and spatter to ensure accurate calibration.) Touch Calibrate to begin calibration
process.
8-8. Camera-To-Arms Linkage Adjustment
Use screen to set the proper camera angle after installing the welding positioning arms.
8-9. Clamp Calibration
Use screen to calibrate a new clamp, or recalibrate an existing clamp (only used with welding positioning arms).
8-10. Camera Settings
Use screen only as directed by Miller technical support to adjust camera settings in order to resolve technical difficulties.
8-11. Tracking Optimization
Use screens to optimize gun calibration accuracy and camera tracking settings individually for each welding position (SmartGun only. Not
applicable for SmartStinger.)
8-12. Restore System Defaults
Use this screen to restore the LiveArc system to factory default settings. Use this option with caution because it will delete all custom assignments, user
profiles, and test history.

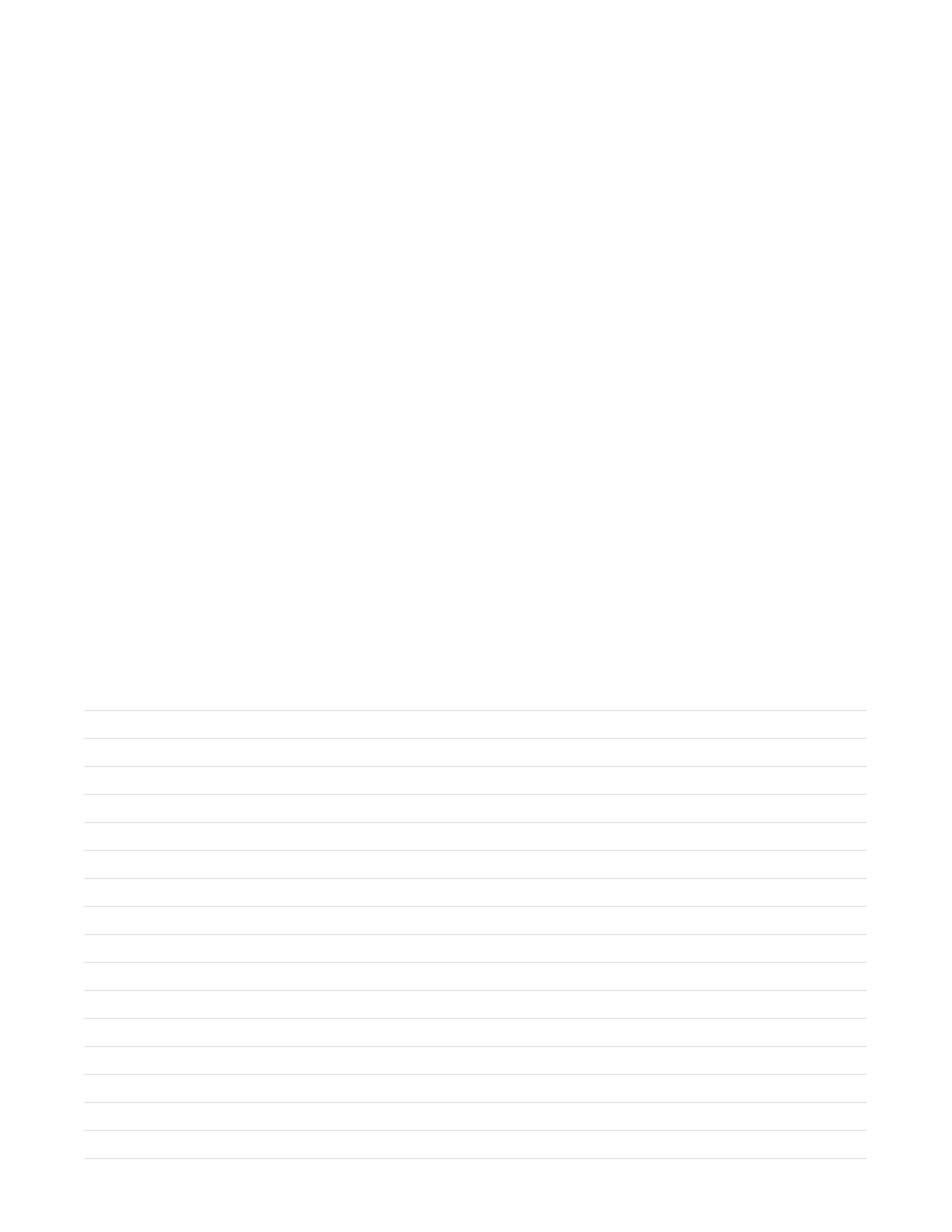

Notes
