OM-267357 Page 50

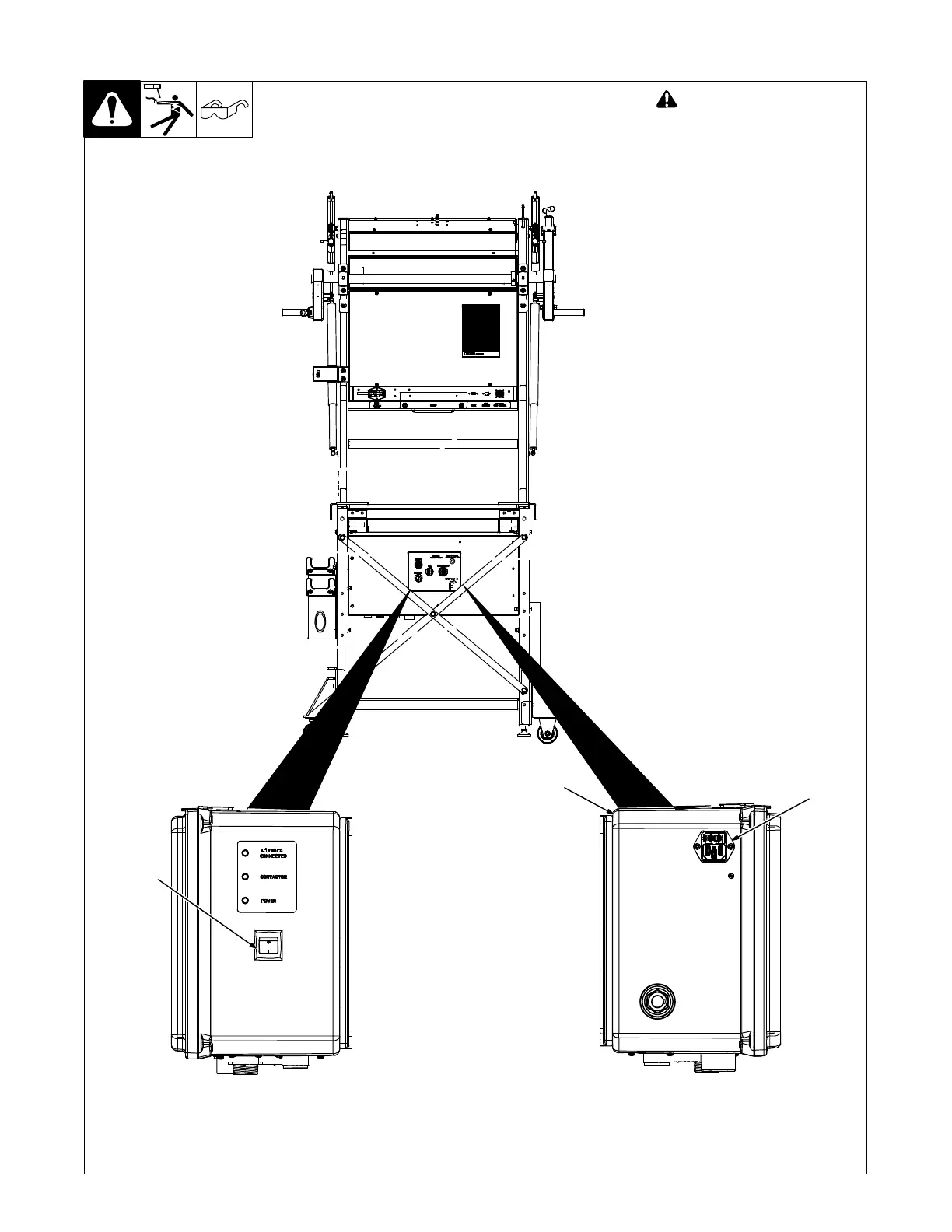

12-3. Connecting SMAW Router Box Input Power
! The input power cord is the
means for disconnection
from the electrical supply
source and the cord must be
readily available. Be sure the
training system does not
block access to the input
power cord.
Connect LiveArc input power ac-
cording to Section 5-11.
1 SMAW Router Box
2 Router Box Input Power
Connection
A 120 volt AC, 15 amp individual
branch circuit protected by fuses or
circuit breaker is required.
Select 14 AWG three−conductor
extension cord for distances up to
50 ft (15 m) or 12 AWG three−con-
ductor extension cord for distances
up 100 ft (30 m).
3 Router Box Power Switch
Place switch in On position.
268609-C / 275484
1
2
3
Monitor Back
