 Keep cameras, markers, and
LEDs free of tools, coupons, weld
spatter and other debris. If table is
clear and cameras cannot locate
table markers, clean marker
tubes with a damp cloth. (Do not
use chemicals, solvents, or abra-
sives to clean markers.)
 Table markers can be covered af-
ter completion of table calibration
for each welding assignment.

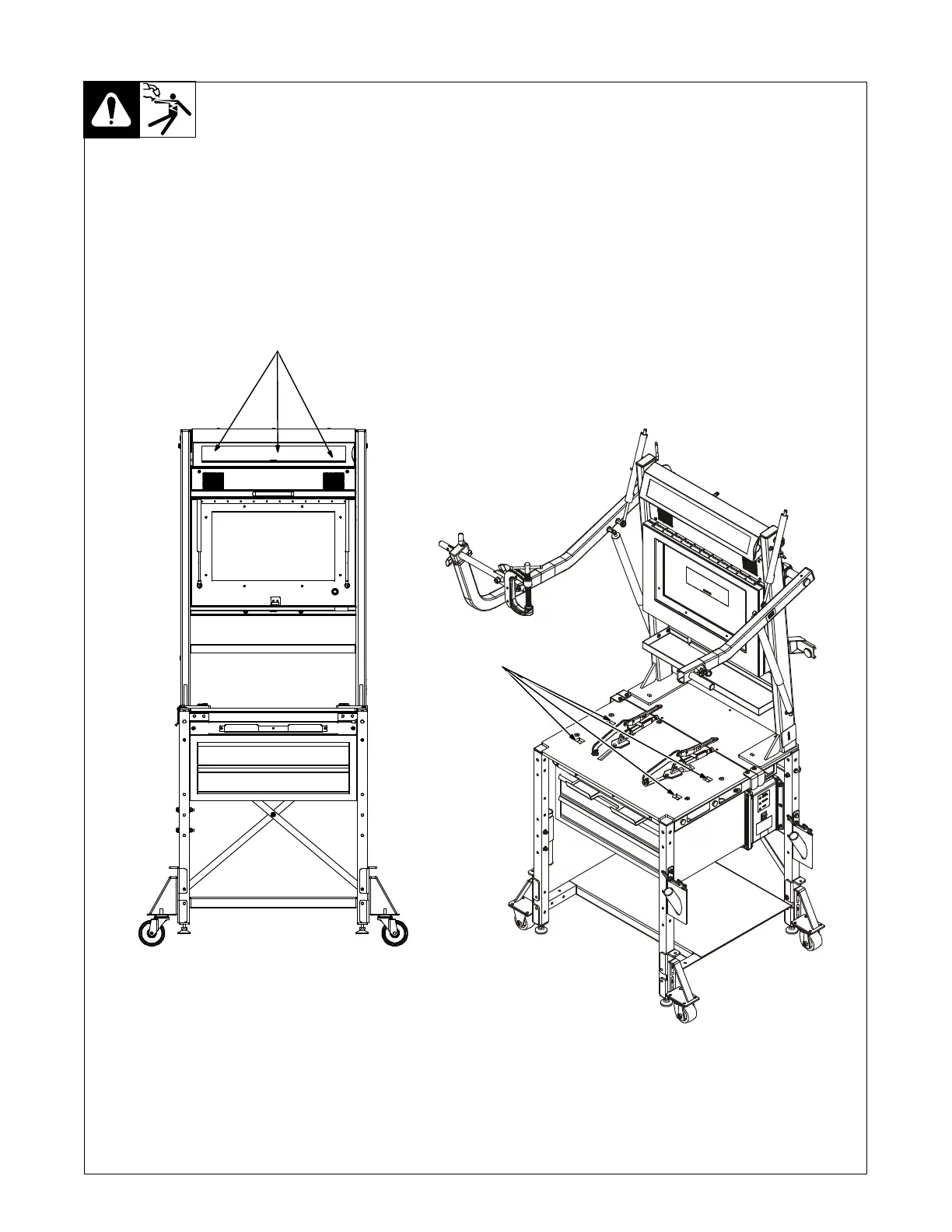

1 Data Collection Cameras (3)
2 Table Markers (4)
The training system uses a combina-
tion of monitor−mounted cameras,
markers on the weld table, and LEDs
on the SmartGun (and SmartStinger,
if equipped) to monitor table place-
ment, gun speed, gun angles, gun di-
rection, and other data. There are also
markers on the clamp for out-of-posi-
tion assignments.
1
Ref. 268609-C
6-2. Training System Cameras And Markers
2
