SECTION 5 − INSTALLATION
Welding-related hazards are present when using the welding training system. Read the welding power source and wire feeder Owner’s
Manuals and labels carefully for more information on arc welding hazards. Also read American National Standard Z49.1, Safety in
Welding, Cutting, and Allied Processes, from American Welding Society (www.aws.org). Operators must be trained on the proper use
of this equipment before using the equipment to train others.
! Only qualified persons should in-
stall, operate, maintain, and re-
pair this unit.
! Installation must meet all Nation-
al, State, and Local Codes − have
only qualified persons make this
installation.
! Do not move unit by pulling on
monitor, struts, or positioning
arm or equipment may tip. Posi-
tion lifting forks beneath table top
to move unit.
! Do not use this equipment to sup-
port personnel, large tools, or
other material.
! Special installation may be re-
quired where gasoline or volatile
liquids are present − see NEC Ar-
ticle 511 or CEC Section 20.
NOTICE − Use training system only in-
doors and away from sources of high fre-
quency (TIG welders) and other types of
electrical interference. It may be neces-
sary to enclose nearby electrical wiring
in conduit if unit is affected by interfer-
ence.
NOTICE − Do not use training system in
damp or wet locations. Keep training
system table and monitor dry.
NOTICE − Do not position training sys-
tem where the cameras are in direct sun-
light. High intensity sunlight can interfere
with gun tracking.
1 Lifting Forks
2 Casters
3 120 Volt, 15 Amp AC Grounded
Receptacle
4 Input Power Cord
Use casters or lifting forks to move unit.
Insert lifting forks beneath bottom shelf
as shown.
If using lifting forks, extend forks beyond
opposite side of unit.
Position unit near the welding equipment
and close to 120 volt AC receptacle but
away from obstructions that may restrict
movement of positioning arm.
 A 120 volt AC, 15 amp individual
branch circuit protected by time de-
lay fuses or circuit breaker is re-
quired.
Loc_livearc 2020-03 / 268609-C / 161-046 / 803 053

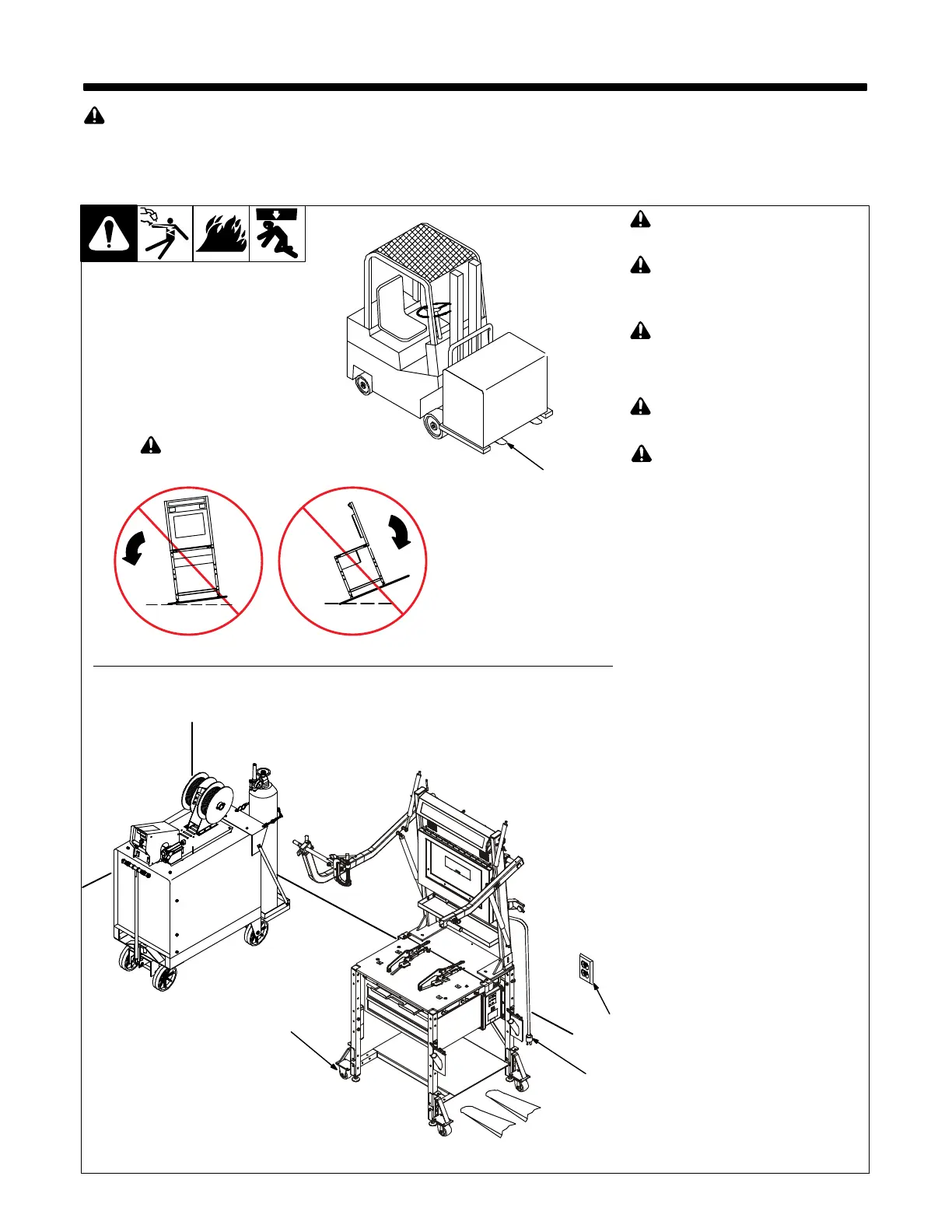

5-1. Selecting A Location
1
3
2
4
Correct location
for lifting forks.
! Do not move or operate unit
where it could tip.
Movement
Location
