OM-267357 Page 20

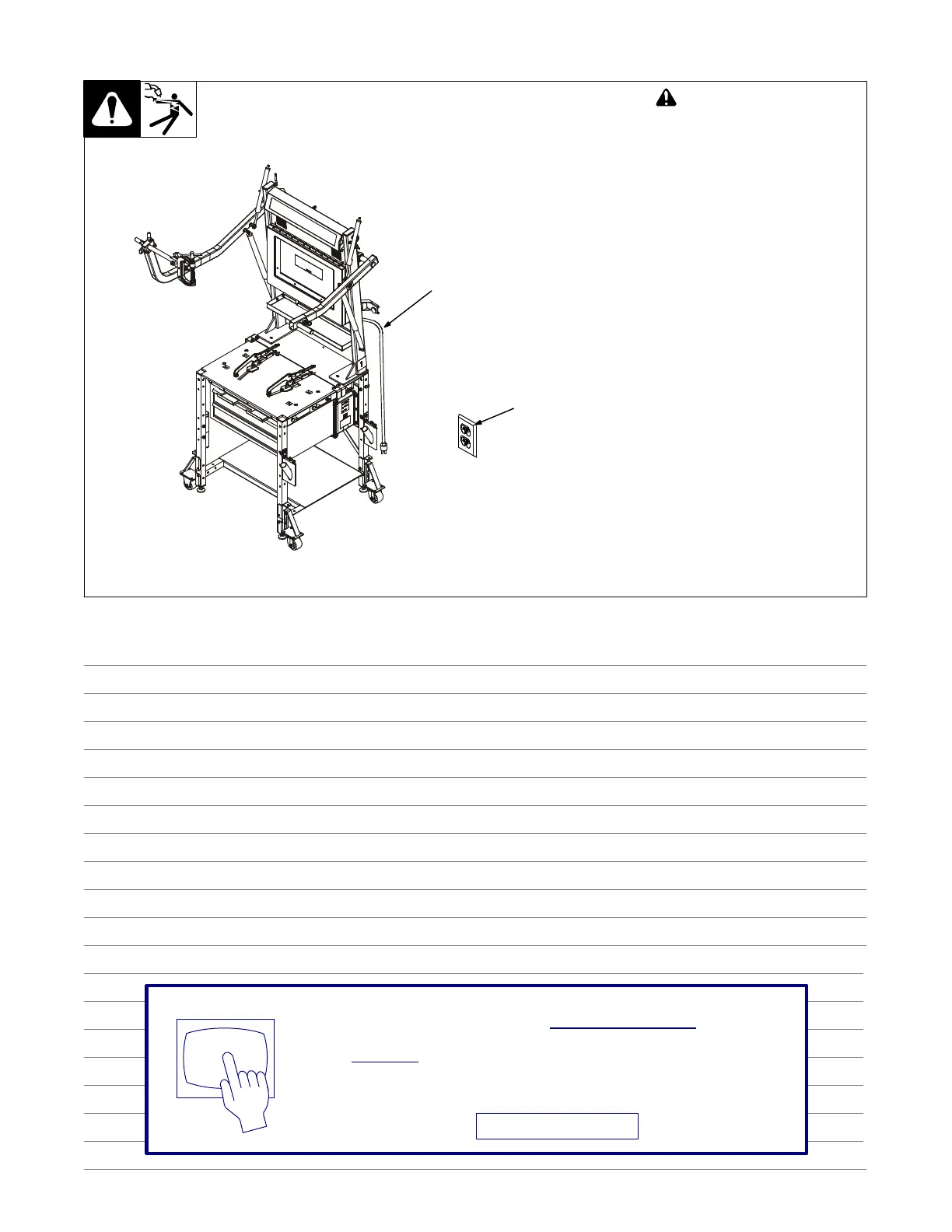

5-11. Connecting Input Power To Monitor
! The input power cord is the
means for disconnection
from the electrical supply
source and the cord must be
readily available. Be sure the
training system does not
block access to the input
power cord.
1 120 Volt, 15 Amp AC
Grounded Receptacle
2 Input Power Cord
A 120 volt AC, 15 amp individual
branch circuit protected by fuses or
circuit breaker is required.
Select 14 AWG three−conductor
extension cord for distances up to
50 ft (15 m) or 12 AWG three−con-
ductor extension cord for distances
up 100 ft (30 m).
It is recommended not to use a
GFCI receptacle to power the
training system. If a GFCI re-
ceptacle must be used, do not
use an extension cord.
1
2
Ref. 268609-C
