OM-267357 Page 47
SECTION 12 − OPTIONAL SMAW MODULE OPERATION

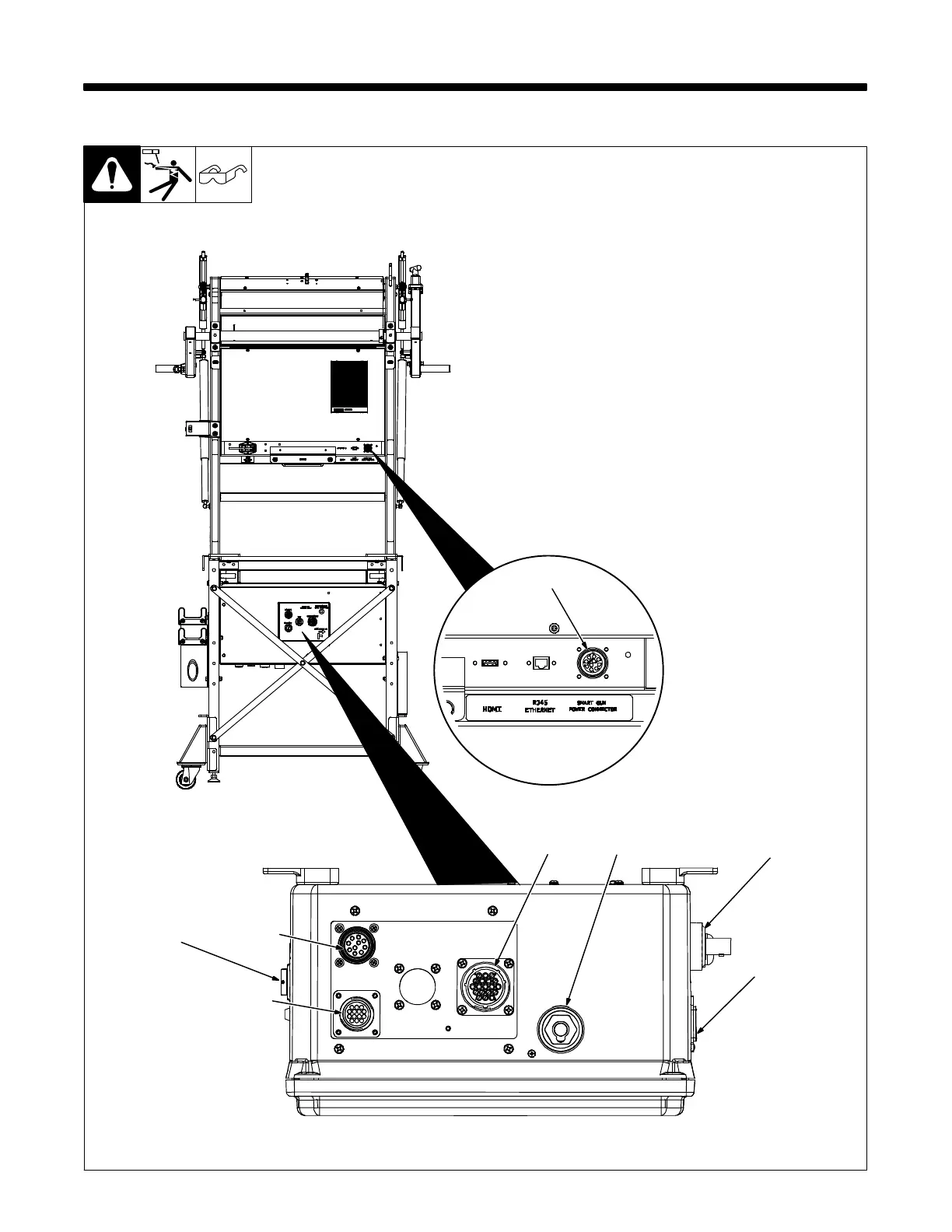

12-1. SMAW Router Box Connection Points
1 LiveArc Monitor
Communication Receptacle
2 Router Box To LiveArc
SmartGun Receptacle
3 Router Box Connection To Wire
Feeder
See Section 5-9 to connect Smart-
Gun to wire feeder.
4 SmartStinger Weld Power In
5 SmartStinger Weld Power Out
6 Router Box To SMAW Power
Source
See Section 12-2 for connection dia-
gram.
The SmartStinger is compatible
with Constant Current (CC)
welding power sources with a
Dinse 35 connector for DCEP
Stick welding.
7 Router Box Input Power
Connection
8 Router Box Power Switch
See Section 12-3 to connect input
power.
4
268609-C / 275484
2
5
Monitor Back
1
3
View from underside of router box
6
7
8
To Next Page
