Miller LiveArc - 7-2 C

OM-267357 Page 29
7-2C. Table Calibration
1. Close touchscreen cover to enable table calibration process. Remove any objects blocking markers on table. See Figure 7-7, Figure 7-8, and
Figure 7-9.
Corresponding
SmartGun Display

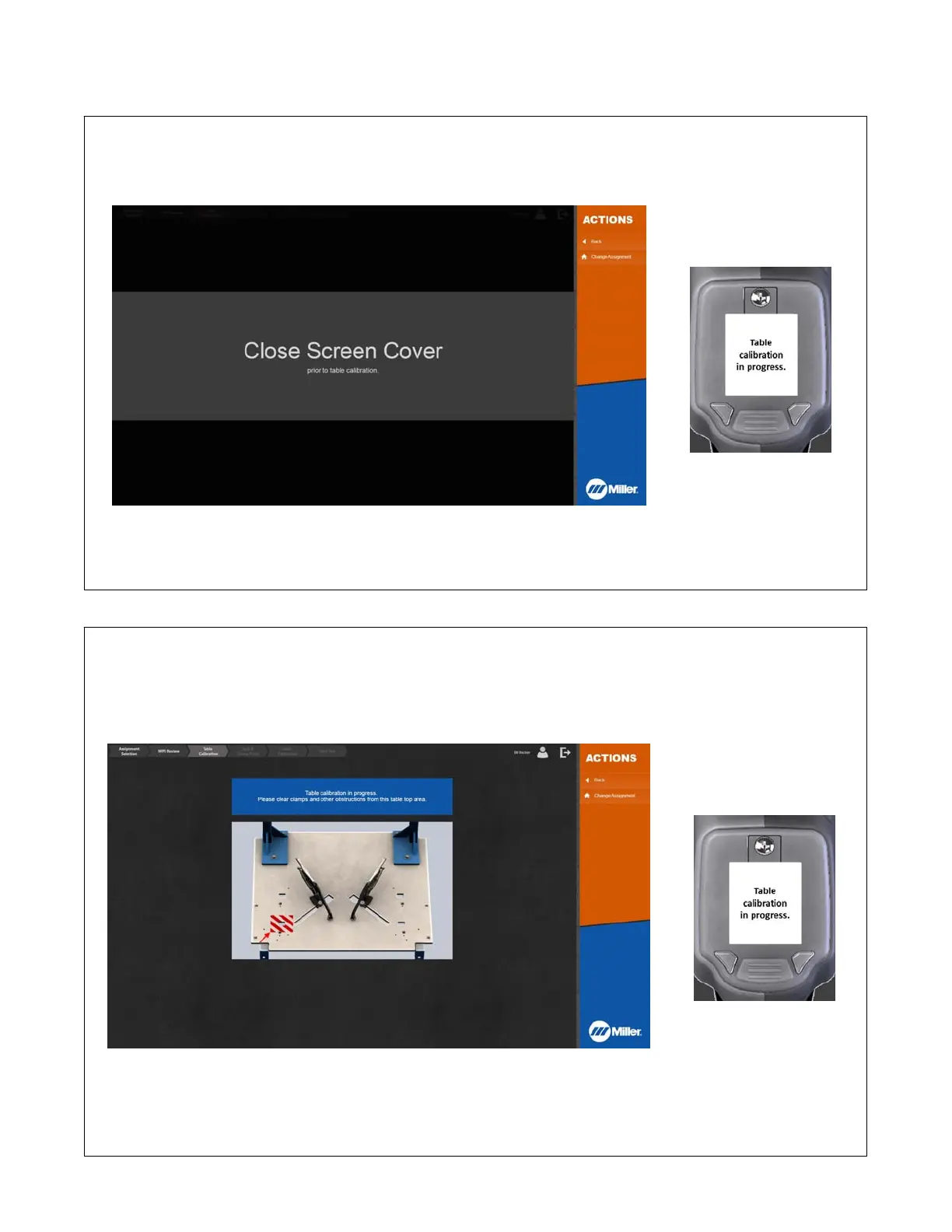

Figure 7-7. Close Cover To Begin Table Calibration
161-049
Corresponding
SmartGun Display
Figure 7-8. Example Of Message From Unsuccessful Table Calibration
