Miller LiveArc - Page 32

OM-267357 Page 28

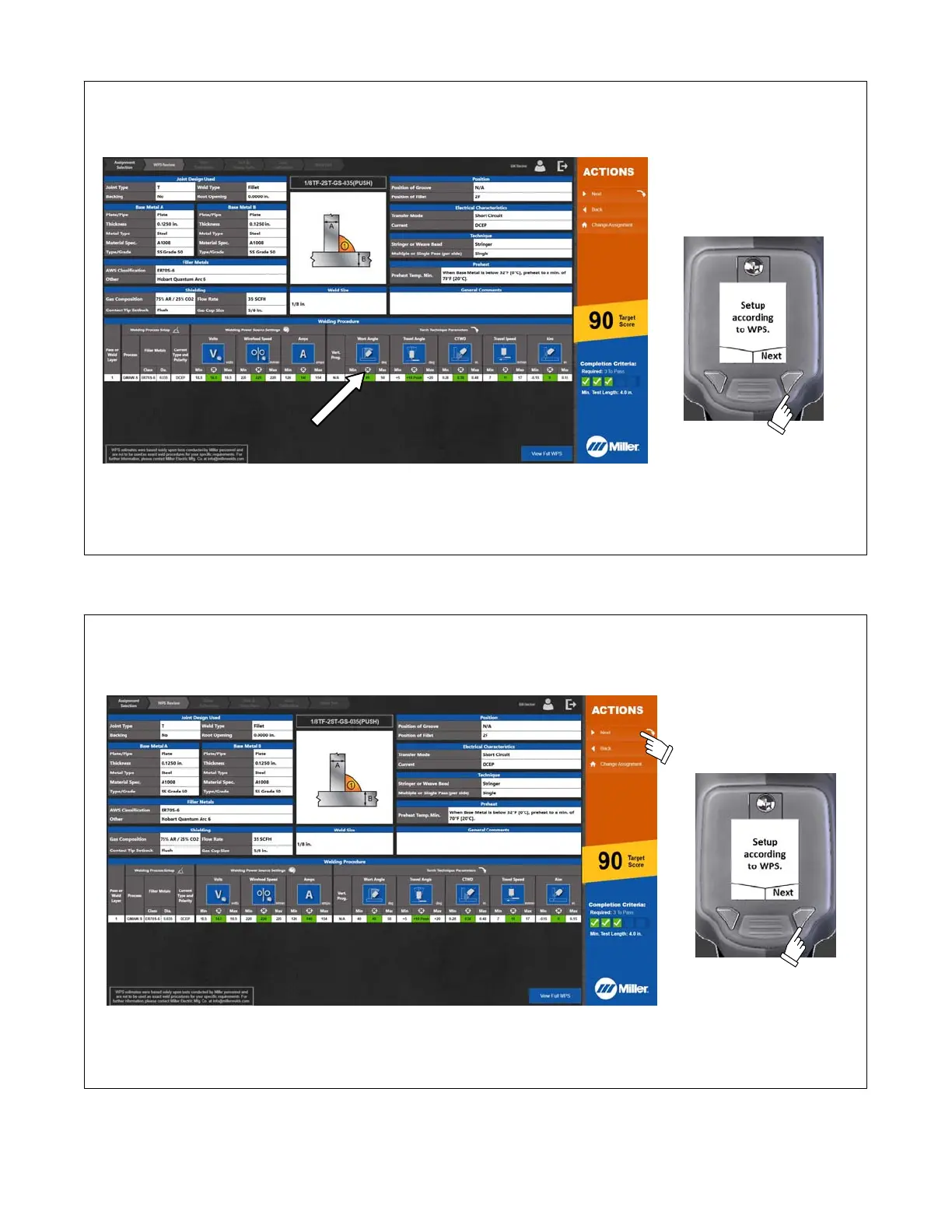

2. Review weld assignment specifications. See Figure 7-5.
Corresponding
SmartGun Display
Use button to
navigate LiveArc
screens.
 Screen shown is representative. Specific options may vary with weld process.
Figure 7-5. Welding Assignment Specifications
3. Select Next (to continue with assignment), Back (previous page), or Change Assignment (to select a new assignment). See Figure 7-6.
Corresponding
SmartGun Display
Use button to
navigate LiveArc
screens.
 Screen shown is representative. Specific options may vary with weld process.
Figure 7-6. Advancing To The Next/Prior Page Or Changing Assignment
