6.3.6.2 Calibration Procedure

Perform the following steps to calibrate the expiratory valve.

1. Enter the standby mode.

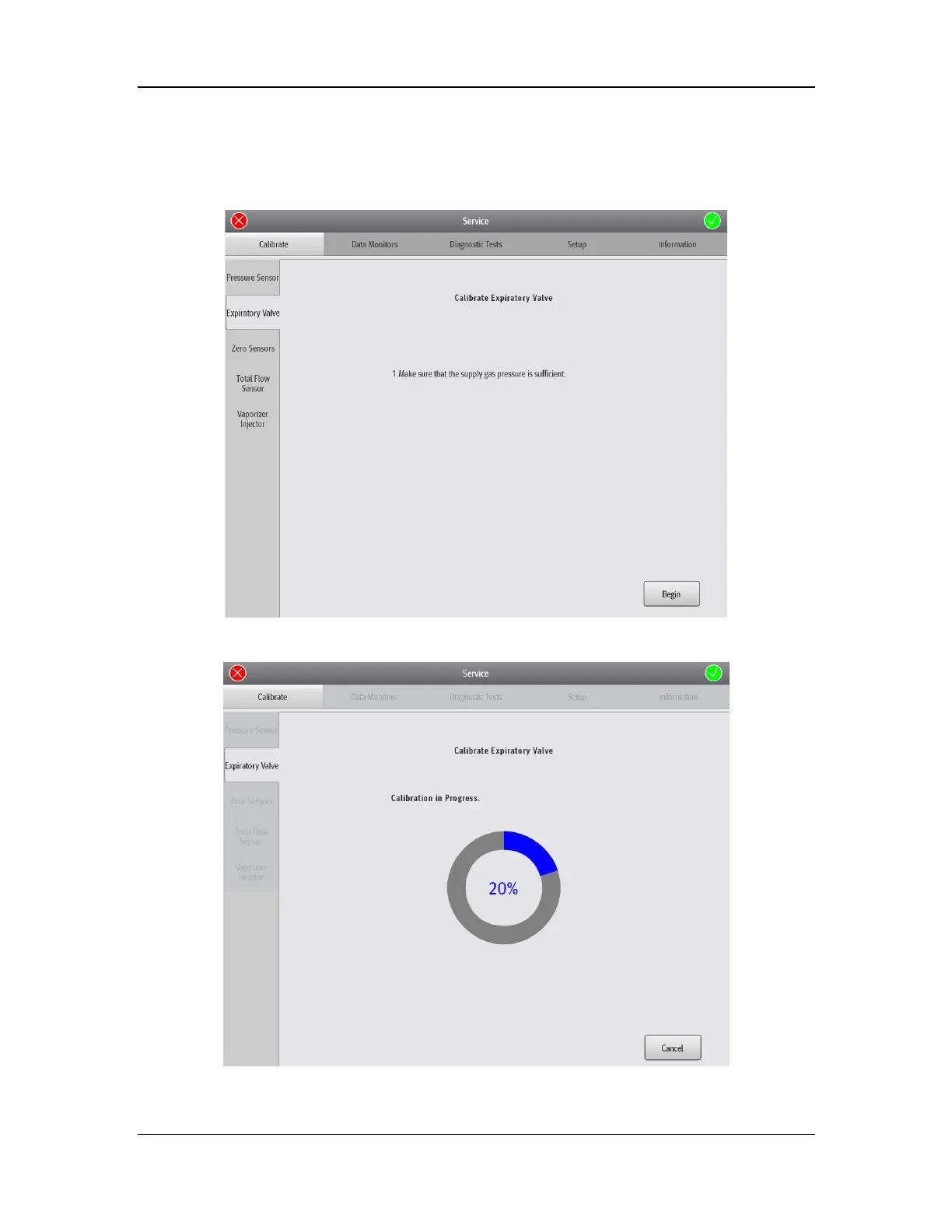

2. Select Setup > Service > Calibrate > Expiratory Valve to access the screen shown below.

3. Select Begin to start calibration. During calibration, you can select Cancel to abort the

calibration.
