Mindray A8 Service Manual

8-29
8.32 Disassemble the Lower Drawer Assembly
8.32.1 Prepare for Disassembly
8.32.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 Phillips screwdriver
8.32.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.32.2 Remove the Lower Drawer Assembly

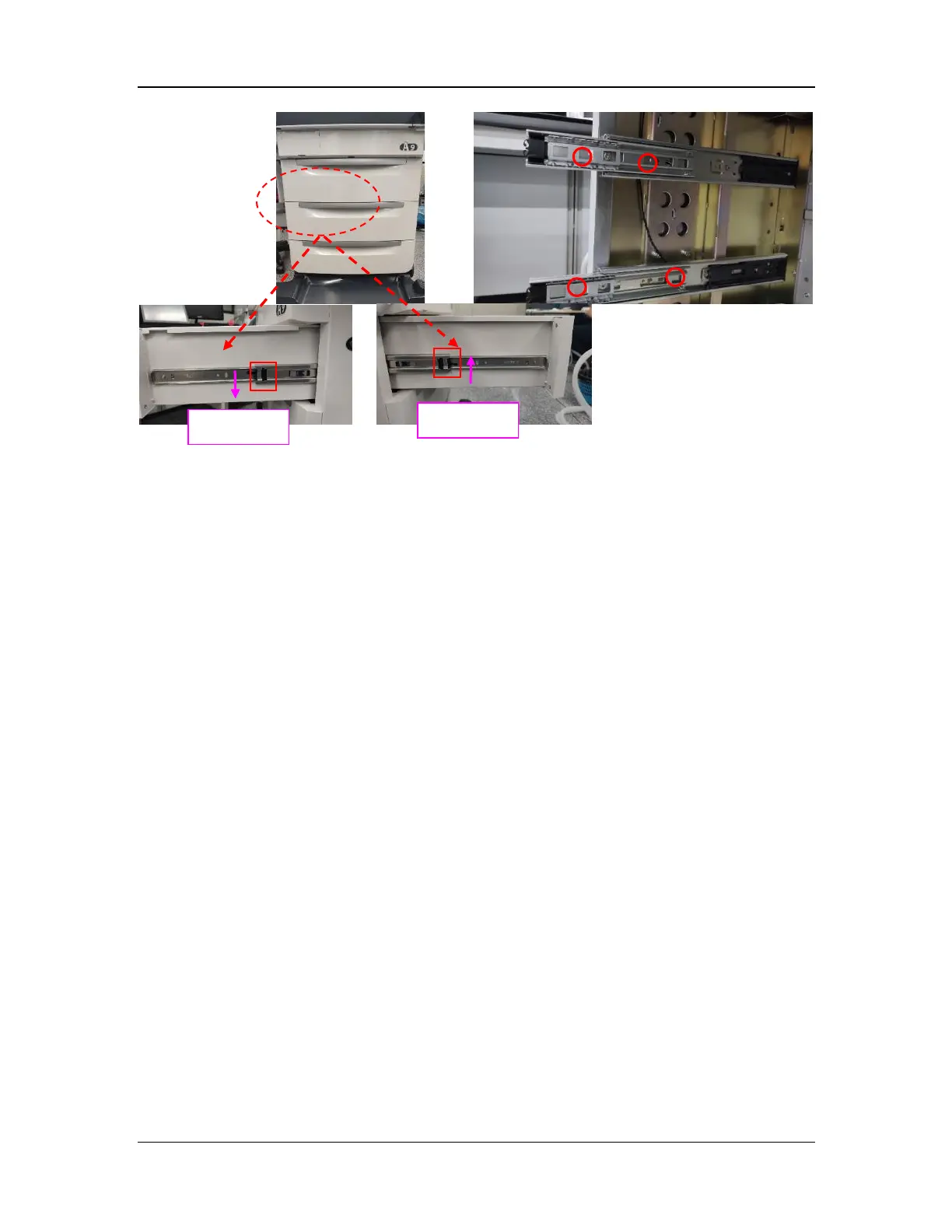

1. Pull out the drawer until the black locking pieces (marked by □ in the figure) on the rails can
be seen. (Note: The corners on both sides of the drawer are round.)
2. Lift the locking piece on the left rail of the drawer while pressing down on the locking piece
on the right rail.
3. Take out the drawer.
4. Remove the two screws from each of the left and right rails with the Phillips screwdriver to
remove the rails.
Right rail
Left rail
