8-33
8.36 Disassemble the Battery Box Assembly
8.36.1 Prepare for Disassembly
8.36.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
Phillips screwdriver
8.36.1.2 Preparations
Before disassembly,
Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
8.36.1.3 Pre-disassembly
1. Refer to 8.1.1Open the Service Door to open the service door.
2. Refer to 8.31Disassemble the Upper-Half Drawer Assembly and 8.32Disassemble the
Lower Drawer Assembly to remove the upper, middle, and lower drawers.
8.36.2 Remove the Battery Box Assembly

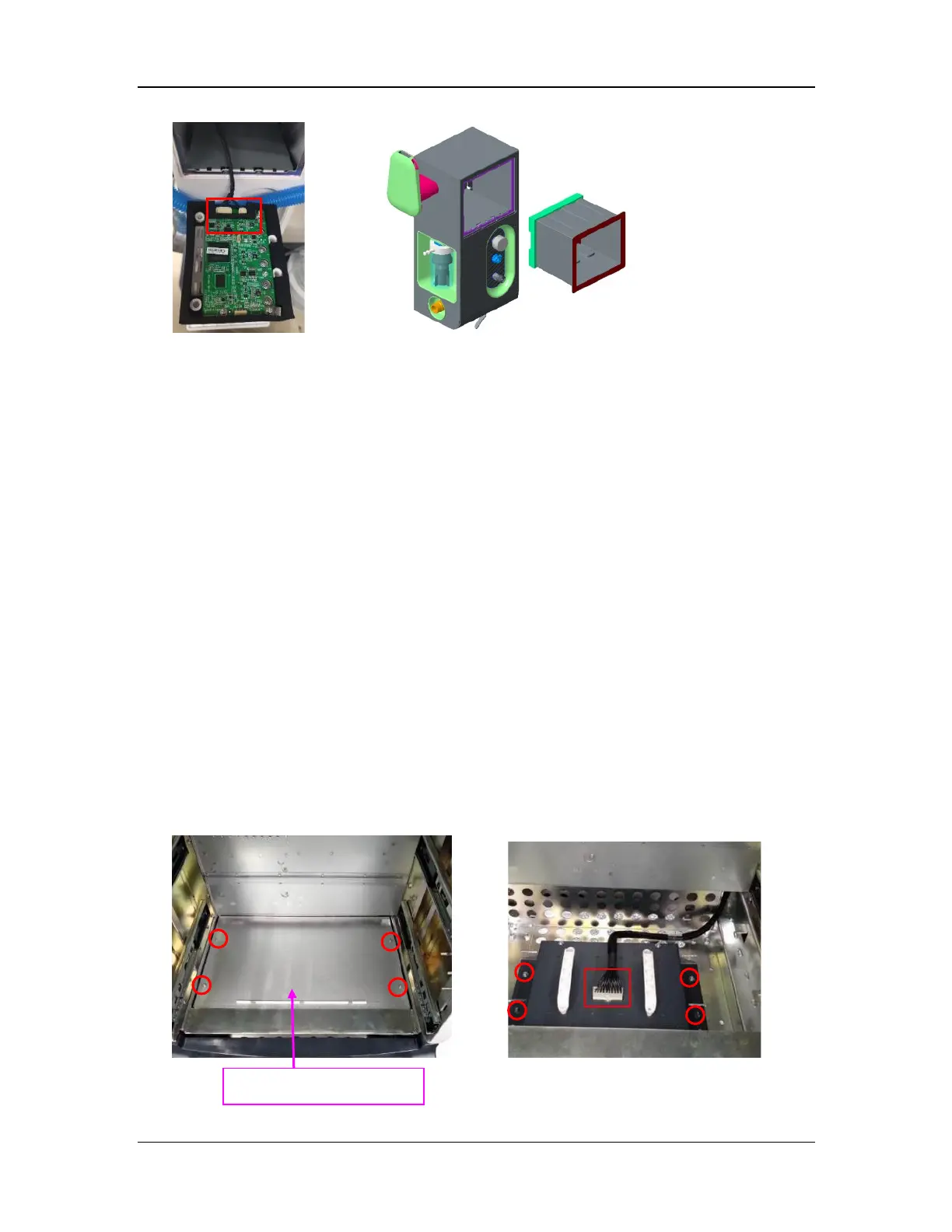

1. Remove the four screws from the battery box cover plate with the Phillips screwdriver to
remove the cover plate, as shown in Figure A.
2. Disconnect the cable (marked by □ in Figure B) from the battery box assembly.
3. Remove the four screws (marked by ○ in Figure B) with the Phillips screwdriver to remove
the battery box assembly.
Figure A Figure B
