8-62
4. Refer to 8.29Disassemble the VE Box Assembly to remove the VE box assembly.
5. Refer to 8.20Disassemble the Sodalime Absorber Canister Assembly to remove the Venturi
negative pressure control panel assembly.
6. Refer to 8.24Disassemble the APL Valve Assembly to remove the APL valve assembly.
7. Refer to 8.1.6Remove the Upper-Left Cover Plate to remove the upper-left cover plate
assembly of the work surface.

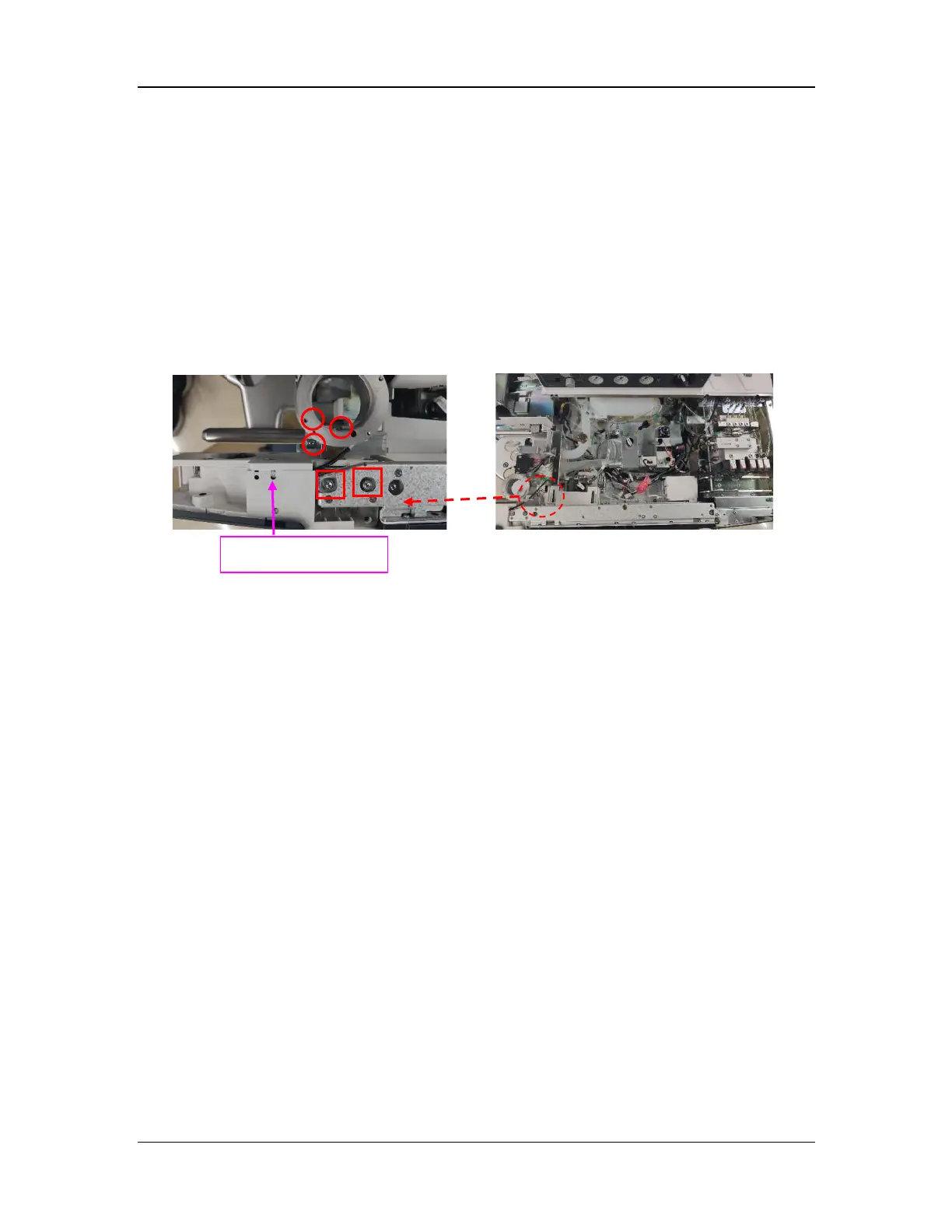

8.69.2 Remove the O2 Cell Door Cover Assembly
1. Disconnect the hose and cable from the O2 cell door cover assembly.
2. Remove the three screws (marked by ○ in the figure) with the Phillips screwdriver.
3. Remove the two screws (marked by □ in the figure) with the hexagon screw spanner to
remove the O2 cell door cover assembly.
8.70 Disassemble the O2 Cell Cable
8.70.1 Prepare for Disassembly
8.70.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 Phillips screwdriver
 M3 and M4 hexagon screw spanners
 Scissors
8.70.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Bleed down the gas pressure inside the anesthesia machine to avoid personal injury or
equipment damage.
 Disconnect all pipeline and cylinder gas supplies.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.70.1.3 Pre-disassembly
Refer to 8.68Disassemble the O2 Cell Door Cover Assembly to remove the O2 cell door cover
assembly.
8.70.2 Remove the O2 Cell Cable
1. Remove the two screws (marked by □ in the figure) with the M3 hexagon screw spanner and
the six screws (marked by ○ in the figure) with the Phillips screwdriver, and remove the
fixing plate.
O2 cell door cover
