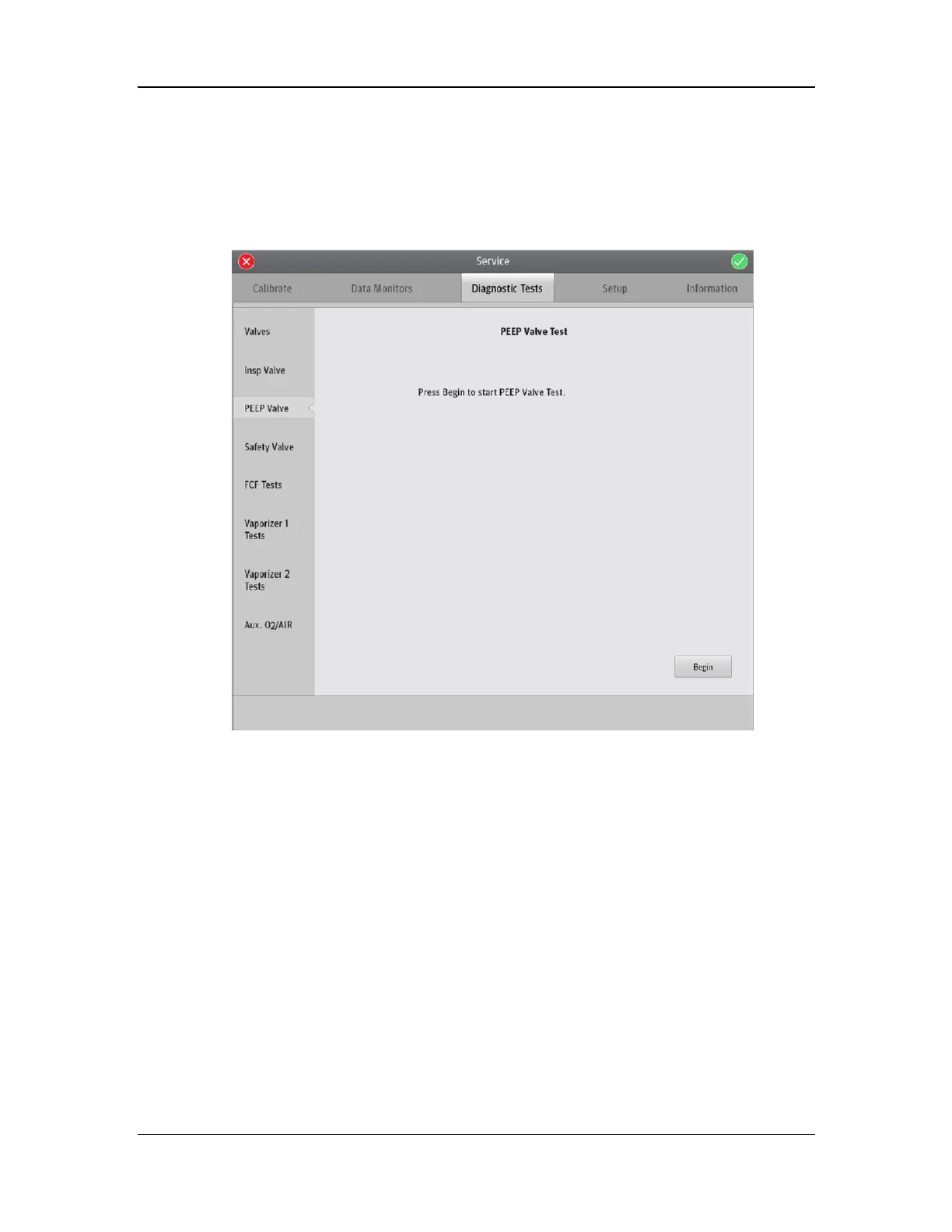

7.6.3 PEEP Valve Test

Check whether the supply voltage and feedback current of the valve are within normal range.

Select Setup > Service > Diagnostic Tests > PEEP Valve.
