Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
Bleed down the gas pressure inside the anesthesia machine to avoid personal injury or
equipment damage.
Disconnect all pipeline and cylinder gas supplies.
Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.5.1.3 Pre-disassembly
1. Refer to 8.19Disassemble the O2 Cell Holder Assembly to remove the O2 cell holder
assembly.
2. Refer to 8.20Disassemble the Sodalime Absorber Canister Assembly to remove the
sodalime absorber canister assembly.
3. Refer to 8.21Disassemble the Bypass Assembly to remove the bypass assembly.
8.5.2 Remove the Patient Circuit Assembly
1. Pull the patient circuit assembly away from the circuit adaptation block assembly.
2. Refer to 8.22Disassemble the Bag Arm Assembly to remove the bag arm assembly.
8.6 Disassemble the APL Valve Assembly
8.6.1 Prepare for Disassembly
8.6.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
None.
8.6.1.2 Preparations
Before disassembly,
Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.6.2 Remove the APL Valve Assembly

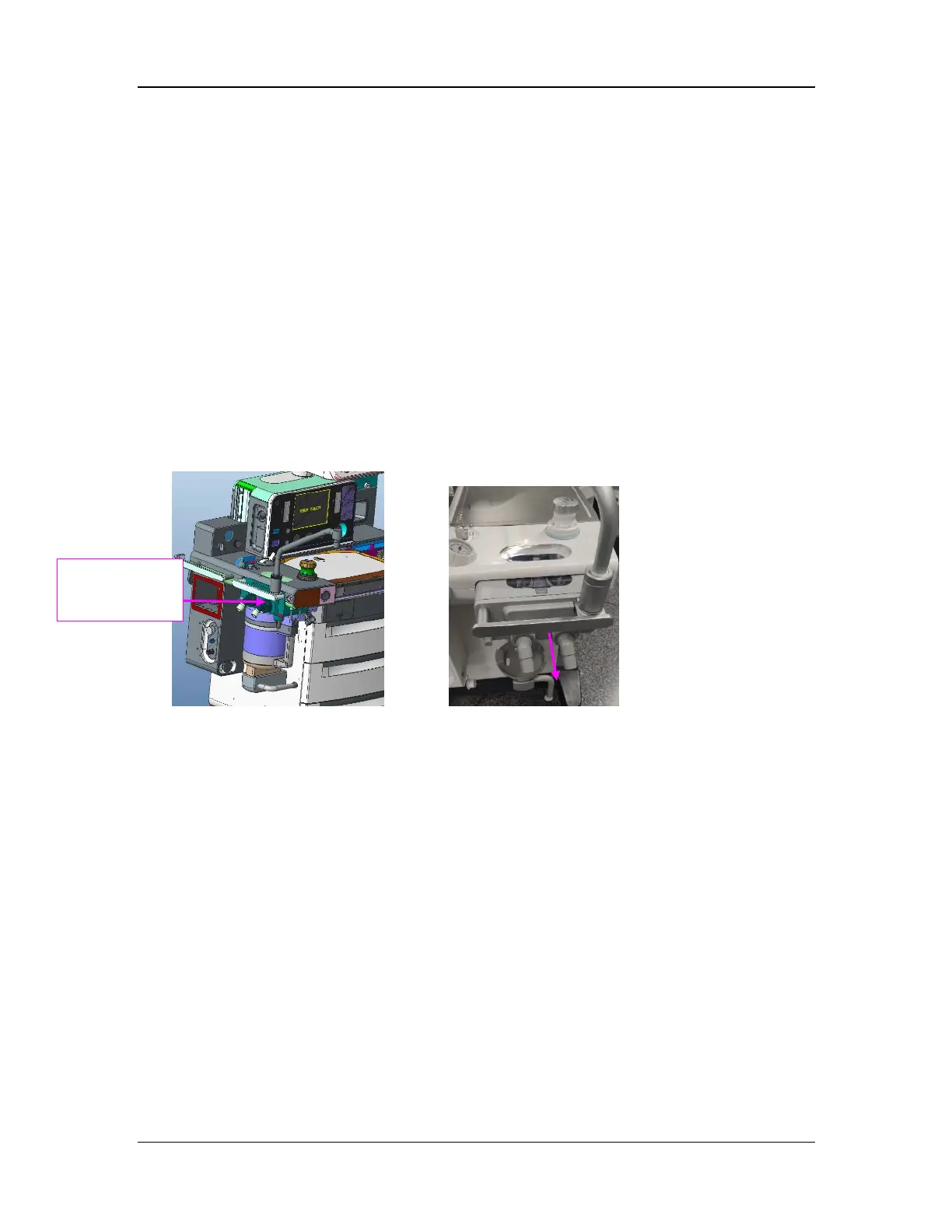

Turn the locking nut counterclockwise and pull the APL valve assembly straight up to remove it.
assembly
