Mindray A8 - Remove the VE Box Assembly; Disassemble the VE Mounting Box In-Position Switch; Prepare for Disassembly

8-8
8.11.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.11.1.3 Pre-disassembly
1. Refer to 8.1.4Remove the Work Surface Cover Plate FRU to remove the work surface
cover plate.
2. Refer to step 1 in 8.23.2Remove the Patient Circuit Assembly to remove the patient circuit.
3. Refer to 8.28Disassemble the Volume Exchanger Assembly to remove the volume
exchanger assembly.
8.11.2 Remove the VE Box Assembly

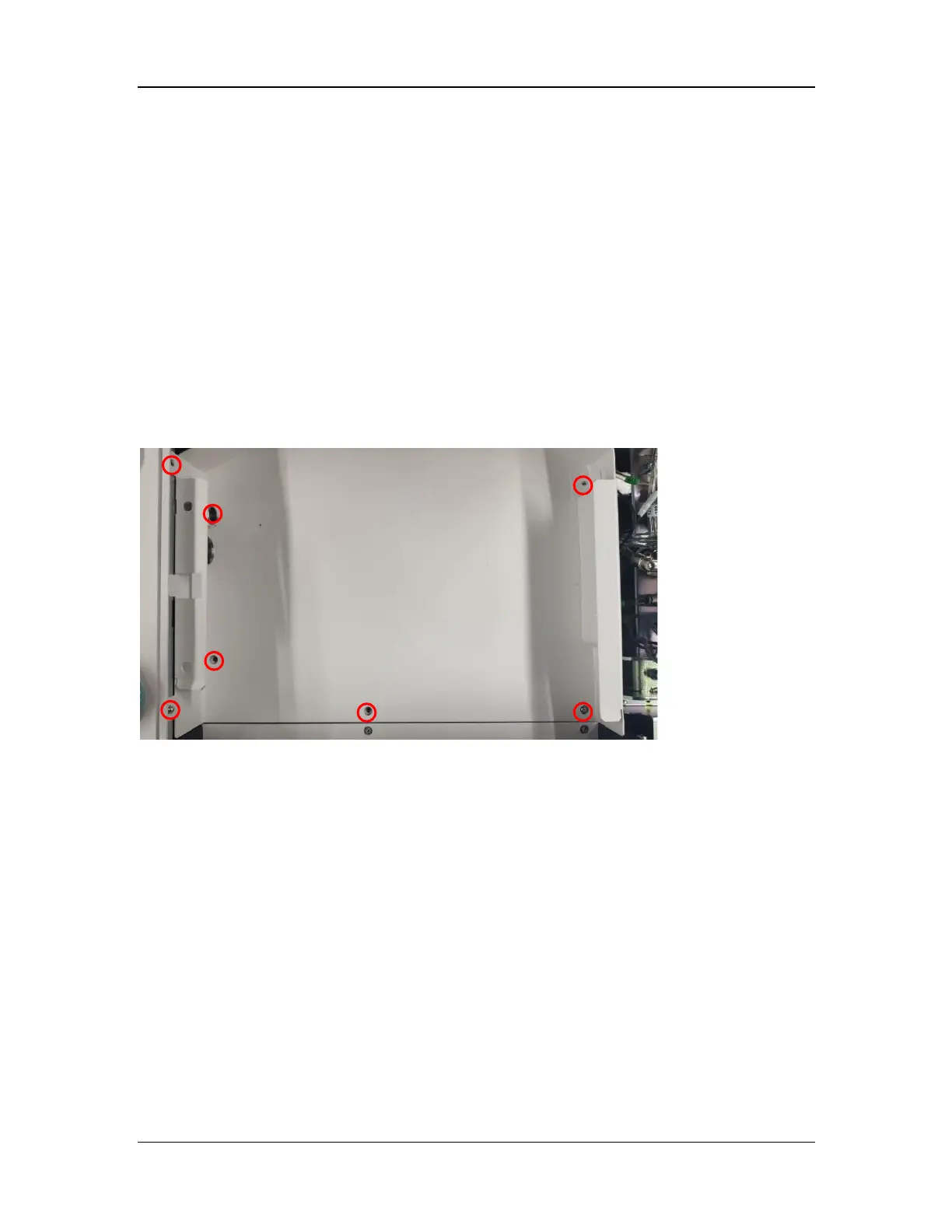

Remove the seven screws with the Phillips screwdriver, lift the VE box assembly, disconnect the
cables, and remove the VE box assembly.
8.12 Disassemble the VE Mounting Box In-Position Switch
8.12.1 Prepare for Disassembly
8.12.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 Phillips screwdriver
8.12.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.12.1.3 Pre-disassembly
Refer to 8.29Disassemble the VE Box Assembly to remove the VE box assembly.
