11-31

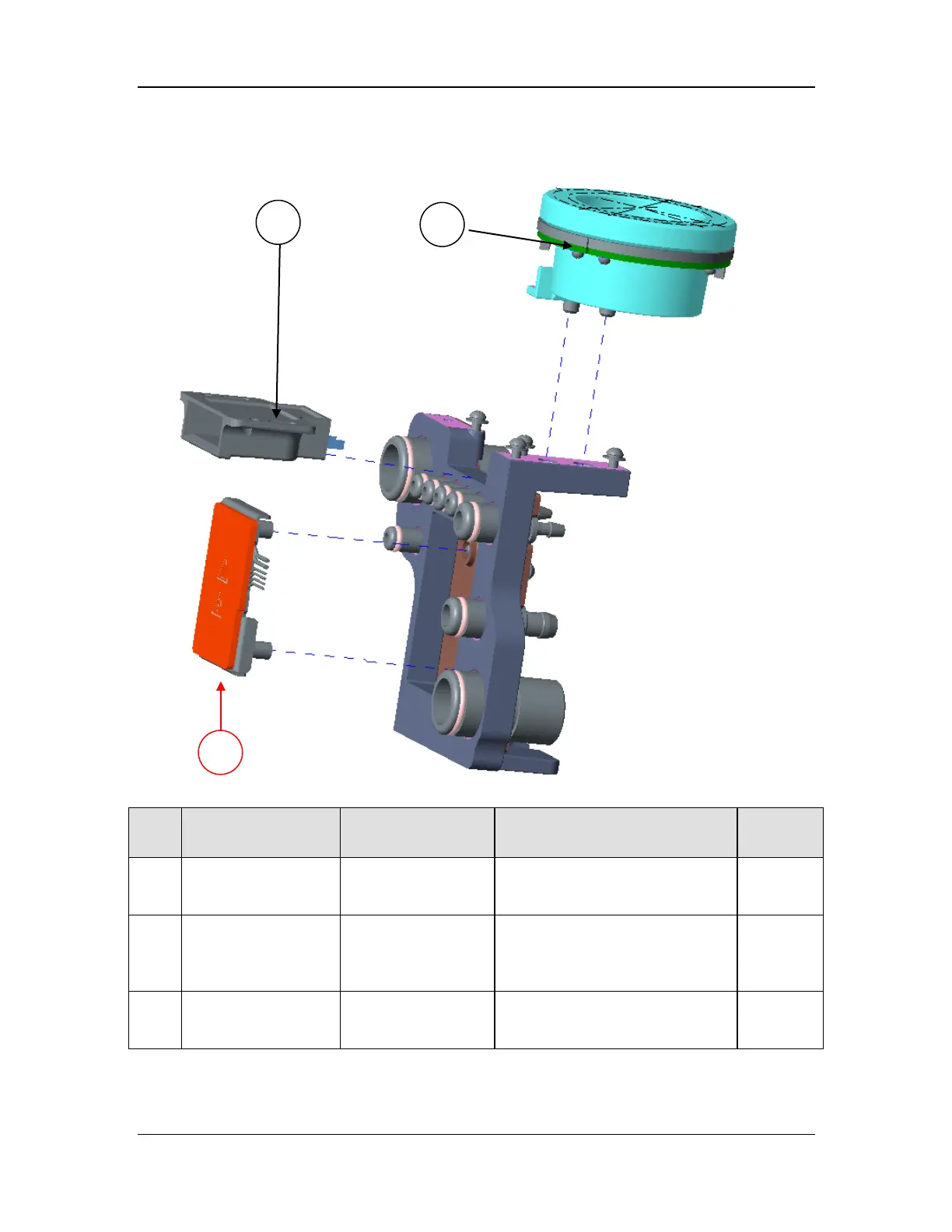

11.5.3 Circuit Connector Adapter Assembly

No. Name P/N

Test Item

After Replacement

Remarks

APL valve mounting

base assembly

115-064187-00

5.10.2 APL valve test;

5.7.1 Vaporizer Monitoring

Function Test

Circuit switch (hook

lock)

801-0613-00053-00

5.13.2 "Breathing Circuit Not

Installed" alarm test;

5.7.1 Vaporizer Monitoring

Function Test

Circuit heater service

part

024-001100-00

5.10.4 Patient circuit heating test;

5.7.1 Vaporizer Monitoring

Function Test
