7.5 After-Service Tests

Different test items are required after different troubleshooting. Perform tests based on the

requirements of each FRU described in 11 FRUs after troubleshooting.

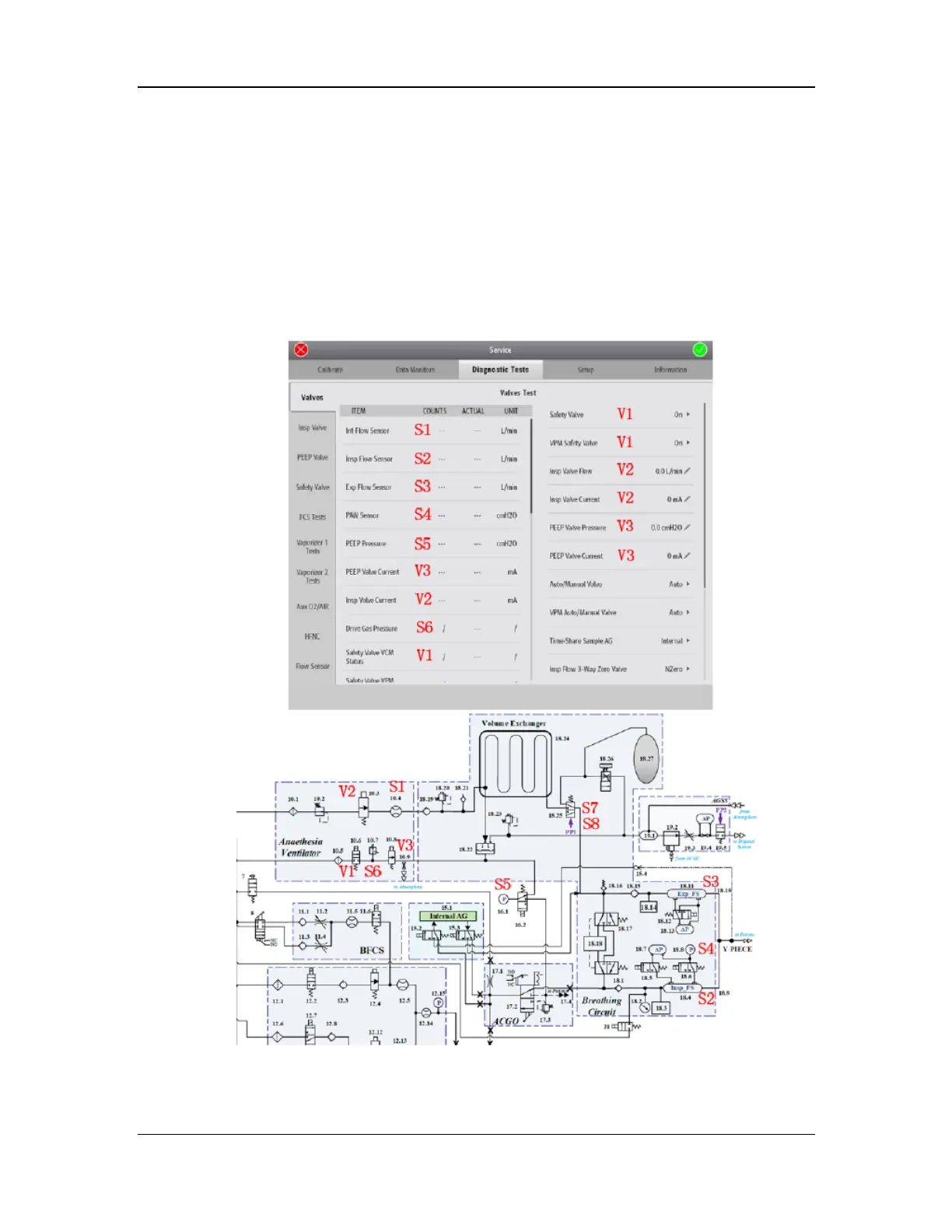

7.6 Diagnostic Tests

Select Setup > Service from the main screen and enter the service password to access the

Diagnostic Tests screen.
