7-62

7.6.2 Insp Valve Test

Check whether the supply voltage and feedback current of the valve are within normal range.

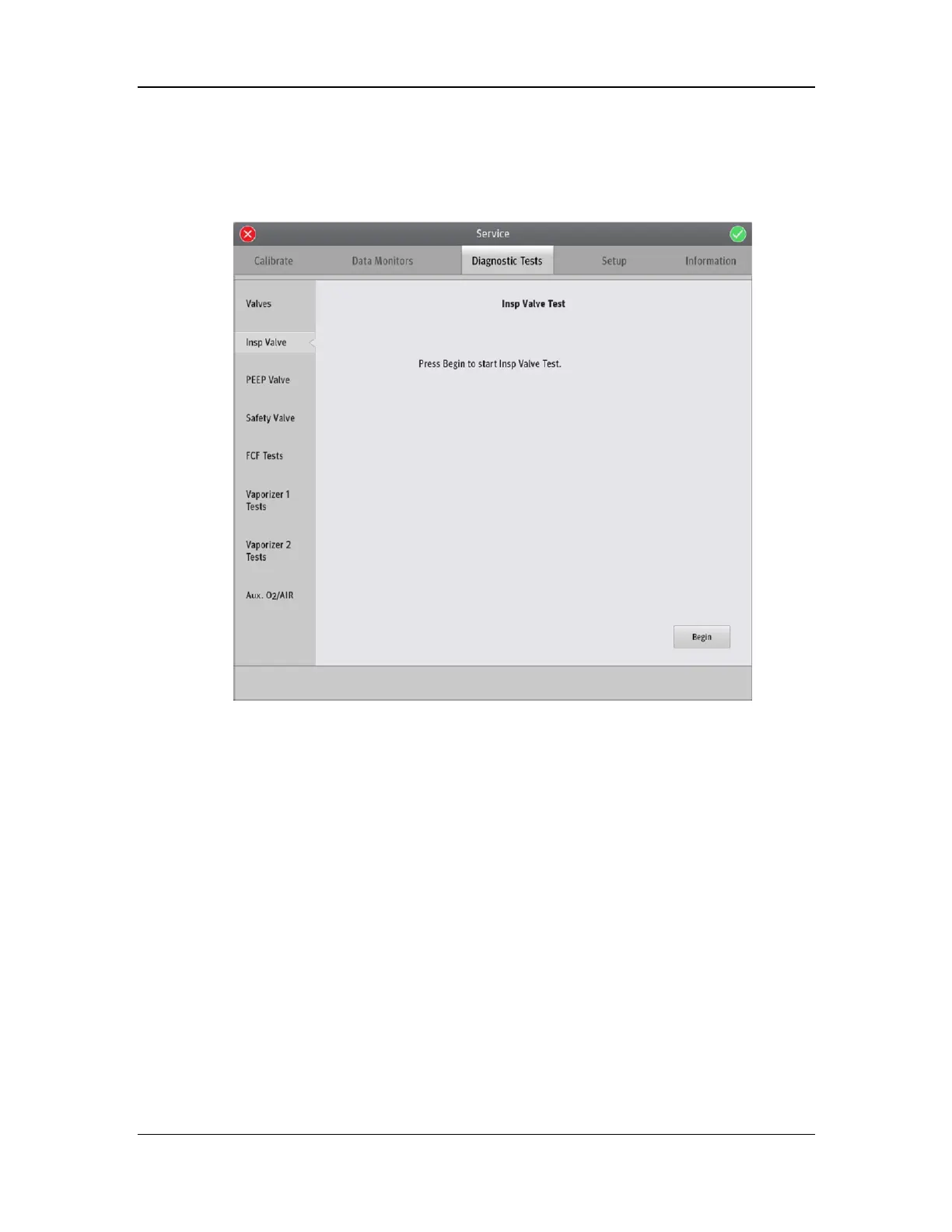

Select Setup > Service > Diagnostic Tests > Insp Valve.
