8.18 Disassemble the Monitoring Board
8.18.1 Prepare for Disassembly
8.18.1.1 Tools
During parts disassembly and replacement, the following tools may be required:
 Phillips screwdriver
8.18.1.2 Preparations
Before disassembly,
 Make sure that the anesthesia machine is turned off and disconnected from the A/C power
source.
 Maneuver the anesthesia machine to an appropriate location and then apply the brake.
8.18.1.3 Pre-disassembly
Refer to 8.1.1Open the Service Door to open the service door.
8.18.2 Remove the Monitoring Board

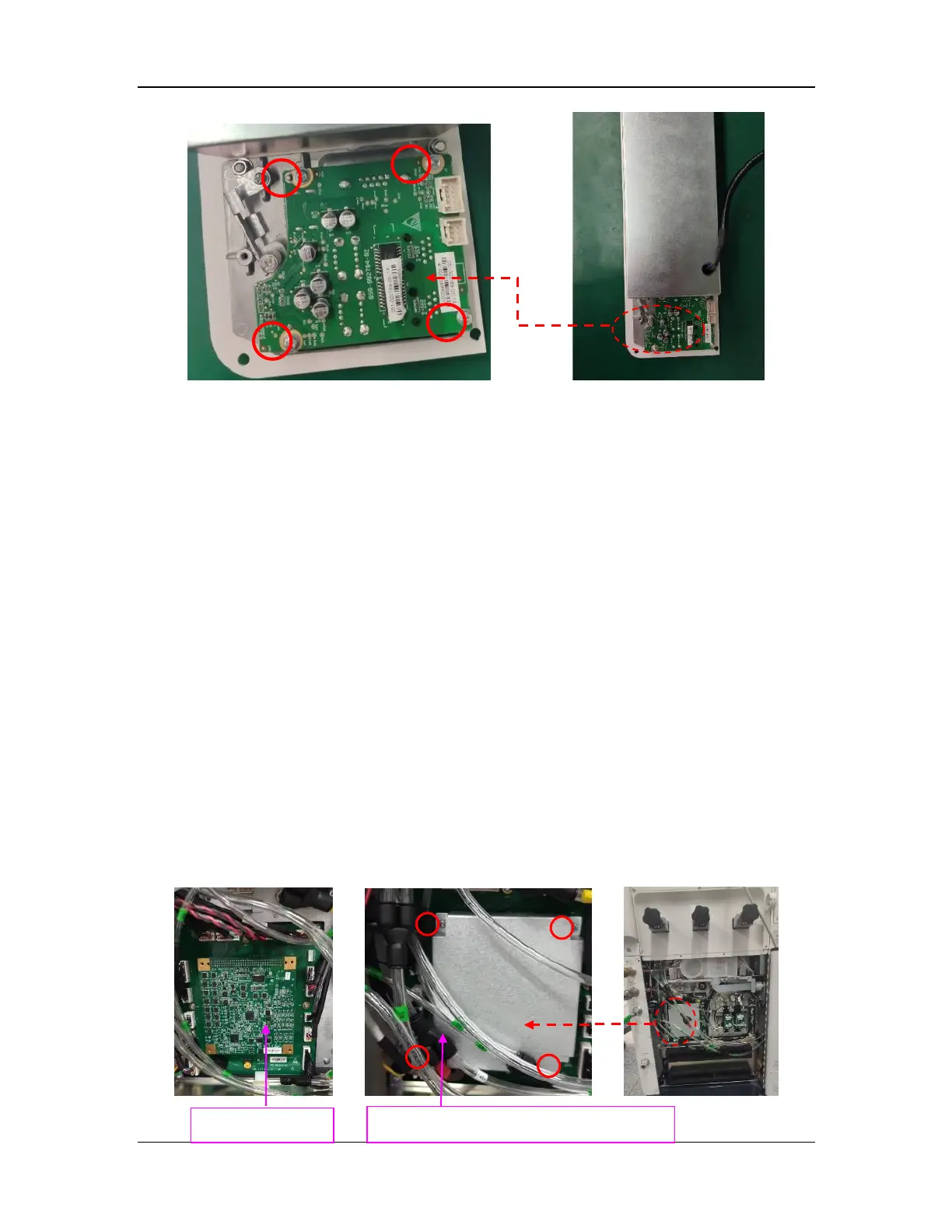

1. Remove the four screws from the protection cap of the monitoring board with the Phillips
screwdriver to remove the protection cap.
2. Horizontally and gently pull out the monitoring board.
Protection cap of the monitoring board
Monitoring board
